34 oz Silicone coated fiberglass cloth

Silicone coated fiberglass cloth, advanced coating fabric for welding, insulation, aerospace, automotive and petrochemical

Silicone coated fiberglass cloth, is based on fiberglass fabric, and impregnated with specially formulated silicone rubber. This silicone coating extended lifetime, offer great oil and water resistance, low smoke and flame retardation.



Fiberglass fabric can work continuously under 1200°F, but silicone coating is rated 500°F on a continuous basis.

34 oz silicone coating fabric is designed specifically for  high temperature removable pads, this product meets military spec MIL-I-224244.

And this fabric can be fabricated, die-cut and easy to sewn.



Silicone coated fiberglass cloth

Silicone coated fiberglass cloth



Advantage of silicone rubber coating fabric



By using a specially formulated wet or dry silicone rubber, and specialized weaved satin fiberglass fabric, ESONE silicone coated fabric and textile can not only offer superior heat protection, but also has exceptional durability and high resistance to abrasion and chemicals.



silicone coated glass fabric

silicone coated glass fabric



  Continuous working under 500°F
  Good chemical resistant
  Outstanding abrasion resistant
  UV/Environmental resistant
  Durability in severe environments
  Flexible for ease of use in pad fabrication
  Available in a variety of thicknesses and colors

Applications of silicone rubber fabric



Industrial applications of ESONE silicone/PTFE coating fabrics and textiles, including thermal insulation jackets, welding curtain, expansion joint, flame resistant curtains and so on.



Most of our standard Silicone coated fiberglass cloth is used in industries such as welding, insulation, aerospace, automotive and petrochemical. And our engineer will adjust the formula, or using special fabric like Kevlar®, Nomex®, Nylon, Carbon, aramid blends, in order to meet the request of customer in different industries.



Removable Insulation Jacket

Removable Insulation Jacket



It is the perfect solution for industry like following.



  Removable insulation blanket

  Welding curtains

  Expansion joints

  fire protection curtains

  anti-corrosion sector

  Equipment covers

  Safety clothing

  Shrink tunnels

  Foam manufacturing

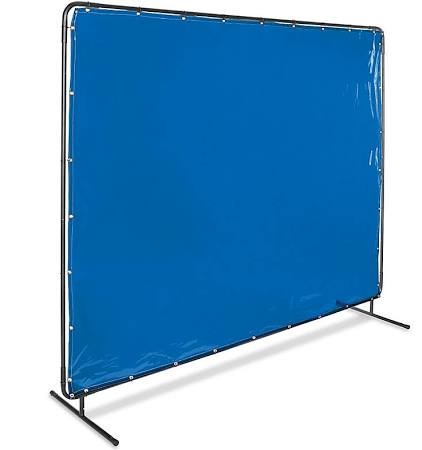

Welding curtain

Welding curtain



Technical Data Sheet of 34 oz Silicone coated fiberglass cloth



ProductProduct CategoryCoating
SILICONE RUBBER
COATED GLASS FABRIC
SILICONE BOTH SIDESILICONE RUBBER



34 oz Silicone Impregnated Fiberglass Fabric YS5075
PropertiesMetricImperial
Basic FabricSatin weaved fiberglassSatin weaved fiberglass
CoatingBoth sideBoth side
Standard width
Please ask for other widths
1500 mm60 inches
Coated Weight1156 g/m²34 oz/yd²
Thickness0.95 mm0.037 inches
Tensile strengthWarp 3400 N/5cm390 lbs/inches
Fill 3240 N/5cm370 lbs/inches
Mullen Burst525 N/cm²750 psi
Flame ResistantChar Length 2.54 cm maxChar Length 1 inch max
Afterglow 1 second maxAfterglow 1 second max
Flame Out 1 second maxFlame Out 1 second max
Temperature resistance-54°C to +260°C-67°F to +500°F
ColorGray/White/Yellow/Black/Red/SilverGray/White/Yellow/Black/Red/Silver



Click here to download the TDS of YS5095-34oz-ESONE

Click here to access 17 oz Silicone coated Glass Cloth, 17.5 oz silicone coated fabrics, 16.5 oz PTFE coated fabric, 18 oz PTFE fiberglass fabric.
