16.5 oz Anti static Teflon coated fabric

Anti static Teflon coated fabric, conductive material for Insulation jacket

Anti static Teflon coated fabric 16.5 oz,  coated with one side Fluorin(PTFE),  has high tensile strength, is UV resistant and Flame resistant.

This black Teflon coated fabric is the anti static (conductive) & heat resistant & Corrosion resistant solution for Insulation Jacket!



Applications of Fluorin coated series include wrapping insulation for pumps, filters, exchange, pipeline, valves, freeze protection and so on, it’s wraped outside the insulation blanket, as this fabric is anti-aging, anti-chemical and anti-environment.

Different color is used for different application, such as steam pipeline, oil pipeline or gas pipeline.

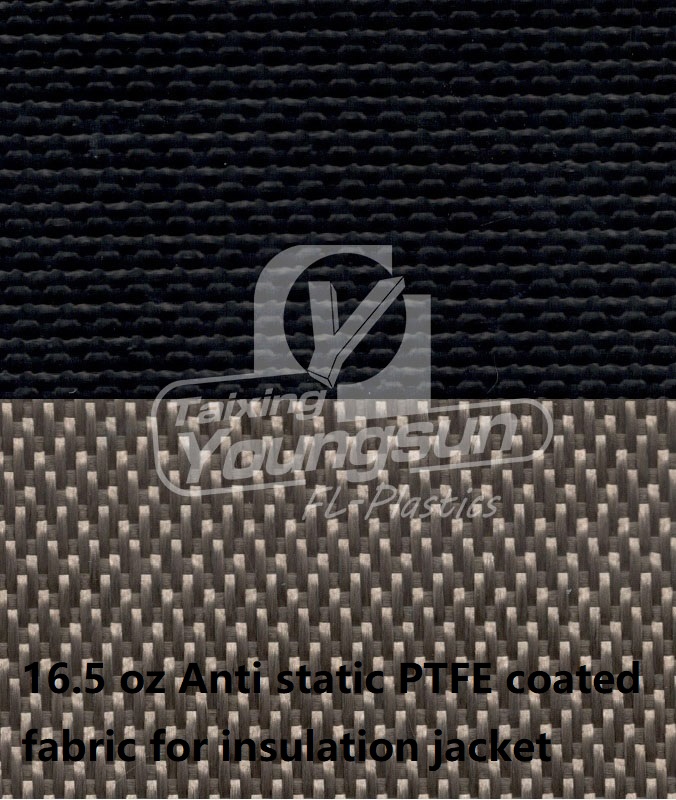

16.5 oz Anti static Teflon coated fabric

16.5 oz Anti static Teflon coated fabric



Description of Anti static Teflon coated fabric



This YS9038HS fiberglass fabric is impregnated with one side high quality PTFE(Teflon).

The high temperature resistant, flame retardant, Non-stick PTFE(Teflon) provides improved resistance to abrasion and corrosion, flexing and tear. And fiberglass ensure the high tensile strength of this product.



This product is used for high temperature (600°F) removable insulation jackets for valves, filter, exchanger, pump, piping, flanges and fittings.



One side PTFE impregnated fabric(Black Back)

One side PTFE impregnated fabric(Black Back)



Advantages of one side PTFE coated fabric



– Flame Resistant

– Environment Resistant

– Chemical Resistant

– UV Resistant

– Smokeless

– Non-stick surface, good self-cleaning



One side PTFE impregnated fabric(Brown Back)

One side PTFE impregnated fabric(Brown Back)



Spec of One Side PTFE impregnated Fabric YS9038HD



16.5 oz Anti static PTFE impregnated Fabric YS9038HS
PropertiesMetricImperial
Basic FabricSatin weaved fiberglassSatin weaved fiberglass
CoatingOne sideOne side
Surface resistance10^7 to 10^4 OHMS/m²10^7 to 10^4 OHMS/m²
Standard width
Please ask for other widths
1500 mm60 inches
Coated Weight560 g/m²16.5 oz/yd²
Thickness0.38 mm0.015 inches
Tensile strengthWarp 3572 N/5cm410 lbs/inches
Fill 2679 N/5cm350 lbs/inches
Mullen Burst455 N/cm²650 psi
Flame ResistantChar Length 2.54 cm maxChar Length 1 inch max
Afterglow 1 second maxAfterglow 1 second max
Flame Out 1 second maxFlame Out 1 second max
Temperature resistance-73 to +315 °C-100 to 600 °F
UV Resistance1000 hours; no change in tensile1000 hours; no change in tensile
ColorGray/White/Yellow/Black/RedGray/White/Yellow/Black/Red



Click here to download the spec of YS9038HS-ESONE



How to make Insulation jacket by One side PTFE impregnated fabrics



Operating at 600°F and up



Inside Jacket: Flat Stainless Steel Mesh
Outside Jacket: 16.5 oz One side PTFE Impregnated Fabric, or 18 oz Both side PTFE impregnated Fabrics.
Liner: 18oz Silica Fabric
Liner: Crimped .011 Stainless Steel Mesh
Insulation: E-Glass Fiberglass Fabric
Fastening: 1″ Straps and Stainless Steel D-Rings
Fastening: 3/16″ Braided Kevlar Drawstrings
Fastening: 12ga Stainless Steel Lace Hooks and Quilt Pins
Thread: Kevlar Thread



Applications of PTFE coated fiberglass fabric



Removable Insulation Jackets are designed for Pumps, filters, exchange, pipeline, valves, freeze protection and so on.



Removable Insulation Jacket

Removable Insulation Jacket



And different color is for different application, like Yellow insulation jacket is for Gas, Oil and Steam value, pumps and so on.



Thermal Insulation Blankets could also be used for making Antiseptic Insulation Tent, which could be used to store chemicals(especially for flammable and combustible chemicals), or easy-corrosive, hazardous article.



Insulation jacket

Insulation jacket

6 Comments

  1. Cynthia 2018年7月25日 at am8:12 - Reply

    Why need an anti-static PTFE fabric for insulation jacket?

    • Ms. PTFE 2018年7月25日 at am9:29 - Reply

      Hi Cynthia, thanks for your comment!
      This anti-static fabric can eliminate static electricity during operation, and offer excellent thermal conductivity to dissipate surface static.
      For some oil and gas industry, anti-static PTFE fabric will be needed.

  2. Sophia 2018年7月25日 at am8:16 - Reply

    This is the most popular spec in US, but I would like to know whether you have thicker PTFE fabric for insulation jacket?

  3. Ryan Brown 2018年8月5日 at pm2:12 - Reply

    Regarding the tensile strength, is there any difference between grey PTFE fabric and anti static PTFE fabric?

    • Ms. PTFE 2018年8月5日 at pm4:20 - Reply

      Hi Ryan Brown, thanks for your comment!
      You are professional! Yes, there is difference, and the tensile strength of grey PTFE fabric will be higher. Anyway, you can’t have your cake and eat it!
