Insulation Jacket

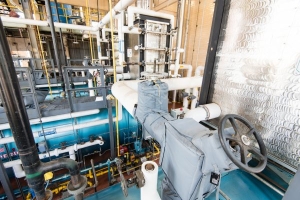

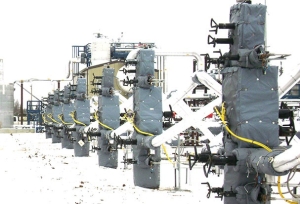

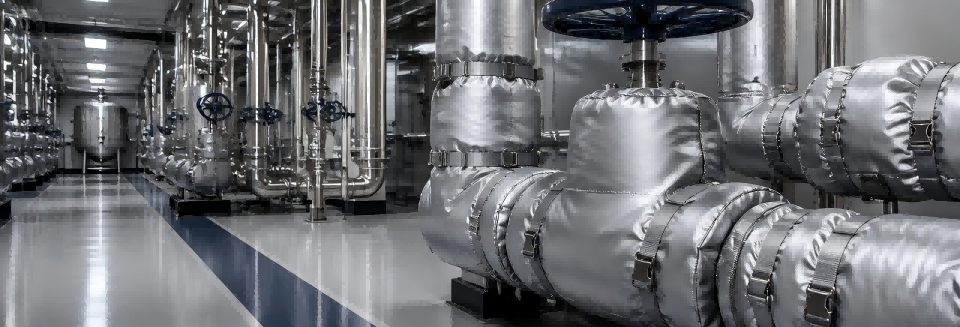

Insulation Jacket is designed to help customers save energy when traditional insulation is not practical, it is customized and wrapped outside pumps, filters, exchange, pipeline, valves, freeze protection and so on.

By using removable insulation blanket, customers can combine reducing heat loss, insulation design and wireless monitoring together.

Benefits of removable insulation jacket

  • Reducing cost of energy
  • Enable periodic maintenance
  • Prevent waste and excess cost of hard insulation
  • Extent the life of machinery
  • Improve safety of workshop

Product

  • PTFE fabric for Insulation Jacket

PTFE Fabric for Insulation Jacket is made with fluoropolymer coated glass fabrics, which is designed for removable insulation jackets / covers / blankets, this fabric is UV, chemical and flame resistant, has high tensile strength and can resist heat to 600F.

Comparing to silicone fabric, PTFE fabric can resist higher temperature to 600F, has stronger chemical resistance & anti-environmental property, and has self-cleaning surface.

ESONE is offering following spec.

  • Width: Maximum 1500mm, other width such as 1000mm is available
  • Weight: 16.5 oz/yd², 18 oz/yd², 34 oz/yd² and others
  • Property: Can be made with Anti-static
PTFE Fabric for Insulation Jacket
StyleCoatingStandard Width(mm)
Please ask for other widths
ColorWeight (oz/yd²)Working Temperature
YS9038HD-ESONEOne side1500Gray/White/Yellow16.5 (560 g/m²)-73 to +315 °C
YS9038HS-ESONEOne side1500Black Anti-static16.5 (560 g/m²)-73 to +315 °C
YS9040HD-ESONEBoth sides1500Gray/White/Yellow18 (650 g/m²)-73 to +315 °C
YS9086HD-ESONEOne side1500Gray/White/Yellow34 (1150 g/m²)-73 to +315 °C

Contact Info

Western end of south third ring road, Taixing, Jiangsu, China

Phone: +86 523 80721510

Mobile: +86 13901437262

Fax: +86 523 87593398

Web: PTFE Fabrics

YouTube video
  • Silicone fabric for Insulation Jacket

Silicone Fabric for Insulation Jacket is made of silicone coated fiberglass fabric, this fabric is flame, chemical, UV and environmental resistant, can resist heat to 500F.

Comparing to PTFE fabric, silicone fabric is cost effective and flexible, since the property of silicone fabric is quite enough for most of applications, so silicone fabric is used more frequently than PTFE fabric.

ESONE is offering following spec.

  • Width: Maximum 1500mm, other width such as 1000mm is available
  • Weight: 17 oz/yd², 17.5 oz/yd², 34 oz/yd² and others
  • Property: Can be made with cured or semi-vulcanized
Silicone Fabric for Insulation Jacket
StyleCoatingStandard Width(mm)
Please ask for other widths
ColorWeight (oz/yd²)Working Temperature
YS5038-17oz-ESONEBoth sides1500Silver/Gray/White/Yellow/Black/Red17 (580 g/m²)-73 to +260 °C
YS5045-17.5oz-ESONEBoth sides1500Silver/Gray/White/Yellow/Black/Red17.5 (595 g/m²)-73 to +260 °C
YS5095-34oz-ESONEBoth sides1500Silver/Gray/White/Yellow/Black/Red34 (1156 g/m²)-73 to +260 °C
YS5120RO-ESONEOne side1200Silver/Gray/White/Yellow/Black/Red45.7 (1550 g/m²)-73 to +260 °C
YS5200RO-ESONEOne side1200Silver/Gray/White/Yellow/Black/Red73.8 (2500 g/m²)-73 to +260 °C
  • High Silica Fabric

High silica fabrics manufactured by ESONE are used in demanding temperature applications throughout industrial insulation market.

It is specialized woven and coated with tan vermiculite compound. These fabrics can continuously operating under 1800°F(982°C) and has minimum 96% silica content, which are widely used for applications which both thermal protection and heat resistance are required.

ESONE is offering following spec.

  • Weight: 18 oz/yd², 21 oz/yd², 36 oz/yd², 70 oz/yd² and others
  • Width: 36” , 40” or 60” wide
  • Coating: ESONE can make it with Vermiculite coating

Fiberglass needled fabric (Temp mat) manufactured by ESONE is an effective low cost replacement for asbestos mats, millboard, ceramic or refractory fiber paper and others.

It is a fiberglass mat composed of 100% E glass fibers 9-13 microns in diameter which are put into web form and mechanically needles together without chemical binders. Temp mat is a thermal insulated and flexible fabric which can resist heat up to 1200°F.

ESONE is offering following spec.

  • ES1/4T:  1/4” thick, 9 lbs/cu.ft, 60” wide and 150 feet per roll
  • ES1/2T:  1/2” thick, 9 lbs/cu.ft, 60” wide and 75 feet per roll
  • ES3/4T:  3/4” thick, 9 lbs/cu.ft, 60” wide and 60 feet per roll
  • ES1T:      1” thick, 11 lbs/cu.ft, 60” wide and 45 feet per roll
  • Aluminized Glass Fabrics

Aluminized glass fabrics manufactured by ESONE is specifically designed as shipboard lagging and jacketing material for use over insulation where the surface temperature is under 500°F.

It is laminated to aluminum foil to provide a vapor barrier. These fabrics are used for removable blankets, fitting, pipe wrapping, turbine blankets, flange covers and engine exhaust pipes.

ESONE is offering following spec.

  • Weight:  12 oz/sqyd, 19.5 oz/sqyd, 22 oz/sqyd and others
  • Color: Tan/Aluminum
  • Vermiculite Coated Fabrics

Vermiculite coated fabrics manufactured by ESONE is an effective flame and heat resistant barrier.

It is woven from E-Glass fibers and coated with vermiculite based film, has superior physical property and serviced temperature of 1500°F, even under direct flame, these fabrics are odorless and virtually smokeless.

ESONE is offering following spec.

  • Weight:  18 oz/sqyd, 24 oz/sqyd and others
  • Color: Gold
  • Width: 60” wide
