PTFE coated Kevlar fabrics

PTFE coated Kevlar fabrics, excellent mechanical property

PTFE coated Kevlar fabrics is made with Aramid fiber weaved fabric and coated with high quality PTFE, which is designed for tough environment like heavy conveyor belting, drying belts, wood pressing and laminating, release sheet in carbon fiber gasket and so on.

These applications has high request of the life time and tensile strength, and PTFE coated Kevlar fabrics will be the reliable material, reducing the off line time for the production lines and ensuring the quality of final product.



PTFE Coated Kevlar Fabrics

PTFE Coated Kevlar Fabrics



PTFE Coated Kevlar Fabrics Series



This fireproof cloth is made with high intensity Kevlar fiber (Dupont’s trade name given for Aramid fiber), and coated with PTFE resin by advanced equipment. Kevlar fabric or Kevlar open mesh fabric coated with PTFE is available.

This high performance fabric has excellent mechanical property, much higher tensile strength and longer life time than PTFE coated fiberglass fabric, especially in the working environment which exposed to water, steam and so on, which will reduce the life of PTFE coated glass fabric.

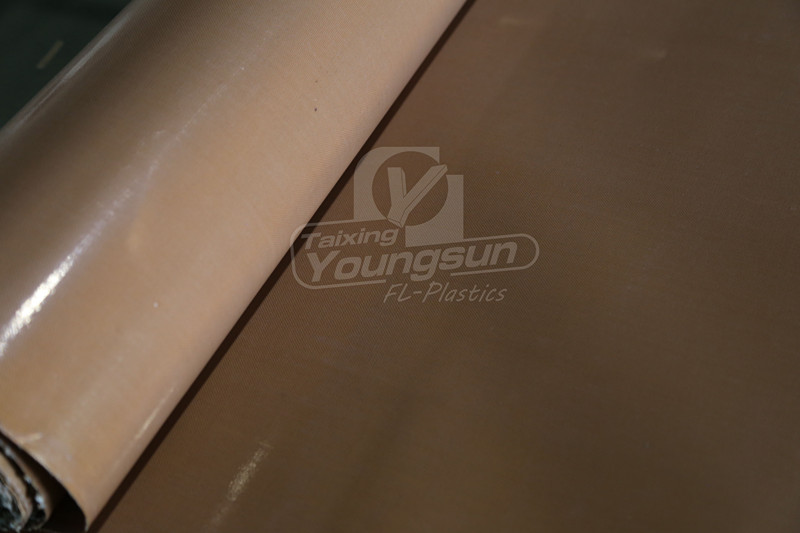

PTFE coated Kevlar fabric

PTFE coated Kevlar fabric



Applications of PTFE coated Aramid fabrics



PTFE coated Kevlar fabric has a yellow color rather than the brown color of PTFE fiberglass.

For the mesh, 4mm by 4mm square mesh size, Kevlar yarns in the warp direction, fiberglass in the weft direction is common for PTFE coated kevlar conveyor belting, 0.40mm thick solid fabric is normal size for PTFE heavy kevlar belts.

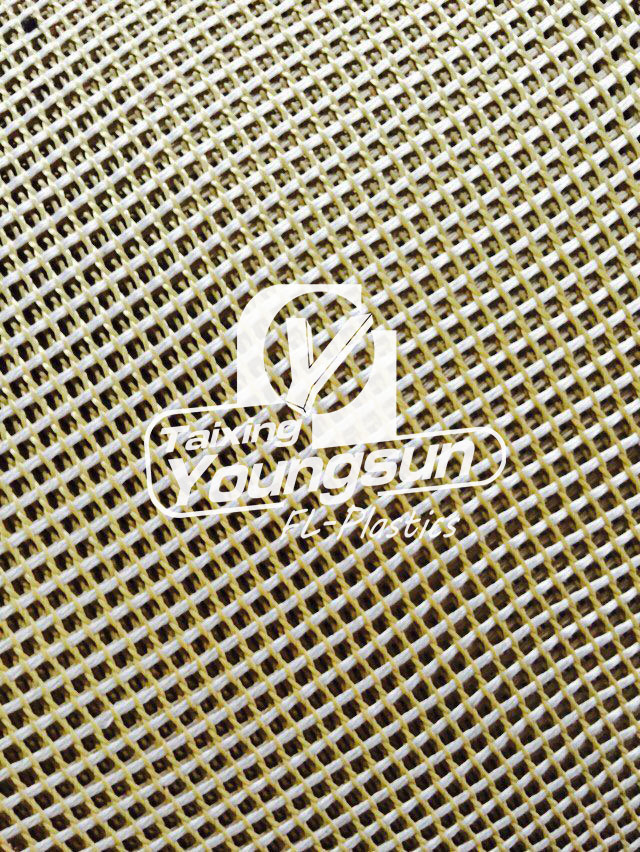

PTFE coated half Kevlar, half fiberglass fabric

PTFE coated half Kevlar, half fiberglass fabric



And PTFE coated Aramid fabric is also used for edge sealing for conveyor belts. It will protect the belts very well than normal PTFE film sealing.

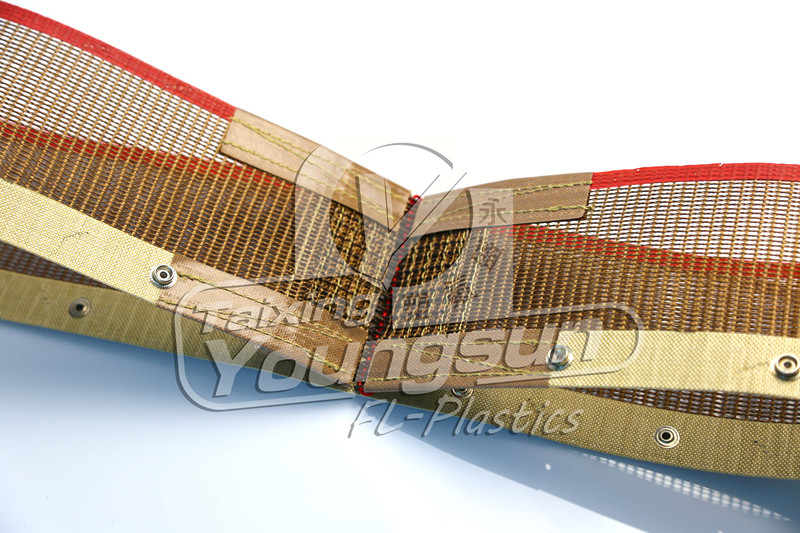

The edge of Teflon conveyor belt is reinforced by PTFE coated Kevlar fabrics

The edge of Teflon conveyor belt is reinforced by PTFE coated Kevlar fabrics



Bullnose joint is made of PTFE coated Aramid fabrics, it connect the two ends of conveyor belts strongly, which is the most important part related to the life time directly.

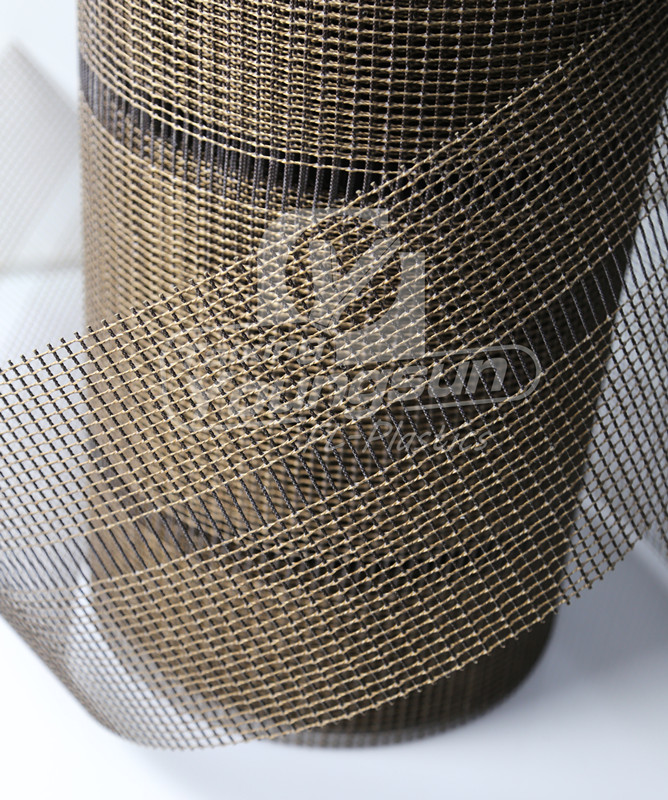

Kevlar Bullnose joint

Kevlar Bullnose joint



PTFE coated Kevlar Fabrics can be made into Anti static according to the needs of the applications.



Property of PTFE coated Aramid fiber fabrics



  Superior non-stick surface, easy to release and clean
  Fireproof
  Perfect solution for tough environment transportation.
  Outstanding temperature resistance (continuous working from -70°C to +220°C)
  Non-toxic and compliant for food applications, FDA & LFGB certificated
  Strong resistance to almost all chemicals
  Excellent dimensional stability and super strong tensile strength
  Resistance to microwaves, UVs and IRs and HF.
  Can be made into Anti static (conductive).



Specification of PTFE coated Kevlar fiber fabric

ProductProduct CategoryCoating
PTFE GLASS FABRICKEVLAR SERIESPTFE
PTFE Fabric Kevlar Series
StyleStandard Width(mm)
Please ask for other widths
Normal Thickness
(mm)
Weight
(g/m2)
PTFE Content
(%)
Tensile Strength
Warp/Fill (N/cm)
YS9013AK1000, 12500.13mm19050400/365
YS9013BK1000, 12500.13mm19050400/365
YS9022AK10000.22mm35069570/500
YS9040AK-ESONE14000.40mm66058445/395
