Teflon Belt YS6004

Teflon Belt from ESONE, long lasting and perform well in high temperature

Teflon Belt is impregnated with PTFE(also called Teflon) resin, it is available in brown or black color, max width can reach 4.05m wide. To enhance the tracking and belt life, ESONE offers various styles of edging reinforcement and splices in order to match customer’s applications.

The mesh size of YS6004 is 4x4mm, the weft construction is single weft.

Another mesh size ranging from 1×1, 2×2.5, 2×4, 5×5, 8×8 to 10×10 is available, and the construction of open mesh fabric can be fiberglass, Kevlar or Nomex, the construction of weaving way can be double weft or single weft.

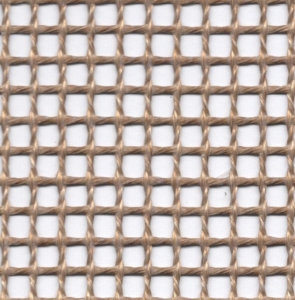

Teflon Belt YS6004

Teflon Belt YS6004



Properties of Teflon Belt



  Controlled porosity, different mesh size from 1mm to 10mm could be made

  Resist almost all chemical, such as corrective agent and others

  Operating temperature range from -70 to 260 degrees

  Superior non-stick surface, easy to clean and release

  Any sizes could be made, the maximum width is 4m

  Exceptional strength and dimensional stability.

  Food grade, can touch food directly

  Light weight, easy to install

  Resist to UV, IR and HF

  High dielectric strength

  Could be Anti-static



Technical Data Sheet of PTFE conveyor belt YS6004



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIEPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 2050, 2500,2750, 3200, 3350,3600, 4000 mm39.5, 59, 81, 98.4,110, 126, 132,142, 158 inches
Mesh Size4 x 4 mm0.1574 x 0.1574 inches
Weight460 g/m²13.57 oz/yd²
WeftSingle weftSingle weft
Tensile Strength320 N/cm Warp183 lbs/inches Warp
434 N/cm Fill248 lbs/inches Fill
ColorBrownBrown
Temperature Resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS6004-ESONE



For samples of Teflon Belt, please feel free to contact us.

Other specification is also available, you can contact us for more information.

Teflon Belt

Teflon Belt is impregnated with PTFE(also called Teflon) resin, it is available in brown or black color, max width can reach 4.05m wide. To enhance the tracking and belt life, Youngsun offers various styles of edging,

Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.



Applications of PTFE coated mesh YS6004



  PTFE Grill Mesh

Due to the non stick property of PTFE coated mesh, YS6004 is widely used as grill mesh for home use or commercial use. By using ESONE YS6004, food will be crispy as heat air can pass through Teflon mesh.

And thanks to the non stick surface of Teflon net, this grill mesh is very easy to clean and dishwasher safe.

BBQ Grill Mesh

BBQ Grill Mesh



  Laminated glass manufacturing

ESONE high quality PTFE open mesh fabric is used as the release liner for laminated glass manufacturing.

The reason why use Teflon mesh is as follows.

1)  PTFE open mesh fabric is non stick

2)  Teflon net is porosity, the production can be vacuumized easily.

3)  Mesh PTFE fabric has high mechanical strength, has long lifetime.

Laminated glass vacuum bag

Laminated glass vacuum bag



  Drying belt

Drying belt is the most common applications for PTFE mesh fabric, Teflon belt can be easily found in food packaging, seafood processing, screen printing, non woven manufacturing and many other applications.



ESONE Teflon mesh belt for drying

ESONE Teflon mesh belt for drying
