Application in the Magnet Industry

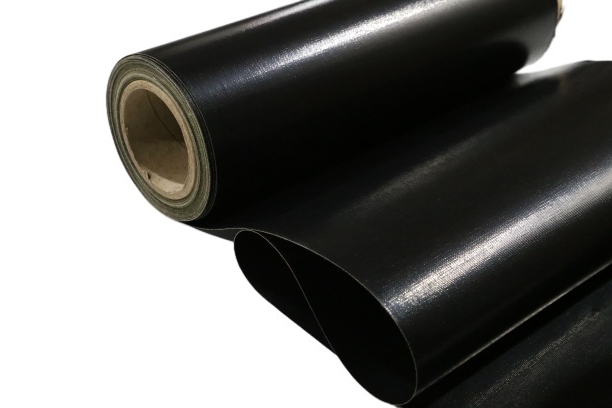

In the production of permanent magnets, PTFE‑coated Kevlar fabric is widely used to manufacture conveyor belts for magnetic separation processes.

During magnetic separation, mixed powders containing both magnetic and non‑magnetic particles are transported across magnetic rollers. The black antistatic PTFE‑coated aramid conveyor belts provide:

• A durable, high‑strength base to carry fine powders without stretching.
• A non‑magnetic, PTFE surface that does not interfere with magnetic fields.
• An antistatic finish to minimize static buildup during fine powder handling.
• An easy‑to‑clean, non‑stick surface that prevents powder accumulation and cross‑contamination.

Why PTFE Coated Kevlar Belt?

In the magnetic separation stage:

• Mixed powder feed falls onto the moving conveyor belt.
• As the belt carries the material across magnetic rollers, magnetic particles adhere to the drum while non‑magnetic particles fall off naturally.
• The PTFE‑coated Kevlar belt provides a smooth, stable, and neutral transport surface, ensuring precise particle separation.
• Its non‑stick property prevents powder build‑up around the drum and splitter, enhancing both efficiency and consistency.

The magnet manufacturing process demands materials that can perform reliably under stringent mechanical, thermal, and magnetic conditions. PTFE coated Kevlar belt meet these requirements by delivering strength, durability, non‑magnetic neutrality, and superior non‑stick properties. For manufacturers looking to optimize separation efficiency and overall process stability, these belts present a proven and cost‑effective solution.

Conductive PTFE Belt YS9037BJ, 0.37mm Anti-static release sheet & belt.

Anti-static PTFE Fiberglass Fabric is coated with specially formulated black PTFE, these fabrics eliminate static electricity during operation,

Static can be created by friction or other connection, it will collect electric and dust which may destroy electrical component parts, and it will affect the release due to the electrostatic adsorption.

This conductive PTFE coating fiberglass fabric offers excellent thermal conductivity to dissipate surface static, it is widely used in apparel, electron industry as conveyor belts or release sheet.

• Easy to release, non stick surface
• Heat resistant to 500F
• Dimensional stability
• Chemical resistance
• Excellent belting material
• Anti-static, surface resistance is 10^7 to 10^5 OHMS/m²

Click here to download the TDS of YS9037BJ-ESONE

ESONE conductive Teflon belt YS9037BJ is widely used as non stick release belt in garment fusing machines, due to the excellent non stick surface and high tensile strength of YS9037BJ, ESONE conductive PTFE belt has high performance and long lifetime.

Thermal lamination is a typical process for producing lightweight and high performance composited material in automotive industry.

ESONE PTFE release fabric is a important aid for the lamination operations of decorative material, organo sheet, molten polymers, adhesives and others. These PTFE coated fabric is used as release sheet or conveyor belt due to the excellent temperature resistance, abrasion resistance and easy release surface. ESONE release solutions will ensure the excellent surface of finish product and maximum the output & machine productivity.

ESONE defect free and smooth PTFE coated fabric offer long lasting release property, we are your reliable partner for high performance product.

What can be made by using ESONE PTFE coated fabric

• Dashboards
• Door Carrier
• Door Wells
• Glove Compartments
• Parcel Shelves
• NVH Parts

ESONE Teflon coated glass cloth are a perfect solution for the rubber extrusion and curing line. Our product widely used in the manufacture of rubber profiles, ESONE PTFE belts can continuous working below 260°C and offer excellent release during curing and cooling of PVC, PU, PE or others.

The non stick surface means that nothing will be left on the Teflon belt, this belt will transfer rubber through the microwave oven or electric oven for curing process and the rubber will has excellent smooth surface.

PTFE coating fiberglass fabric YS9025BJ, 0.25mm Anti-static release sheet & belt.

Anti-static PTFE Fiberglass Fabric is coated with specially formulated black PTFE, these fabrics eliminate static electricity during operation,

Static can be created by friction or other connection, it will collect electric and dust which may destroy electrical component parts, and it will affect the release due to the electrostatic adsorption.

This conductive PTFE coating fiberglass fabric offers excellent thermal conductivity to dissipate surface static, it is widely used in apparel, electron industry as conveyor belts or release sheet.

• Easy to release, non stick surface
• Heat resistant to 500F
• Dimensional stability
• Chemical resistance
• Excellent belting material
• Anti-static, surface resistance is 10^7 to 10^5 OHMS/m²

Click here to download the TDS of YS9025BJ-ESONE

In order for highly increasing the non stick and lifetime property, ESONE is also modifying the YS9025BJ, click the button to know more about the YS9025BJ-M-ESONE

ESONE Teflon coated glass cloth is widely used as non stick release sheet in PV module vacuum lamination process, or used as conveyor belts for half cell welding machines. Since PV industry has very high request for the smooth surface, lifetime, mechanical and release property of PTFE coated fabric, so the performance of Teflon coating fabric will be a critical factor for maximum the production up time, and increasing the quality of the module.

Thermal lamination is a typical process for producing lightweight and high performance composited material in automotive industry.

ESONE PTFE coating fiberglass fabric is a important aid for the lamination operations of decorative material, organo sheet, molten polymers, adhesives and others. These PTFE coated fabric is used as release sheet or conveyor belt due to the excellent temperature resistance, abrasion resistance and easy release surface. ESONE release solutions will ensure the excellent surface of finish product and maximum the output & machine productivity.

ESONE defect free and smooth PTFE coated fabric offer long lasting release property, we are your reliable partner for high performance product.

What can be made by using ESONE PTFE coated fabric

• Dashboards
• Door Carrier
• Door Wells
• Glove Compartments
• Parcel Shelves
• NVH Parts

Carbon Fiber Composites in automotive industry like doors, side mirror, hoods and life-gates are the easiest options to reduce the weight of vehicle, and other significant options such as seats, under-tray, instruments, engine covers is expected to nearly double usage from 2015 to 2020.

ESONE PTFE coating fiberglass fabric is used as release sheet or release belt in the production of carbon fiber prepreg, such as heat press processing, vacuum bagging system and others.

By using PTFE bleeder cloth, the carbon fiber prepreg will have a excellent shiny surface or a textured surface, for example, PTFE coated fabric industrial series is used for the manufacturing of carbon fiber sports equipment in order to increase the skin friction.

ESONE Teflon coated glass cloth are a perfect solution for the rubber extrusion and curing line. Our product widely used in the manufacture of rubber profiles, ESONE PTFE belts can continuous working below 260°C and offer excellent release during curing and cooling of PVC, PU, PE or others.

The non stick surface means that nothing will be left on the Teflon belt, this belt will transfer rubber through the microwave oven or electric oven for curing process and the rubber will has excellent smooth surface.

FPCB is flexible printed circuit boards, which is a modern flexible electronic equipment types, using in printer, phones, camera and home devices.

ESONE Teflon coated glass cloth is the product of choice for CVL lamination, due to the excellent release property, high dielectric strength and mechanical strength.

ESONE PTFE cloth YS9023BJ is also used as release belt for tissue manufacturing, due to the excellent non stick surface and heat resistant property, this release belt is used for easy release in the sealing packaging of tissue box.

PTFE coated glass clothes YS9023BJ, 0.23mm Anti-static release sheet & belt.

Anti-static PTFE Fiberglass Fabric is coated with specially formulated black PTFE, these fabrics eliminate static electricity during operation,

Static can be created by friction or other connection, it will collect electric and dust which may destroy electrical component parts, and it will affect the release due to the electrostatic adsorption.

This conductive PTFE fabric offers excellent thermal conductivity to dissipate surface static, it is widely used in apparel, electron industry as conveyor belts or release sheet.

• Easy to release, non stick surface
• Heat resistant to 500F
• Dimensional stability
• Chemical resistance
• Excellent belting material
• Anti-static, surface resistance is 10^7 to 10^5 OHMS/m²

Click here to download the TDS of YS9023BJ-ESONE

ESONE PTFE coated glass clothes is widely used as non stick release sheet in PV module vacuum lamination process, or used as conveyor belts for half cell welding machines. Since PV industry has very high request for the smooth surface, lifetime, mechanical and release property of PTFE coated fabric, so the performance of PTFE coating fabric will be a critical factor for maximum the production up time, and increasing the quality of the module.

Thermal lamination is a typical process for producing lightweight and high performance composited material in automotive industry.

ESONE PTFE release fabric is a important aid for the lamination operations of decorative material, organo sheet, molten polymers, adhesives and others. These PTFE coated fabric is used as release sheet or conveyor belt due to the excellent temperature resistance, abrasion resistance and easy release surface. ESONE release solutions will ensure the excellent surface of finish product and maximum the output & machine productivity.

ESONE defect free and smooth PTFE coated fabric offer long lasting release property, we are your reliable partner for high performance product.

What can be made by using ESONE PTFE coated fabric

• Dashboards
• Door Carrier
• Door Wells
• Glove Compartments
• Parcel Shelves
• NVH Parts

Carbon Fiber Composites in automotive industry like doors, side mirror, hoods and life-gates are the easiest options to reduce the weight of vehicle, and other significant options such as seats, under-tray, instruments, engine covers is expected to nearly double usage from 2015 to 2020.

ESONE PTFE coated fabric is used as release sheet or release belt in the production of carbon fiber prepreg, such as heat press processing, vacuum bagging system and others.

By using PTFE bleeder cloth, the carbon fiber prepreg will have a excellent shiny surface or a textured surface, for example, PTFE coated fabric industrial series is used for the manufacturing of carbon fiber sports equipment in order to increase the skin friction.

ESONE PTFE coated glass clothes are a perfect solution for the rubber extrusion and curing line. Our product widely used in the manufacture of rubber profiles, ESONE PTFE belts can continuous working below 260°C and offer excellent release during curing and cooling of PVC, PU, PE or others.

The non stick surface means that nothing will be left on the PTFE belt, this belt will transfer rubber through the microwave oven or electric oven for curing process and the rubber will has excellent smooth surface.

ESONE PTFE cloth YS9023BJ is also used as release belt for tissue manufacturing, due to the excellent non stick surface and heat resistant property, this release belt is used for easy release in the sealing packaging of tissue box.

FPCB is flexible printed circuit boards, which is a modern flexible electronic equipment types, using in printer, phones, camera and home devices.

ESONE PTFE coated glass cloth is the product of choice for CVL lamination, due to the excellent release property, high dielectric strength and mechanical strength.

PTFE cloth YS9004AJ is the thinnest fabric in premium series, the coating process is difficult because the basic fiberglass is almost transparent and light weight like feather, and the final 0.04mm PTFE fabric is also almost transparent as you can see the other side through Teflon fabric.

In some applications which have high request for Teflon fabric, the thinner PTFE fabric can reach, the effect will be better. But it is difficult to manufacture thin PTFE fabric since the basic fabric is easy to be damaged during coating.

And in order to offer thin but long lasting Teflon coated cloth, ESONE is using special coating process and formula to reach customer’s request.

ESONE premium series PTFE cloth has following properties.

• Excellent non stick surface
• High PTFE content, easy to be laminated
• Good mechanical strength
• Outstanding dielectric strength
• Great dimensional stability
• Resist to almost all chemical

Click here to download the spec of YS9004AJ-ESONE

Find more PTFE coated fabric premium series

Because of the superior property of PTFE fabric, ESONE PTFE coated fabric is used as mold release sheet for aerospace industry, packaging industry, pharmaceuticals industry and others.

YS9004AJ is a excellent release solution for precision components due to the light weight and excellent surface.

By lowing the PTFE content but using same fiberglass, this material can be used as porous fabric for the curing, heat-pressing process of composited material, such as vacuum bagging system and so on.

ESONE PTFE cloth YS9004AJ is used in a wide range of electronic applications, such as Copper Clad Laminate(CCL) manufacturing, FPCB manufacturing, LCD conductive film bonding, cable wrapping and others.

Due to the excellent dielectric strength, easy release surface, outstanding dimensional stability and durability in heat, flame resistant and great mechanical strength, electromagnetic solenoids benefit from ESONE long lasting and high performance product.

PTFE coated glass fibre fabric YS9023AJ is a cost effective release sheet or belt for many kinds of industry, such as solar cell production, compression moulding release, textile manufacturing, wood lamination, tortilla belts and others.

ESONE YS9023AJ has good release property and long lifetime, it can be anti-static to eliminate static during operation.

Click here to download the spec of YS9023AJ-ESONE

Click here to browse PTFE fabric industrial series, PTFE fabric premium series.

Thermal lamination is a typical process for producing lightweight and high performance composited material in automotive industry.

ESONE PTFE coated glass fibre fabric is a important aid for the lamination operations of decorative material, organo sheet, molten polymers, adhesives and others. These PTFE coated fabric is used as release sheet or conveyor belt due to the excellent temperature resistance, abrasion resistance and easy release surface. ESONE release solutions will ensure the excellent surface of finish product and maximum the output & machine productivity.

ESONE defect free and smooth PTFE coated fabric offer long lasting release property, we are your reliable partner for high performance product.

Compression moulding is a cost effective processing for the production of high tensile and lightweight automotive parts.

ESONE PTFE release tape, release belt and release sheet is a processing aid for bonding, converting or shaping materials into composite parts. Our product will protect the reusable moulds and offer easy release surface, and due to the superior heat resistant property, high mechanical strength and strong abrasion resistance, the high quality of finish product and high production capacity will be ensured.

ESONE PTFE release sheet and release belt is workable for any kinds of compression moulding equipment, with features including guidable edges, different types of joints, smooth or texture surface and others.

ESONE PTFE coated glass fibre fabric are a perfect solution for the rubber extrusion and curing line. Our product widely used in the manufacture of rubber profiles, ESONE PTFE belts can continuous working below 260°C and offer excellent release during curing and cooling of PVC, PU, PE or others.

The non stick surface means that nothing will be left on the Teflon belt, this belt will transfer rubber through the microwave oven or electric oven for curing process and the rubber will has excellent smooth surface.

Due to the excellent non stick and long lasting performance of PTFE cloth, ESONE PTFE coated fiberglass fabric is used as conveyor belt for tortilla industry.

ESONE PTFE tortilla belt is the best solution for tortilla working environment

• Resist high levels of oil and grease
• Resist continuous pressing and running
• Belt must transfer heat well
• Easy release surface
• Long life time of tortilla belt

ESONE PTFE coated glass fibre fabric are widely used as release sheet in PV module vacuum lamination process, or used as conveyor belt for half cell welding machines.

Since PV industry has high request for the smooth surface, lifetime, mechanical strength and easy release property of PTFE coated fiberglass fabric, so the performance of PTFE coated cloth will be a critical factor for maximum the production up time, and increasing the quality of module.
