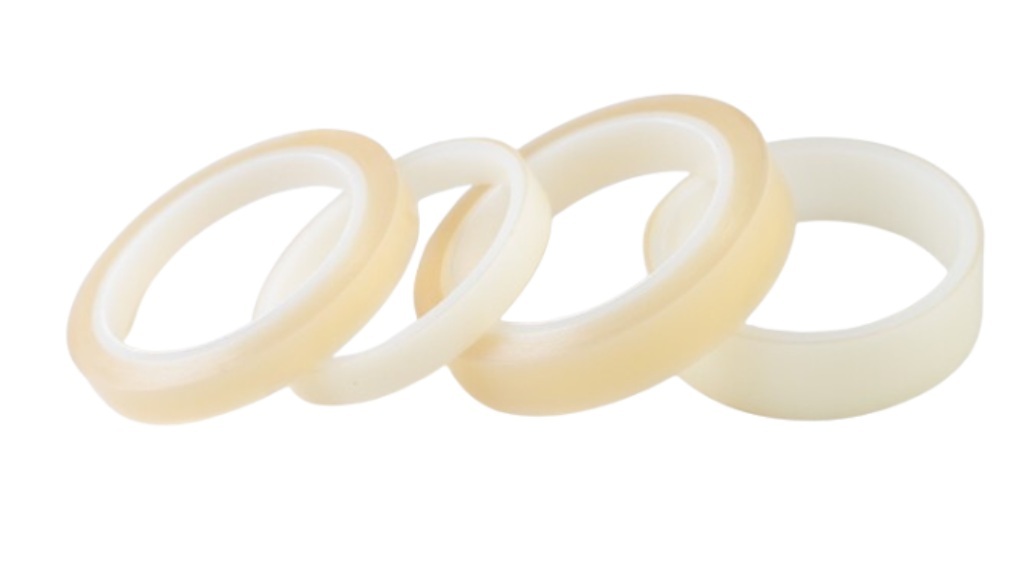

FEP Film Adhesive Tape
FEP Film Adhesive Tape (optically clear FEP tape) is a Thermal Class H electrical insulation tape constructed from (fluorinated ethylene propylene) FEP film and a high-temperature silicone adhesive. Rated for extreme temperatures from -73°C to 204°C (-100°F to 400°F), this tape is primarily used in electrical applications, including capacitor insulation and cable termination insulation. It is an ideal solution for applications requiring superior electrical insulation, optical clarity, easy release, and abrasion resistance.
The FEP backing is chemically inert, thin, and conformable, providing excellent weather resistance and stability across a wide temperature range. The silicone adhesive offers outstanding chemical resistance and electrical properties, allowing for clean removal with minimal residue. Additionally, the FEP film features superior anti-stick characteristics, low friction, and strong resistance to punctures, chemicals, and solvents.
Specification of FEP Film Adhesive Tape
Width: Max 635mm (25inches) wide. Any slit width is available
Liner Options: Available with or without a release liner.
Application of optically clear tape
- Coil and transformer Insulation
- Wire harness Identification
- High temperature cable splicing and cable wrapping
Advantages of FEP Tape
- Excellent Electrical Properties:Designed for superior performance in electrical applications, ensuring reliability and safety.
- Outstanding Chemical Resistance:High resistance to chemicals in harsh environments enhances effectiveness and boosts productivity by reducing part replacements.
- Weather and UV Resistance:Ideal for transformer applications, this tape is impervious to the elements, providing durability in outdoor conditions.
- Highest Dielectric Strength:Combines high dielectric strength with a low dielectric constant for maximum electrical reliability in high-temperature motors and generators.
- Optically Clear:The clear FEP tape enables easy identification on wire harnesses, allowing for visibility without compromising performance.
| TDS of FEP Film Adhesive Tape | ||||||
|---|---|---|---|---|---|---|
| Model Name | Adhesive Type | PTFE Film Thickness mm(inch) | Total Thickness mm(inch) | Tensile Strength N/10mm(lb/in) | Dielectric Strength KV | Percentage of Elongation % |
| YS7809-ESONE | Silicone PSA | 0.05(0.0020) | 0.09(0.0035) | 14(8) | 9 | 320 |
Related Document
FEP Film Adhesive Tape is a Thermal Class H electrical insulation tape made from FEP (fluorinated ethylene propylene) film.
PDF| 373kb
