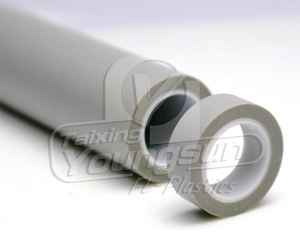

PTFE Adhesive Tapes

PTFE Adhesive Tapes are fiberglass fabrics impregnated with PTFE, then coated with silicone or acrylic adhesive on one side.

Silicone pressure adhesive can resist temperature of -40~260 degrees while acrylic adhesive resist temperature of -40~170 degrees. We offer this PTFE Adhesive tape with or without yellow PVC liners in width of 1m, 1.2m or 1.25m, while the width of PTFE Adhesive Tape can be customized accordingly with PE or Paper inner core.

With the property of high temperature & chemical resistance, non stick and low friction coefficient surface, this product is widely used in LCD, FPC, PCB, packing, sealing, battery manufacturing, dying, aerospace and mold releasing or other industries.

PTFE Glass Adhesive Tapes

  PTFE Glass Adhesive Tape(without liner)
Adhesive TypeCategoryTotal Thickness (mm)Width (mm)Adhesion (N/cm)
YS7008AJ-ESONESilicone PSAPremium0,135-6004.4
YS7010W-ESONESilicone PSAIndustrial0.155-6005.4
YS7011AJ-ESONESilicone PSAIndustrial0,165-6005.4
YS7013AJ-ESONESilicone PSAPremium0,185-6005.4
YS7025AJ-ESONESilicone PSAPremium0.305-6006

PTFE Film Adhesive Tapes

Contact Info

Western end of south third ring road, Taixing, Jiangsu, China

Phone: +86 523 80721510

Mobile: +86 13901437262

Fax: +86 523 87593398

Web: PTFE Fabrics

  PTFE Film Adhesive Tape
Adhesive TypePTFE Film Thickness (mm)Total Thickness (mm)Width (mm)Adhesion (N/cm)
YS7908-ESONESilicone PSA0.050.085-5002.2
YS7913-ESONESilicone PSA0.090.135-5003.2

PTFE Glass Adhesive Tape (with yellow liner)

PTFE Adhesive Fabric Premium Series
StyleStandard Width(mm)
Please ask for other widths
Backing Thickness (mm)Total Thickness (mm)Weight
(g/m2)
Adhesive
(N/cm)
Tensile Strength Warp/Fill
(N/cm)
YS7008AJ-ESONE1000, 12500.080.131554.4104/98
YS7013AJ-ESONE1000, 12500.130.182705.4240/200
YS7015AJ-ESONE10000.150.203165.6240/200
YS7018AJ-ESONE10000.180.233705.6320/302
YS7020AJ-ESONE10000.200.254105.7280/256
YS7025AJ-ESONE10000.250.305306.0460/400
YS7030AJ-ESONE10000.300.356256.2680/640

PTFE Zone Tapes
