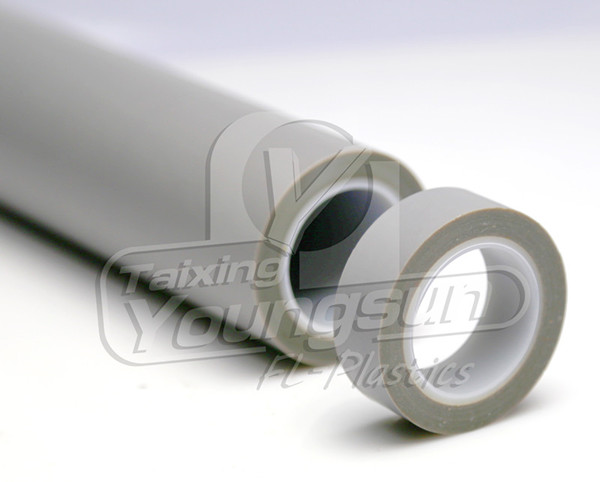

Skived PTFE Adhesive Tape

/, PTFE Tape/Skived PTFE Adhesive Tape

Skived PTFE Adhesive Tape

 Skived PTFE Adhesive Tape

Description:
PTFE Film Tape is the one using polytetrafluoroethylene (PTFE) film as base material. Single surface treated and coated with silicone adhesive with excellent heat resistance. The tape exhibits superior features such as desirable electrical properties, heat resistance, chemical resistance and non-adhesiveness.

Properties:
The non-adhesive side exhibits excellent features of polytetrafluoroethylene (PTFE) such as electrical  properties, resistance to heat, weather, chemical, and water (water shedding), and non-adhesiveness
Superior tensile strength.
Superior flame resistance.
Can be used in a wide range of temperature (-60°C-180°C), however, it may vary according to the use condition.

Main Specification for skived PTFE Adhesive Tape:

Model      Thickness

Max Width

     Length
Range
Colour  Available
 mm     mil

YS-FS7005

 0.05     3.0 1000mm    10~55m    Creamy White

YS-FS7013

 0.13     5.0 1000mm    10~55m    Creamy White

YS-FS7018

 0.18     7.0 1000mm     10~55m    Creamy White

YS-FS7025

 0.25    10.0 1000mm     10~55m    Creamy White

Applications:
For roll wrapping in polyethylene laminators (Suitable for long continuous use as the tape has superior  durability and mechanical strength).
For endless belts of polyethylene laminators.
For insulation of coils as a class H insulating material.
Can be laminated with metals, plastics and ceramics as general sliding materials.
