Anti static PTFE Coated Glass Fabrics

Anti static PTFE Coated Glass Fabrics, conductive PTFE release sheet

Anti static PTFE Coated Glass Fabrics is unlike normal PTFE Coated Fabrics, this product is made with special formulated anti static PTFE, which can eliminate static electricity during production.

The OHMS(surface resistant) per square meter of Anti static PTFE coated fabrics can be 10^7 to 10^5, which will show excellent conductive and non stick property.

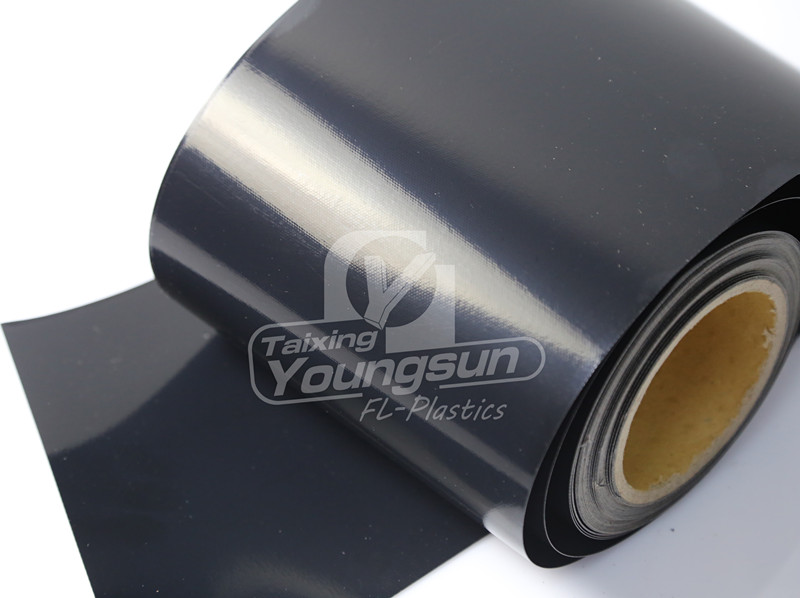

Anti static PTFE Coated Glass Fabrics

Anti static PTFE Coated Glass Fabrics



Property Anti Static PTFE Coated Fabrics



This PTFE Coated Glass Fabrics has an anti static and thermal conductivity properties, which is a modified PTFE coated fabric to increase the surface resistant.

The color of Anti static PTFE coated Glass Fabrics is black and available in PTFE coated glass fabrics, Self adhesive PTFE Fabrics, PTFE open mesh fabrics.



The property of Anti static PTFE fiberglass fabric is same as PTFE fabric premium series.

  Non-stick surface and easy release

  Working continuous from -70°C – +260°C

  Chemical resistant and environmental resistant

  High tensile strength and dimensional stability

  Reusable and has long lifetime

★  Abrasion and UV resistant



Applications of Anti static PTFE coated glass fabrics



Anti static PTFE coated fiberglass fabrics is designed for electronics industry like wire or cable insulation and protection for LCD/FPC/PCB, apparel industry like fusing machines conveyor belts, release sheet in shoes industry, PV industry like solar cell panel molding release or welding belts, auto industry like plastic molding release sheet, packing industry like release fabric for heat press machines, textile industry, drying industry and so on.

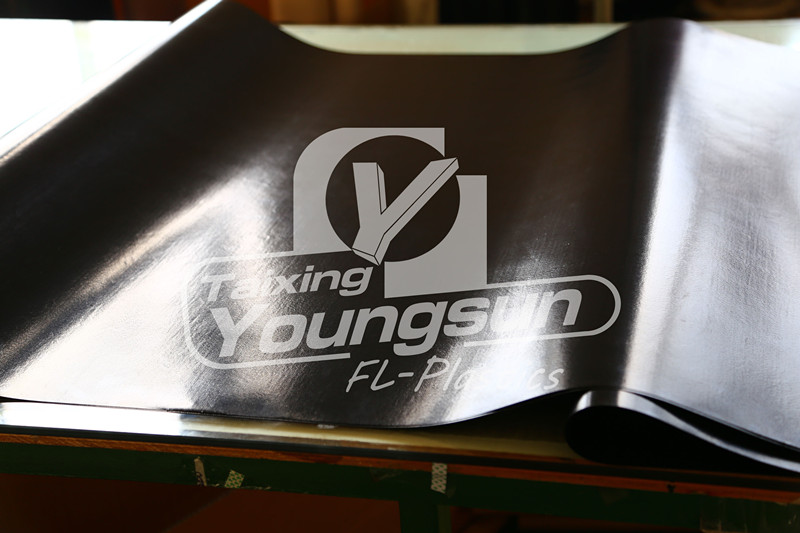

Anti static PTFE Fusing belt

Anti static PTFE Fusing belt

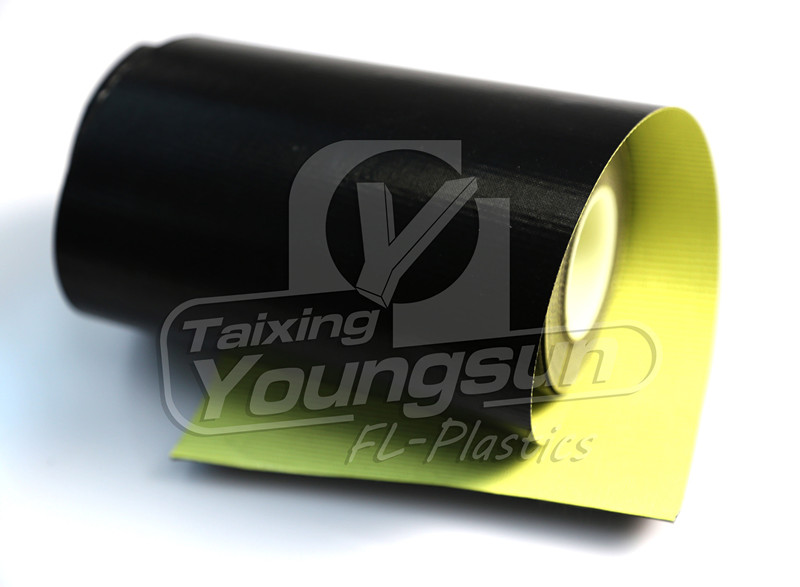

Anti static PTFE Adhesive tape

Anti static PTFE Adhesive tape



The main Specifications of Anti Static PTFE Coated Fabrics



ProductProduct CategoryCoating
PTFE GLASS FABRICANTI STATIC SERIESPTFE



PTFE Fabric Anti static Series
StyleStandard Width(mm)
Please ask for other widths
Normal Thickness
(mm)
Weight
(g/m2)
PTFE Content
(%)
Tensile Strength Warp/Fill
(N/cm)
YS9008BJ-ESONE1000/12500.0815568102/98
YS9011BJ-ESONE1000/12500.1122048240/200
YS9012BJ-ESONE1000/12500.1224559240/200
YS9013BJ-ESONE1000/1250/15000.1328060240/200
YS9018BJ-ESONE1000/1250/15000.1837055320/305
YS9023BJ-ESONE1000/1250/1500/2000/26000.2350060420/360
YS9025BJ-ESONE1000/1250/1500/2000/26000.2553062460/400
YS9035BJ-ESONE1000/1250/1500/2000/26000.3568062540/508
YS9037BJ-ESONE1000/1250/1500/2000/26000.3773060540/508
YS9090B-ESONE1500, 1600, 22500.901650511240/1180
YS9038HS-ESONE15000.38560For Insulation Jacket



For other specifications, please feel free to contact us for special production.

For samples of Anti static PTFE Coated Glass Fabrics,  please feel free to contact us.



Note:
Weight Tolerance g/m² = ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constructed in any manner as warranties expressed.
