PTFE coated Glass Fabrics YS9015AJ

////PTFE coated Glass Fabrics YS9015AJ

PTFE coated Glass Fabrics YS9015AJ

PTFE coated Glass Fabrics, abrasion resistant and high tensile strength

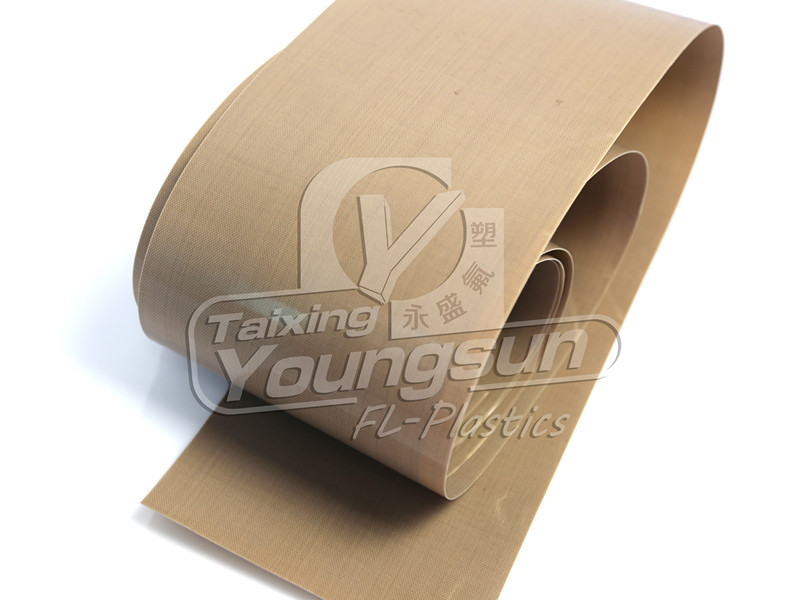

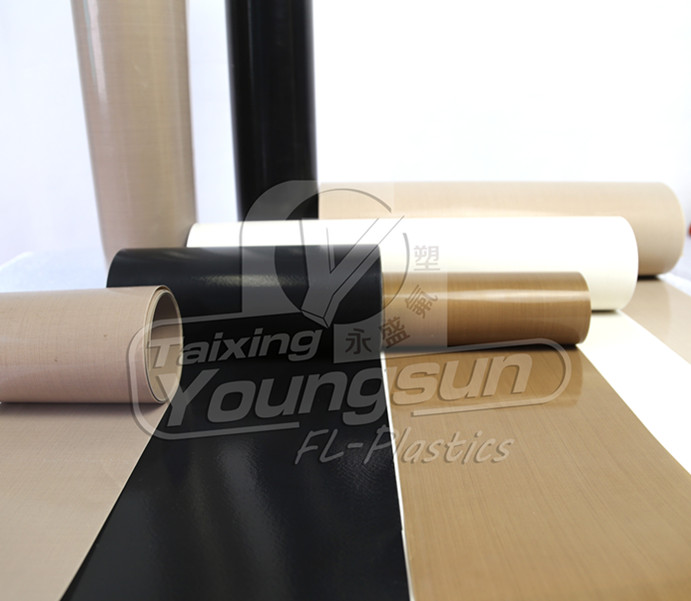

PTFE coated Glass Fabrics is made from high quality glass fabrics combined with specially formulated PTFE content.
0.15mm Teflon coated fabric belongs to the Premium Series, which is made of 2116 E-glass and coated with high quality PTFE, the model number is YS9015AJ.
PTFE Coated Glass Fabrics is also abrasion resistant and has high tensile strength, which is usded as laminate-release sheets for curing & laminating process, belting for food, electrical insulation and industrial processing.
YS9015AJ is also being used to make YS7015AJ PTFE coated Adhesive Tapes.

Properties of PTFE Coated Glass Fabrics



  Easy to release, super Non stick
  Continuous working from -70°C to +260°C
  Low friction and very smooth
  Food grade and can touch food directly
  High chemical resistant
  Strong tensile strength and dimensional stability
  UV resistant, anti-aging and anti-environment
  High dielectric strength
PTFE coated Glass Fabrics

PTFE coated Glass Fabrics combines the mechanical propertiess of woven fiberglass fabric with nonstick properties of Teflon(PTFE). The woven pattern of glassfiber fabric ensures it strength while PTFE coating guarantees its nonstick characteristics.



Applications of PTFE Coated Glass Fabrics



  For molding: mold-releasing sheets.
  For printing: drying screen-printing machines.
  For apparels: adhesive interlining belts.
  For food processing: heat sealers, frozen food transportation, defrosting belt and baking belt.
  For packing: shrink film packaging and side band sealing.
  For office equipment: paper conveyor belt of copiers.
0.15mm Teflon glass fabric can be made into Anti-static fabric with or without adhesive.
And YS9015AJ is also be used for making 2 or more layers PTFE laminating belts.

Main Specifications of PTFE Coated Glass Fabrics



ProductProduct CategoryCoating
PTFE GLASS FABRICPREMIUM SERIESPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000 mm39.5 inches
Thickness0.15 mm0.006 inches
Coated weight315 g/m² 9.29 oz/yd²
PTFE content66 %66 %
Tensile strength250 N/cm Warp143 lbs/inches Warp
210 N/cm Fill120 lbs/inches Fill
Temperature resistance-73 to +260 °C-100 to +500 °F



Click here to download the spec of YS9015AJ-ESONE



PTFE coated Glass Fabric

PTFE coated Glass Fabric

4 Comments

  1. Brain 2018年8月15日 at am7:39 - Reply

    Hello, can I have some samples of PTFE fabric non adhesive?

    • Ms. PTFE 2018年8月15日 at am8:00 - Reply

      Hi Brain, Thanks for your comment!
      Please could you kindly inform us the spec and qty that you need? We are very happy to deliver a set of samples for your reference!
      Our sales team will contact with you soon:)

  2. Steve 2018年8月23日 at am7:33 - Reply

    Is 9015 better.than 9013?

    • Ms. PTFE 2018年8月23日 at am8:42 - Reply

      Hi Steve, thanks for your inquiry!
      Yes, YS9015AJ is using same basic material as YS9013AJ, but more PTFE content, so the non stick property will be better.
