17oz Grey Silicone Coated Fabrics

Silicone Coated Fabrics for removable insulation jacket

Silicone coated fabrics are fiberglass fabric impregnated with specially formulated silicone rubber. This silicone fabric can continuous working below 500F, and the flame retardant silicone rubber offer longer lifetime and increase the abrasion resistance, tear resistance and flexibility.



Unlike PTFE impregnated fabric, silicone fabric is more flexible and cost effective, it has more choice for the coated color also.

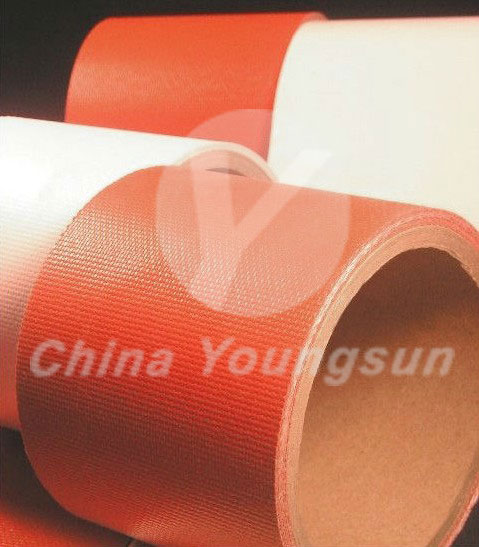

silicone coated fiberglass fabric

silicone coated fiberglass fabric



Properties of Silicone coated fabrics



  Work continuously below 500F

  UV Resistant

  Environmental & Water & Oil resistant

  Flame resistant and low smoke

  Can be easily sewn

  Chemical resistant

  Easy to fabricate

  Superior dielectric strength

  Flexibility



Applications of Silicone impregnated fabric



Silicone coated fabrics provide high property of chemical, abrasion, heat, water and oil resistant, and is flexibility, also durability.



Industrial applications of ESONE coating fabrics and textiles, including thermal insulation jackets, welding curtain, expansion joint, flame resistant curtains and so on.

Most of our standard coating material is used in industries such as welding, insulation, aerospace, automotive and petrochemical. And our engineer will adjust the formula, or using special fabric like Kevlar®, Nomex®, Nylon, Carbon, aramid blends, in order to meet the request of customer in different industries.



It is the perfect solution for industry like following.

  Removable insulation blanket

  Welding curtains

  Expansion joints

  fire protection curtains

  anti-corrosion sector

  Equipment covers

  Safety clothing

  Shrink tunnels

  Foam manufacturing



This product is designed for working environment with high temperature, or high corrosivity, or is inflammable and so on.

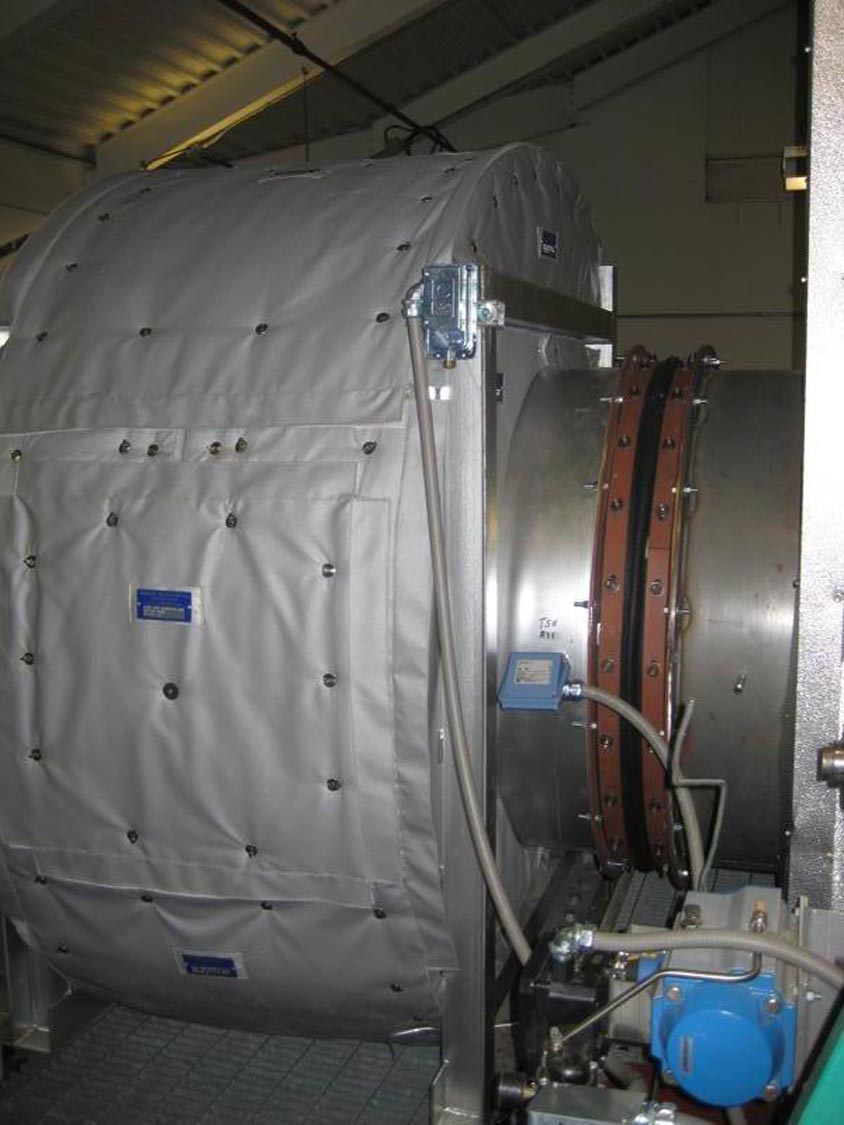

Pump Insulation Covers

Pump Insulation Covers

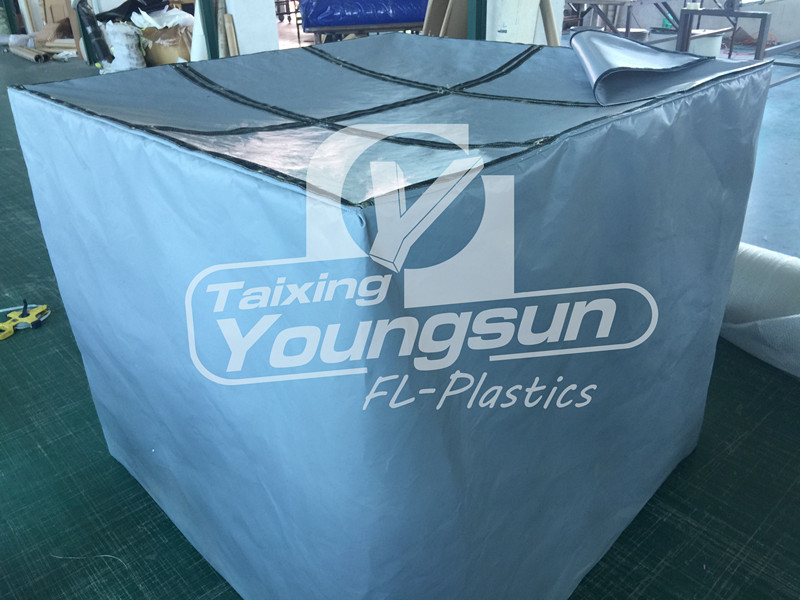

Antiseptic Insulation Tent

Antiseptic Insulation Tent



Technical Data Sheet of 17oz grey Silicone fiberglass



ProductProduct CategoryCoating
SILICONE RUBBER
COATED GLASS FABRIC
SILICONE BOTH SIDESILICONE RUBBER



17 oz Silicone Impregnated Fiberglass Fabric YS5038
PropertiesMetricImperial
Basic FabricSatin weaved fiberglassSatin weaved fiberglass
CoatingBoth sideBoth side
Standard width
Please ask for other widths
1500 mm60 inches
Coated Weight580 g/m²17 oz/yd²
Thickness0.38 mm0.015 inches
Tensile strengthWarp 2580 N/5cm295 lbs/inches
Fill 2100 N/5cm240 lbs/inches
Mullen Burst420 N/cm²600 psi
Flame ResistantChar Length 0.76 cm maxChar Length 0.3 inch max
Afterglow 1 second maxAfterglow 1 second max
Flame Out 1 second maxFlame Out 1 second max
Temperature resistance-73 to +260 °C-100 to 500 °F
UV Resistance1000 hours; no change in tensile1000 hours; no change in tensile
ColorGray/White/Yellow/Black/Red/SilverGray/White/Yellow/Black/Red/Silver



silicone coated fabrics

silicone coated fabrics



Click here to download the TDS of YS5038-17oz-ESONE
