PTFE adhesive YS7025AJ

PTFE adhesive YS7025AJ

PTFE Adhesive YS7025AJ, long lasting PTFE adhesive fabric

PTFE Adhesive YS7025AJ, with 0.30mm total thickness, has easy release and long lasting performance. The basic material is YS9025AJ, which has excellent release surface and high mechanical strength. And the silicone pressure adhesive on the back is heat resistant and long lasting.
Teflon adhesive sheet

Teflon adhesive sheet



Teflon adhesive tape has a yellow PVC liner on the back, which can protect the adhesive surface and to ease distinction and use.



Any width or length can be cut according to the applications,  such as heat sealer machines, covering elements, impulse wires, L-Bar sealers, Wire wrap insulation and harness protection.



Property of Adhesive PTFE coated fabrics



Self adhesive Teflon tapes contain non stick PTFE coated surface and heat resistant adhesive, like silicone PSA or acrylic adhesive, that allow for easy release, superior mechanical strength, long lifetime and dimensional stability.



PTFE coated tape with silicone PSA is the best solution for high request applications, which has requirement for continuous and efficient processing, excellent bonding strength and long lasting performance at high temperatures (up to 500˚F / 260˚C).



The properties of PTFE coated tape with silicone PSA is as follows.



  Excellent dimensional stability and durability in heat.

  Superior easy mold release property, excellent Non stick

  operating continuous from 70°C and +260°C

  Flame resistant

  High dielectric constant

  Good mechanical strength



Specification of PTFE coated adhesive sheet



Normally, we sell 1000mm or 1250mm wide with yellow release paper to protect adhesive.
We can also supply short width 1″, 2″ etc width without release paper.
Just use it as normal adhesive tape.

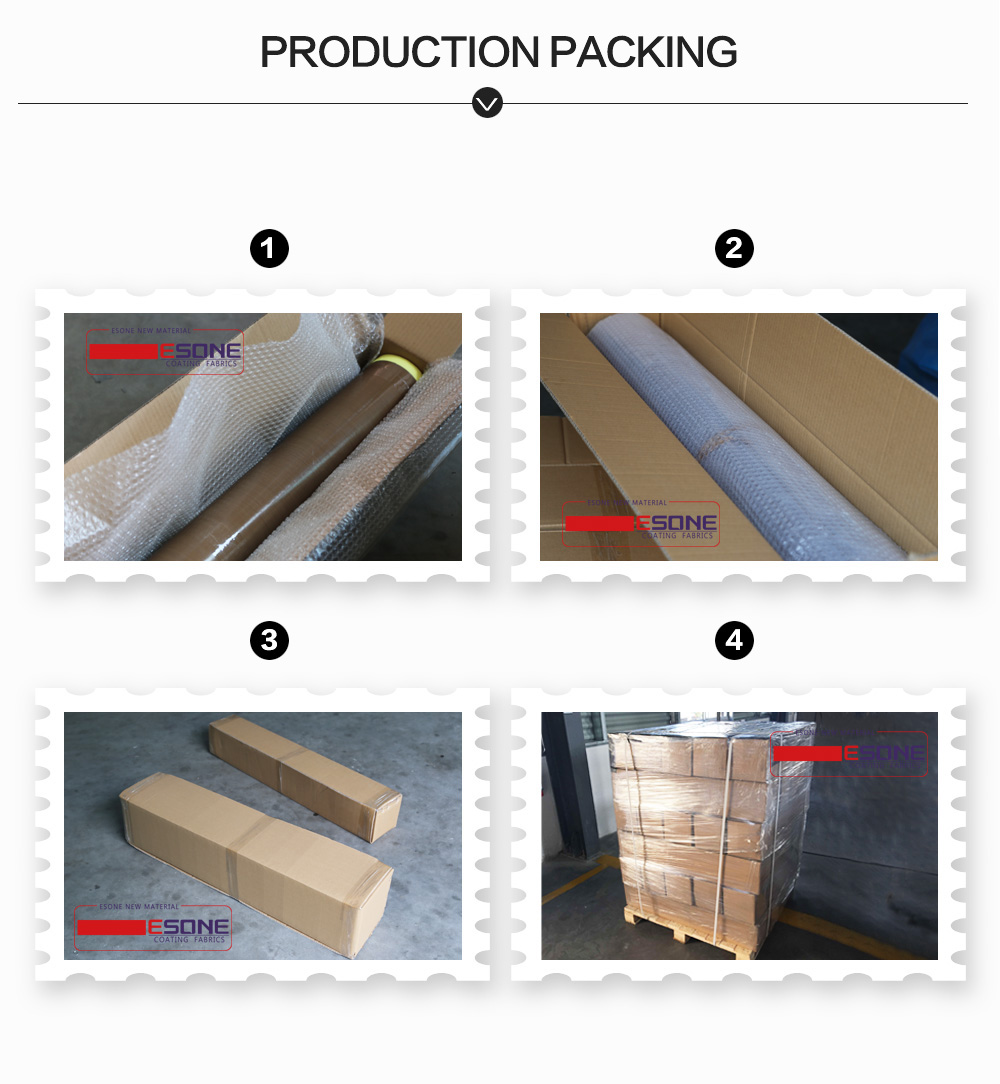

Esone PTFE Adhesive Packing

Esone PTFE Adhesive Packing



Technical Data Sheet of YS7025AJ PTFE Adhesive



ProductProduct CategoryCoating
PTFE GLASS FABRIC SELF ADHESIVEPREMIUM SERIESILICONE PSA



PropertiesMetricImperial
Standard width
Please ask for other widths
1000 mm39.5 inches
Backing Thickness
PTFE glass
0.25 mm0.0099 inches
Total Thickness
PTFE glass and Silicone PSA
0.30 mm0.0119 inches
Coated weight
PTFE glass
530 g/m² 15.63 oz/yd²
Tensile Strength
PTFE glass
460 N/cm Warp263 lbs/inches Warp
400 N/cm Warp229 lbs/inches Warp
Adhesion6.0 N/cm55 oz/inches
Temperature resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS7025AJ-ESONE



PTFE Adhesive

PTFE Adhesive is also called PTFE Adhesive Sheet, it is made of PTFE Coated Glass Farbrics, with one side silicone adhesive coating.
