seamless fusing machine belt

////seamless fusing machine belt

seamless fusing machine belt

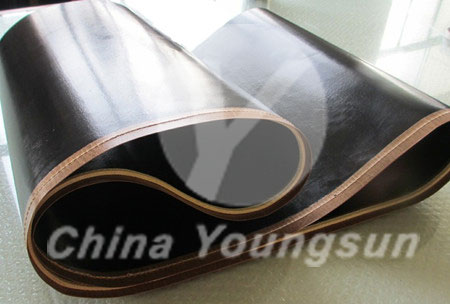

Seamless Fusing Machine Belt is made by China Youngsun,which has the most advanced weaven equipment from Germany,which can weaven the seemless fiberglass or Kevlar fabrics by ourselves.OurPTFE coated fiberglass smooth surface belting is specifically engineered with the mechanical strength needed for the fusing and laminating industries. Its non-stick surface, thermal transfer and high temperature resistance characteristics ensure the flow of woven and non-woven materials through the fusing and lamination process. We have developed a full range of fusing machine belting products specially for garment industries.Our fusing machine belt are excellent compatible with many well-known fusing machines in the world,such as Hashima,Xinhua,etc.

Properties:
Operating Temperature range- 200oC + 260oC
Superior release Non-Stick Surface
Dimensionally Stable
Mechanical strength
Non Flammable
Thermal transfer properties

Seamless Fusing Machine Belt:
This belt use seamless fiberglass or Kevlar as base material,then coated with fine PTFE.

Specification:

Standard Thickness: 14.0~16.0 mil  /  0.35~0.40mm

Width: 20~1600mm

Seamless Belt Girth:  (mm)

1360

1380

1440

1470

1510

1520

1530

1540

1550

1560

1580

1600

1640

1660

1680

1730

1740

1780

1820

1830

1840

1850

1870

1880

1950

2000

2040

2100

2230

2240

2250

2310

2320

2420

2440

2450

2500

2600

2630

2750

2800

2820

2850

2880

2900

3050

3080

3090

3200

3450

3540

3590

3820

3850

3890

3900

3920

3930

4200

4270

5100

5270

5400

5640

5800

6000

6440

6700
