Energy

For traditional energy market, ESONE product is used as expansion joint, insulation jacket and other thermal insulation material.

For clean energy market, ESONE product is used in the manufacturing of solar energy modules in photovoltaic industry, and wind turbine blade in wind power industry, or work as insulated separator in fuel cells.

In these applications, the excellent release property and outstanding mechanical strength is critical to the process performance of manufacturing and the quality of product.

Applications

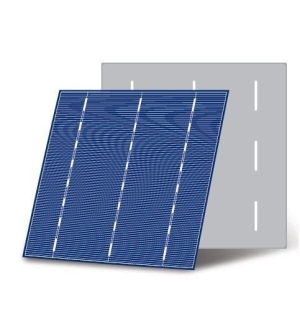

  • Solar cells production and module lamination

PTFE(Teflon) coated fiberglass fabric is widely used as non stick release sheet in PV module vacuum lamination process, or used as conveyor belts for half cell welding machines. Since PV industry has very high request for the smooth surface, lifetime, mechanical and release property of PTFE coated fabric, so the performance of Teflon coating fabric will be a critical factor for maximum the production up time, and increasing the quality of the module.

  • Wind Turbine Blades Release

This application also use PTFE porous fabric and PTFE adhesive fabric. We customize PTFE porous fabric with balanced porosity & release property, and has high mechanical strength. For PTFE adhesive fabric, our mold release tape is easy release and has high mechanical strength, so that it can be reused many times easily.

ESONE PTFE fabric also names as heat resistant peel ply, this allows for the composite to be peeled from fabric after it is cured, and the result is a perfectly smooth surface.

Contact Info

Western end of south third ring road, Taixing, Jiangsu, China

Phone: +86 523 80721510

Mobile: +86 13901437262

Fax: +86 523 87593398

Web: PTFE Fabrics

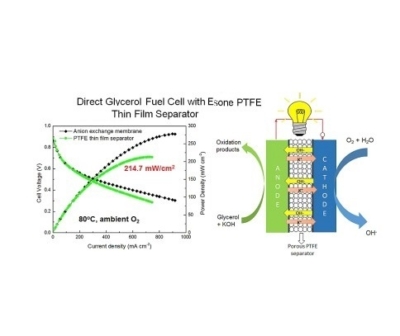

  • Fuel cells isolating membranes

ESONE PTFE thin film and PTFE coated fiberglass fabric is able to continuously withstand both low and high temperature, and is chemical resistant which can work in harsh chemical environment. Due to these properties, ESONE product further promote the efficiency of fuel cells, which offer modularity to cell system and work as a tight separator and seal within the cells.

These excellent properties guarantee the long lasting performance in fuel cells which are always operating in a very challenging environments. ESONE protection solution is based on multi-layer, multi-material PTFE based composites, and is reinforced with fiberglass or aramid fabric, which has the ability to perform and separator well in the challenging conditions from -150°C to +300°C, frequent flexing, elevated pressures and exposure to chemicals.

Not only that, the flame resistant property is also a important barrier solution for fuel cell application.

  • Catalytic Layer Manufacturing

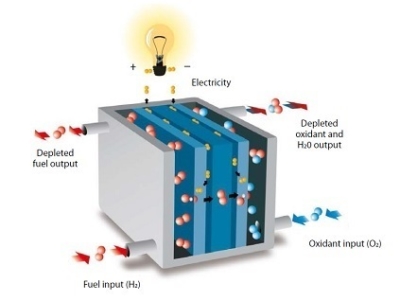

A fuel cell is an electrochemical cell that converts the hydrogen and oxygen into electricity through a pair of redox reaction, it is green and efficient which is a important way in helping protect our environment.

ESONE PTFE coated fabric is the release belt in the decal process for the production of integral catalytic layers of fuel cells. The decal process is in a harsh working environment which is sticky and hot, and due to the heat resistant property and mechanical strength of ESONE belts, they are the reliable carrier for the catalytic ink and decal substrate.

ESONE release belt offer clean release and long lasting property for production of Catalytic Layers (Decal Process).

Production Catalytic Layers (Decal Process)

Insulation Jacket is designed to help customers save energy when traditional insulation is not practical, it is customized and wrapped outside pumps, filters, exchange, pipeline, valves, freeze protection and so on.

By using removable insulation blanket, customers can combine reducing heat loss, insulation design and wireless monitoring together.

  • Expansion Joint

ESONE expansion joint is made of PTFE coated fabric or Silicone coated fabric, due to the unique property of ESONE material, this expansion joint provide unrivalled support for restricting the emission of pollutants in harsh environment such as coal-fired power stations.

This fabric with high mechanical strengths can resist high temperature, corrosive chemical and continuous vibration, which offer reliable environment protection while retaining excellent mechanical strength and flex property in harsh and corrosive environment.

  • Oil and Gas

Due to the superior corrosive chemical resistant property and outstanding dielectric strength, PTFE adhesive tape and PTFE adhesive film is used as wrapping insulated material for cable in drilling oil field and many other harsh working environment in oil and gas industry. And Fluorine coated fabric or silicone coated fabric is used as insulation protection blanket since these composited material has unique properties.

Related Product Data Sheet

PTFE coated Fabric for Energy Industry
ImageStyleStandard Width(mm)
Please ask for other widths
Normal Thickness
(mm)
Weight
(g/m2)
PTFE Content(%)Tensile Strength Warp/Fill
(N/cm)
Teflon Cloth

Teflon Cloth YS9025AJ is using basic glassfiber fabric of 7628 coated with PTFE formula.

YS9023AJ-ESONE1000/1250/1500/2000/26000.23mm50060420/360
YS9025AJ-ESONE1000/1250/1500
/2000/2600
0.25mm53062460/400
YS9030AJ-ESONE1000/1500/2000/26000.30mm62553680/640
YS9035AJ-ESONE1000/1500/2000/26000.35mm68062540/508
PTFE Heavy Belt

PTFE Heavy Belt

YS9090A-ESONE1500/1600/22500.90mm1600471300/1200
YS9100A-ESONE1500, 1700, 1900, 22501.00mm 1800451360/1260
PTFE Fabric for Insulation Jacket
ImageStyleCoatingStandard Width(mm)
Please ask for other widths
ColorWeight (oz/yd²)Working Temperature
PTFE coated fabric for insulation jacket

PTFE coated fabric for insulation jacket

YS9038HD-ESONEOne side1500Gray/White/Yellow16.5 (560 g/m²)-73 to +315 °C
YS9038HS-ESONEOne side1500Black Anti-static16.5 (560 g/m²)-73 to +315 °C
YS9040HD-ESONEBoth sides1500Gray/White/Yellow18 (650 g/m²)-73 to +315 °C
YS9086HD-ESONEOne side1500Gray/White/Yellow34 (1150 g/m²)-73 to +315 °C
Silicone Fabric for Insulation Jacket
ImageStyleCoatingStandard Width(mm)
Please ask for other widths
ColorWeight (oz/yd²)Working Temperature
silicone coated glass fabric

silicone coated glass fabric

YS5038-17oz-ESONEBoth sides1500Silver/Gray/White/Yellow/Black/Red17 (580 g/m²)-73 to +260 °C
YS5045-17.5oz-ESONEBoth sides1500Silver/Gray/White/Yellow/Black/Red17.5 (595 g/m²)-73 to +260 °C
YS5095-34oz-ESONEBoth sides1500Silver/Gray/White/Yellow/Black/Red34 (1156 g/m²)-73 to +260 °C
YS5120RO-ESONEOne side1200Silver/Gray/White/Yellow/Black/Red45.7 (1550 g/m²)-73 to +260 °C
YS5200RO-ESONEOne side1200Silver/Gray/White/Yellow/Black/Red73.8 (2500 g/m²)-73 to +260 °C
PTFE Glass Adhesive Tape(without liner)
ImageStyleAdhesive TypeCategoryTotal Thickness (mm)Width (mm)Adhesion (N/cm)
Teflon tape

Teflon tape

YS7008AJ-ESONESilicone PSAPremium0,135-6005
YS7010W-ESONESilicone PSAIndustrial0.155-6005
YS7011AJ-ESONESilicone PSAIndustrial0,165-6005
YS7013AJ-ESONESilicone PSAPremium0,185-6006.4
YS7025AJ-ESONESilicone PSAPremium0.305-6006.4
PTFE Film Adhesive Tape
ImageStyleAdhesive TypePTFE Film Thickness (mm)Total Thickness (mm)Width (mm)Adhesion (N/cm)
PTFE adhesive film

PTFE adhesive film

YS7908-ESONESilicone PSA0.050.085-5002.2
YS7913-ESONESilicone PSA0.090.135-5003.2
