Teflon seamless belt for Oshima & Hashima fusing machine

Seamless Belt for Oshima & Hashima fusing machine

Seamless belt is using high tensile fiberglass or Kevlar as basic material, this belt is woven by special weaving equipment and coated with high quality Teflon.

As Fusing machine belt has no joint and the basic material is very strong, so the lifetime will be much longer than normal belt with joint.

There is no scratch, pin holes and scar on the surface, so the apparel will be laminated even and tight.

Teflon seamless fusing machine belt could be made into Anti-static surface, resulting in a much better fusing experience.



Seamless Belt

Seamless Belt



Advantages of PTFE fusing machine belts



1)High temperature resistant and Non-stick surface

2)Excellent tensile strength, make a long lifetime!

3)Superior Anti-static surface

4)Smooth surface, no scar on it

5)Flex fatigue resistance, durable, long using life;

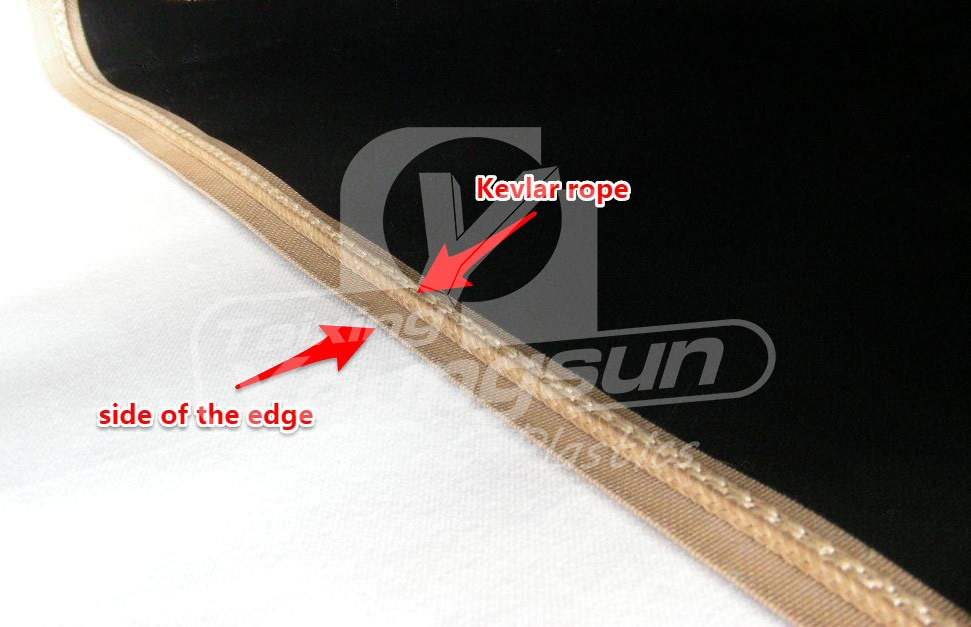

6)The edge could be reinforced by Kevlar rope, or PTFE rope, or PTFE thread, or metal rivet.

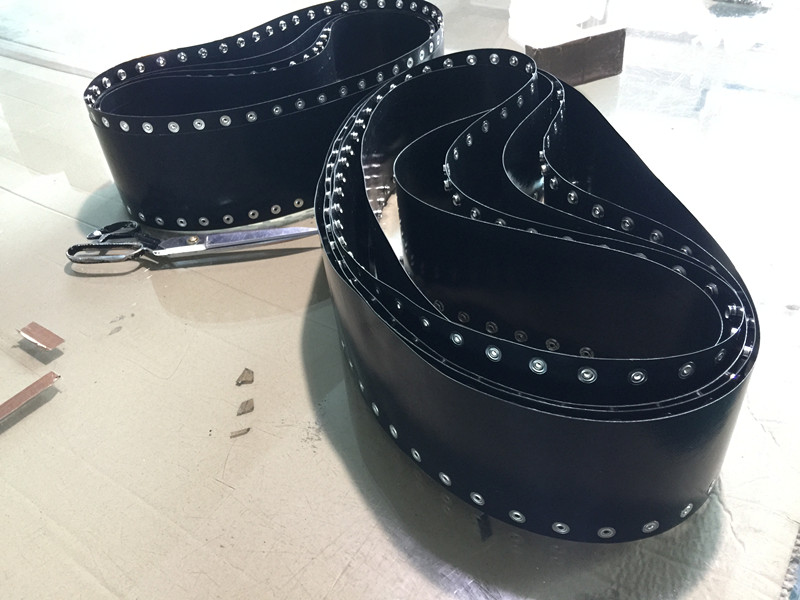

Oshima Fusing Belt

Oshima Fusing Belt



Specification of seamless belt



Material PTFE coated fiberglass fabric
Color Black/brown/white
Thickness 0.38mm-0.40mm / 0.50mm
Heat-resistance -70c to +360c
Special requirement Anti-static/ Teflon Kevlar edge reinforcement and guiding rope as required
hashima fusing belt

hashima fusing belt



Popular sizes of Oshima fusing machine belt



OP-450GS : 460*1530/1840mm

OP-450GSL: 460*1530/2440mm

OP-520GS : 520*1530/1840mm

OP-520GSL:520*1530/2440mm

Note: we can make the belt according to your required size.

Available length of seamless belt: 1360mm to 6700mm; Max width: 1600mm.



Standard Thickness: 14.0~16.0 mil  /  0.35~0.40mm

Width: 20~1600mm

Seamless Belt Girth:  (mm)

1360

1380

1440

1470

1510

1520

1530

1540

1550

1560

1580

1600

1640

1660

1680

1730

1740

1780

1820

1830

1840

1850

1870

1880

1950

2000

2040

2100

2230

2240

2250

2310

2320

2420

2440

2450

2500

2600

2630

2750

2800

2820

2850

2880

2900

3050

3080

3090

3200

3450

3540

3590

3820

3850

3890

3900

3920

3930

4200

4270

5100

5270

5400

5640

5800

6000

6440

6700



Packing of Teflon endless belt



We packed the belts with several paper tubes inside, which greatly protected the belt from being damaged.

Outside is protected with bubble film and then in carton box.

Customer’s Logo could be marked on the surface.



Endless Belt

Endless Belt



Veit fusing belts

Veit fusing belts



Why choose our product



Our Seamless Belt is excellent compatible with many well-known fusing machines in the world, such as Hashima, Oshima, Meyer, Martin, Kannegiesser&etc.
