Silicone Adhesive Tape YS7011AJ

Silicone Adhesive Tape YS7011AJ

Silicone Adhesive Tape YS7011AJ, hot selling Industrial PTFE adhesive tape

Silicone Adhesive Tape coated with PTFE, has anti-stick surface and heat resistant property, the basic construction is woven fiberglass fabric, which gives strong mechanical strength.

This heat resistant and non stick adhesive tape allows for easy release, while making sure good mechanical strength and dimensional stability.

ESONE Silicone adhesive tape is the product of choice where there is a request for continuous and efficient processing, offering superior initial tack, excellent bonding strength and long lasting performance up to 500˚F/260˚C.



Silicone adhesive tape

Silicone Adhesive Tape has durability and anti-stic properties, which can be used a lot for lining of guide rails, chutes and slides. The basic construction is woven glassfiber fabric, which gives strong strength.



Properties of Silicone adhesive tape



  Excellent dimensional stability and durability in heat.

  Superior easy mold release property, excellent Non stick

  operating continuous from -70°C and +260°C

  Flame resistant

  High dielectric constant

  Good mechanical strength

Regular size for Teflon adhesive tapes



Normal size is 1 meter wide, 30/50/100 meters long per roll, with yellow release liner.

Teflon adhesive tape

Teflon adhesive tape

Or can be cut into small roll, like 1.2cm, 2.5cm, 5cm, 7.5cm, 10cm wide and so on, 5m, 10m, 30m, 50m per roll.

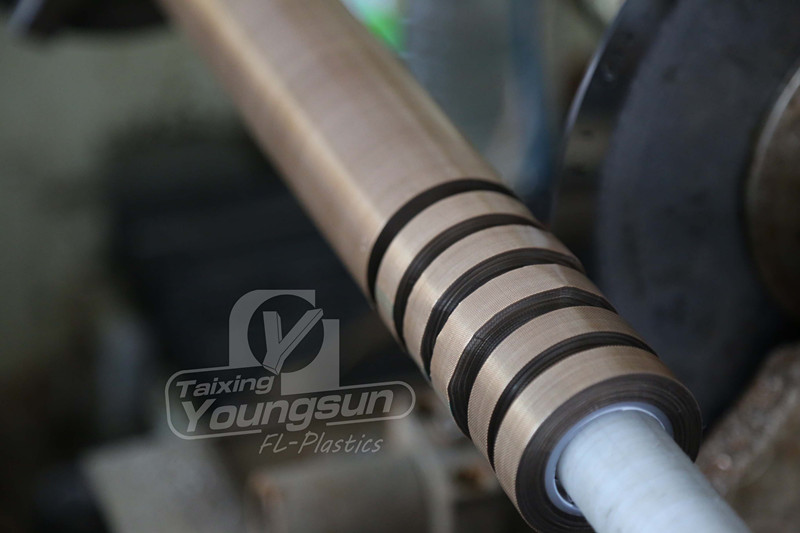

Teflon Adhesive Sheet

Teflon Adhesive Sheet





Technical Data Sheet of PTFE adhesive tapes



ProductProduct CategoryCoating
PTFE GLASS FABRIC SELF ADHESIVEINDUSTRIAL SERIESSILICONE PSA



PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1250 mm39.5, 49.3 inches
Backing Thickness
PTFE glass
0.11 mm0.0043 inches
Total Thickness
PTFE glass and adhesive
0.16 mm0.0063 inches
Baking weight
PTFE glass
220 g/m² 6.5 oz/yd²
Tensile Stength
PTFE glass
240 N/cm Warp137 lbs/inches Warp
200 N/cm Fill114 lbs/inches Fill
Adhesion5.4 N/cm49 oz/inches
Temperature resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS7011AJ-ESONE



For samples of Silicone Adhesive Tape ,  please feel free to contact us.
Other Width is also available, you can contact us for more information

Note:
Thickness Tolerance mm= ±%5
All technical data are based on average values.

These values are based on test results we believes to be reliable.



One Comment

  1. Raju 2019年4月16日 at pm2:27 - Reply

    plz mention about supporting material & electrical strength.
