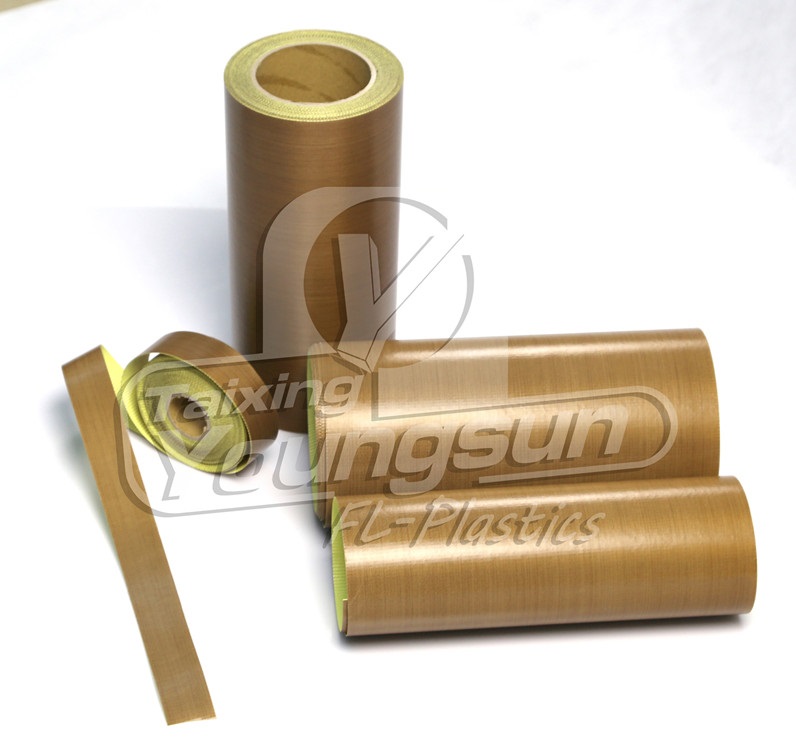

Tear Resistant Teflon coated Tape

Tear Resistant Teflon coated Tape

Tear Resistant Teflon coated Tape, release tape with excellent mechanical strength

Tear Resistant Teflon coated Tape, is using high tensile PTFE coated fiberglass fabric as basic material, and one side chemical treated, in order for bonding Silicone PSA on the back.

This Teflon tape with high mechanical strength has much longer lifetime than normal PTFE adhesive fabric, which is designed for high request industry, such as mold release tape in vacuum bagging system, release fabric for polybag manufacturing, heat insulation tape for cable wrapping industry and so on.



Tear Resistant Teflon coated Tape

Tear Resistant Teflon coated Tape



Tear resistant PTFE Glass Cloth Tape



Teflon adhesive fabric is an assistant consumables in the production like Lamination, Heat-Press, Vulcanization, Drying, Heat-sealing, Printing & Dyeing, Isolation and so on, because Teflon adhesive tape has non stick surface and high dielectric strength, is chemical resistant and heat resistant.

In this case, the property of Teflon coated Tape will effect the quality of final product directly. Increasing the durable property of High heat Teflon tape will reduce the production cost also.



PTFE Mold release tape

PTFE Mold release tape



Tear Resistant PTFE adhesive backed tape has much higher mechanical strength, so it will not be tore after release and can be reused for many times.

This property is very important in application using high pressure like Lamination, vacuum bagging system, Heat press and so on.



Process of Tear Resistant Teflon coated Tape



The basic material is customized, which is using stronger yarn to offer higher mechanical strength in the beginning of production. And special formulated PTFE (Teflon) will be coated on the fiberglass. After that, PTFE fabric will be one side chemical treated, in order for bonding silicone PSA or acrylic adhesive.

During all the process, ESONE’s Teflon coated Tape will be coated carefully so that the tension lost will be minimized.

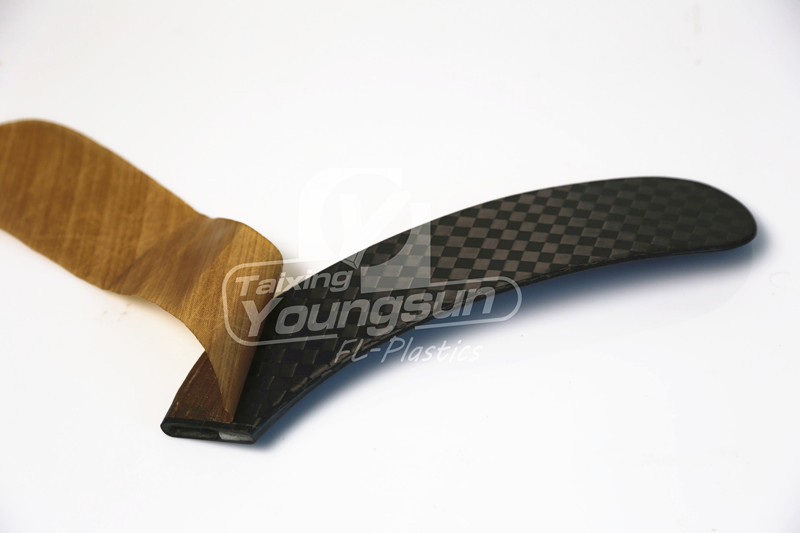

Tear Resistant PTFE fabric for release of carbon fiber reinforced

Tear Resistant PTFE fabric for release of carbon fiber reinforced



Property of High temperature Teflon tape



  Superior non-stick surface, easy to release and clean
  Extra strong mechanical strength
  Outstanding temperature resistance (continuous working from -170°C to +260°C)
  Non-toxic and compliant for food applications, FDA & LFGB certificated
  Strong resistance to almost all chemicals
  Excellent dimensional stability, strong tensile strength and tear strength
  Flexibility
  High electrical insulating power, strong resistance to electric arc
  Resistance to microwaves, UV and RF and HF.



Technical Data Sheet of PTFE coated Fiberglass Tape



ProductProduct CategoryCoating
PTFE GLASS FABRIC SELF ADHESIVETEAR RESISTANT SERIESSILICONE PSA



PTFE Tear Resistant Adhesive Fabric
StyleStandard Width(mm)
Please ask for other widths
Backing Thickness (mm)Total Thickness (mm)Weight
(g/m2)
Adhesive
(N/cm)
Tensile Strength Warp/Fill
(N/cm)
YS7007AT-ESONE10000.070.1151304150/141
YS7013AT-ESONE10000.130.172704.5270/250



Click here to access PTFE Tear Resistant Fabrics
