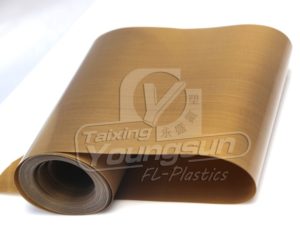

PTFE Glass Cloth Tear Resistant, increased tear and crease strength property.
PTFE Glass Cloth Tear Resistant, by coating with specially formulated material, and using special fiberglass with high mechanical strength, which highly improved the tensile strength and tear strength.
This Tear resistant fabric is designed for aerospace industry, packaging industry, food processing industry, Tortilla production industry, PVC door & window welding industry and so on. In order for generating longer lifetime than normal PTFE coated cloth.
Why use Teflon Tear Resistant Fabric
Teflon Tear Resistant Cloth is produced for applications in tough working environment, like continuous high pressure and high temperature, or used for minimize the downtime of machines, ensure the quality of processed product.
PTFE Glass Cloth Tear Resistant is typically used in applications requiring high-flex properties or belting applications with small diameter pulleys.
For aerospace industry, PTFE Tear Resistant Cloth is used to resist the high pressure during curing and laminating, also offers the non stick surface. Due to the high mechanical strength of this release fabric, the mold release tape can be reused many times.
PTFE bleeder cloth (Porous PTFE fabric) is also specially formulated in order for increasing the tensile strength.
For packaging industry and food processing industry, PTFE Tear Resistant Fabrics with or without adhesive, is designed for increasing the lifetime of release sheet, and guarantee the quality of the processed product.

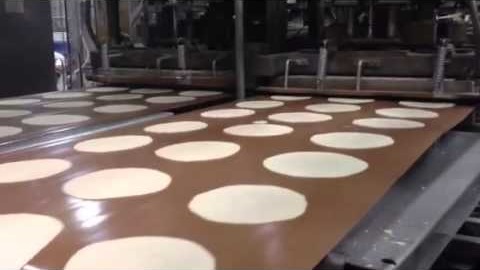

For Tortilla production, in order to resist the continuous pressure, high temperature and oil leaking, PTFE fabric will be requested to have an abrasion resistant, tear resistant property, and a smooth surface without pin holes.
Property of Teflon Tear Resistant Fabric
Technical Data Sheet of PTFE Tear Resistant Cloth
|PTFE GLASS FABRIC||TEAR RESISTANT SERIES||PTFE|
|Standard width |
Please ask for other widths
|1000 mm||39.5 inches|
|Thickness||0.075 mm||0.0030 inches|
|Coated weight||135 g/m²||4 oz/yd²|
|PTFE content||64 %||64 %|
|Tensile strength||190 N/cm Warp||109 lbs/inches Warp|
|180 N/cm Fill||103 lbs/inches Fill|
|Temperature resistance||-73 to +260 °C||-100 to +500 °F|
Click here to download the TDS of YS9008AT-ESONE
Tear Resistant PTFE Glass Cloth could be made into PTFE self adhesive Tear resistant fabric, or Anti-static tear resistant PTFE cloth.
