PTFE Mold Release Tape

PTFE Mold Release Tape

PTFE Mold Release Tape, used for Aircraft composites manufacturing

PTFE Mold Release Tape, make of woven fiberglass coated with high quality PTFE(TEFLON), and back side coated with Silicone PSA. This mold release tape has higher tensile strength than normal self adhesive PTFE fabric. In this case, ESONE adhesive tape will be easily took down after repeatedly used.

ESONE mold release adhesive fabric is used to stick the molding, for the manufacturing of aircraft composites, wind power blade composite, like satcom and weather radomes, helicopter rotor blade, structural components like wings, tail section, fuselage component and so on.



PTFE mold release tape

PTFE mold release tape

How to use Vacuum bagging bleeder cloths



PTFE Mold release tape for Vacuum Bagging

PTFE Mold release tape for Vacuum Bagging



Click here to access the Vacuum Bagging Bleeder Cloths

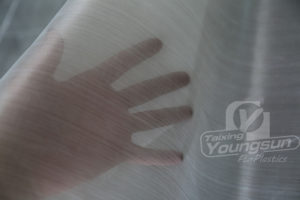

Porous Teflon Sheet

Porous Teflon Sheet

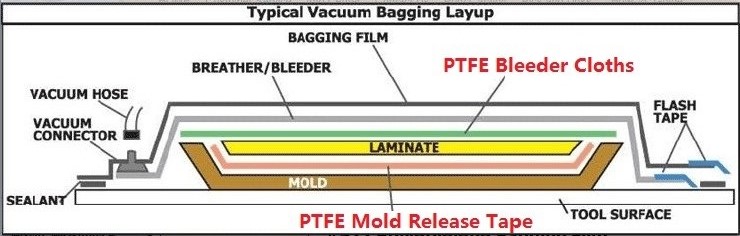

Vacuum bagging system is consist of vacuum bag, ventilated felt, cover, isolating membrane, bleeder, bleeder cloth(Porous PTFE fabric), composite, PTFE Mold Release Tape(PTFE adhesive fabric) and molding.

After extracting vacuum, autoclave molding will release high temperature, high pressure by adding heat compression air, for the curing and molding of the composite. And ESONE PTFE coated fabric will provide a easy and clean release after curing process, air, resin and volatile will be allowed for escaping.

The surface of composite will be excellent smooth by using PTFE Mold Release Tape and Vacuum bagging bleeder cloths, and composite will be very easy to peeled off from the PTFE peel ply after cured.



Property of PTFE Release Film



  Easy release and non stick.

Composite will be easy and clean released from bleeder cloths.



  Create super smooth surface for composite

After release, the composite will have a excellent smooth and shiny surface, such as resin reinforced carbon fiber bonnet of automotive.



  Strong mechanical strength

PTFE Mold Release Tape has high tensile strength, which can resist the several cycles of high pressure in vacuum bagging and is reusable, due to adhesive tape will not be tore when releasing from molding.



In these applications, the release property, mechanical strength and porosity of PTFE Mold Release Tape is critical to the manufacturing process and the quality of the composites.



Applications of PTFE molding release tape

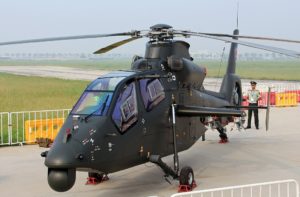

1) Helicopter blade

ESONE is selling PTFE mold release film and bleeder cloth to Helicopter blade industry, which has high request of the mechanical strength, in order for reuse mold release tape many times.

PTFE mold release film for Helicopter blade

PTFE mold release film for Helicopter blade

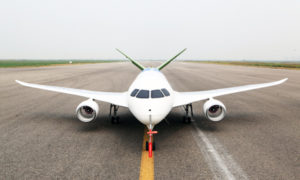

2) Airplane composite manufacturing

ESONE PTFE coated fabric is used in composite mold protection and release liners, vacuum bagging bleeder cloths, which result in a excellent smooth and shiny surface of the airplane composite, like fuselage components, wings, tail and so on.



PTFE bleeder cloth for aircraft composite

PTFE bleeder cloth for aircraft composite



PTFE mold protection fabric for aircraft composite

PTFE mold protection fabric for aircraft composite

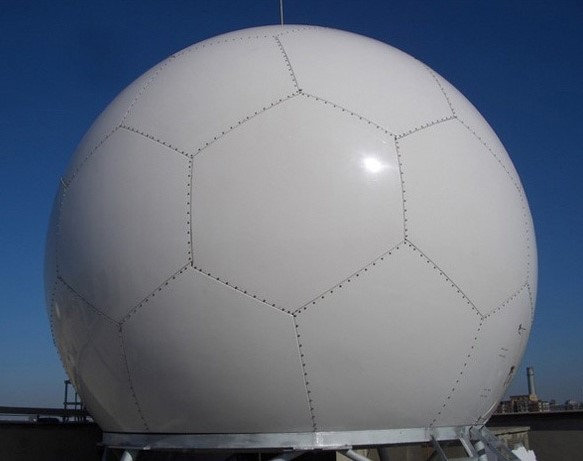

3) satcom and weather radomes

Satcom and weather radomes are made of resin reinforced fiberglass composite, which will use vacuum bagging system for composition.



PTFE fabric for satcom and weather radomes

PTFE fabric for satcom and weather radomes



4) Wind power blade composite

Molding for wind power blade is very large and long, if PTFE mold release fabric or bleeder cloth got any problem, then all the molding will be influenced. In this case, this industry has high request of the quality of PTFE coated fabric.



Bleeder cloth for wind power blade

Bleeder cloth for wind power blade

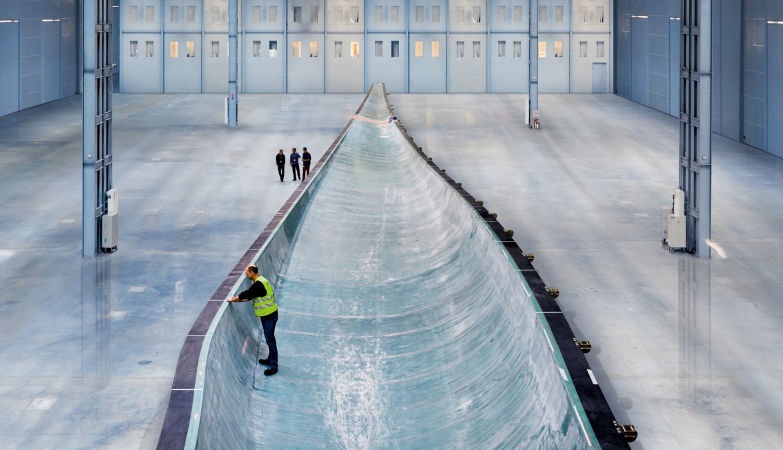

Mold release of wind power blade

Mold release of wind power blade



Specification of PTFE Bleeder Cloth



ProductProduct CategoryCoating
PTFE GLASS FABRICPOROUS SERIESPTFE



PropertiesMetricImperial
Standard width
Please ask for other widths
1000 mm39.5 inches
Thickness0.06 mm0.0024 inches
Coated weight66 g/m² 1.95 oz/yd²
PTFE content27 %27 %
Porosity20-100 cfm20-100 cfm
Tensile strength160 N/cm Warp91.5 lbs/inches Warp
146 N/cm Fill83.5 lbs/inches Warp
Temperature resistance-73 to +260 °C-100 to +500 °F



Technical data sheet of PTFE Mold Release Tape, YS7007AT-ESONEYS7013AT-ESONE

Related product like PTFE bleeder cloth(PTFE porous fabric), and PTFE non porous fabric for mold release, YS9007AJ-ESONEYS9013A-ESONEYS9006P-ESONE

6 Comments

  1. Dan 2018年7月19日 at am10:48 - Reply

    Where can I buy this mold release PTFE tape?

    • Ms. PTFE 2018年7月19日 at am11:14 - Reply

      Hi Dan, thanks for your inquiry! ESONE is a global company of PTFE coated adhesive fabric and is selling to customers all over the world.
      Our sales team will contact with you soon:)

  2. Ody R. Rigonan 2018年7月19日 at am10:50 - Reply

    How many times can this mold release PTFE tape been used in vacuum tank industry

    • Ms. PTFE 2018年7月19日 at am11:16 - Reply

      Hi Ody R.Rigonan, thanks for your comment!
      Customer’s request is 5 times normally, but the actual using time is according to the working temperature, resin type, operating mode and so on.
      Our sales team will contact with you soon:)

  3. Matt Borgic 2019年2月17日 at pm7:06 - Reply

    Would it be possible to get a sample of your porous PTFE fabric?
