PTFE Fabric for Insulation Jacket

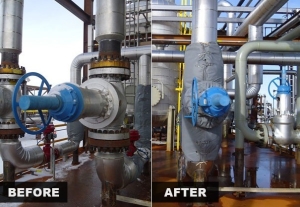

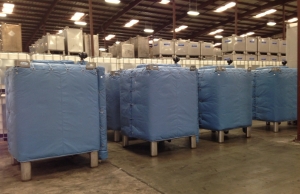

PTFE Fabric for Insulation Jacket is made with fluoropolymer coated glass fabrics, is designed for removable insulation jackets / covers / blankets, this fabric is UV, chemical and flame resistant, has high tensile strength and can resist heat to 600F.
Comparing to silicone fabric, PTFE fabric can resist higher temperature to 600F, has stronger chemical resistance & anti-environmental property, and has self-cleaning surface.
ESONE is offering following spec.
- Width: Maximum 1500mm, other width such as 1000mm is available
- Weight: 16.5 oz/yd², 18 oz/yd², 34 oz/yd² and others
- Property: Can be made with Anti-static
fluorin rubber coated glass fabrics
Description： Youngsun fiberglass coated with fluorin rubber is a fire [...]

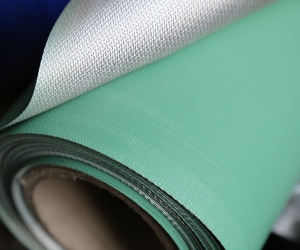

16.5 oz One Side PTFE impregnated Fabric
PTFE impregnated fabric, specially for Thermal insulation jackets PTFE impregnated [...]
18 oz Both Side PTFE impregnated Fabrics
PTFE impregnated Fabrics, flame resistant insulated jacket PTFE impregnated Fabrics 18oz, [...]
For oil & gas, chemical, military and many other industry which have harsh working environment, PTFE fabrics are required to be the insulation fabric for resisting high temperature, strong chemical, high pressure etc.
Since there are many pipelines are transporting different material, such as steam, natural gas, chemical liquid and so on, so PTFE fabric with DIFFERENT COLORS are needed to showing the inside material.

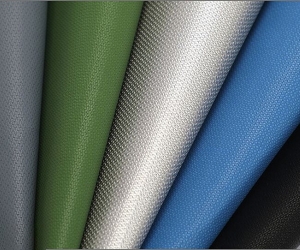

The standard colors are Grey, Black, Green, Blue, Red, Yellow and so on. Special colors can also be customized.
| PTFE Fabric for Insulation Jacket | |||||
|---|---|---|---|---|---|
| Style | Coating | Standard Width(mm) Please ask for other widths | Color | Weight (oz/yd²) | Working Temperature |
| YS9018HD-ESONE | One side | 1500 | Gray/White/Yellow/Blue or others | 6.5 (220 g/㎡) | -73 to +315 °C |
| YS9024HD-ESONE | One side | 1500 | Gray/White/Yellow/Blue or others | 7.7 (260 g/㎡) | -73 to +315 °C |
| YS9038HD-ESONE | One side | 1500 | Gray/White/Yellow/Blue or others | 16.5 (560 g/m²) | -73 to +315 °C |
| YS9038HS-ESONE | One side | 1500 | Black Anti-static | 16.5 (560 g/m²) | -73 to +315 °C |
| YS9038HS-ESONE(ELASTIC) | One side | 1500 | Black Anti-static | 16.5 (560 g/m²) | -73 to +315 °C |
| YS9040HD-ESONE | Both sides | 1500 | Gray/White/Yellow/Blue or others | 18 (650 g/m²) | -73 to +315 °C |
| YS9045HS-ESONE | Both sides | 1500 | Black Anti-static | 18 (650 g/m²) | -73 to +315 °C |
| YS9086HD-ESONE | One side | 1500 | Gray/White/Yellow/Blue or others | 34 (1150 g/m²) | -73 to +315 °C |
