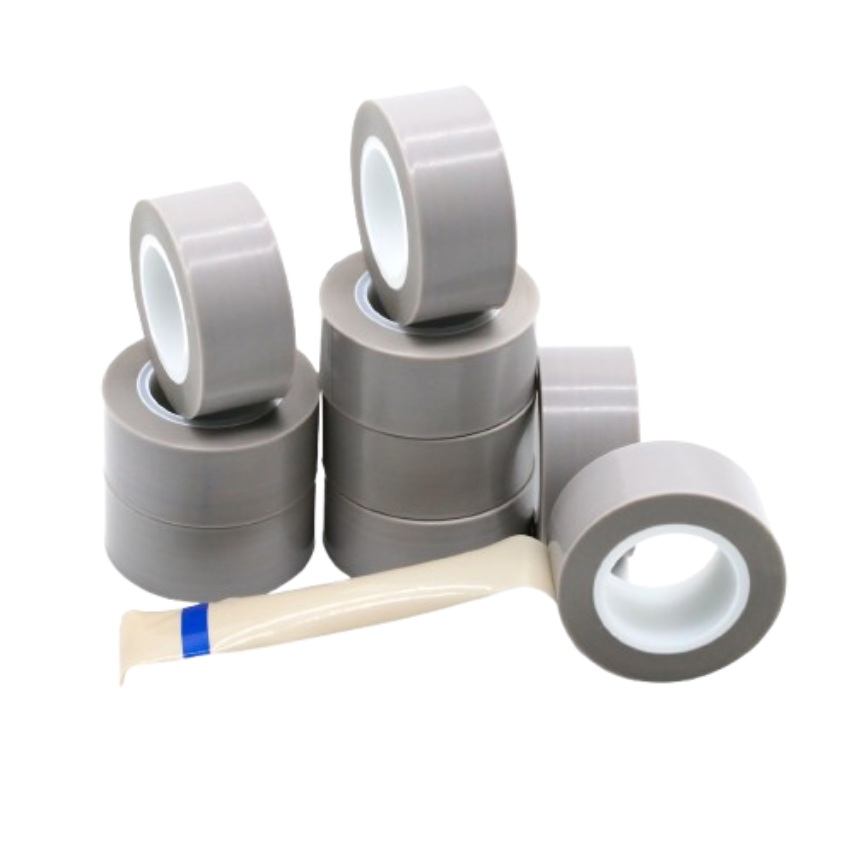

PTFE Film Adhesive Tapes with High Elongation
PTFE film adhesive tapes consist of silicone or acrylic adhesive applied to a base material made of pure PTFE skived film. This PTFE film adhesive tape has low coefficient of friction, high dielectric strength and high flexibility, they are widely used in wire and cable wrapping, lithium battery packaging, heat sealing in aircraft industry, oil & gas industry and other industries.
Specification of PTFE Film Adhesive Tapes with High Elongation
- Color: Gray, White and others
- Width: Max 1050mm(41.3 inches), any slit width is available
- Thickness: total thickness ranging from 0.05mm to 0.50mm
TDS of PTFE Film Adhesive Tapes with High Elongation
PTFE Film Adhesive Tapes with High Elongation are electrical insulating tapes featuring PTFE film base. Its high elongation rate makes it very flexible, enhancing its suitability for various applications. The tape also offers excellent electrical properties, a low friction coefficient, and strong resistance to heat and chemicals. This combination makes it ideal for heat sealing, heat-resistant masking, and electrical insulation.
| PTFE Film Adhesive Tapes with High Elongation | ||||||
|---|---|---|---|---|---|---|
| Adhesive Type | PTFE Film Thickness mm(inch) | Total Thickness mm(inch) | Tensile Strength N/50mm(N/2inch) | Dielectric Strength KV | Percentage of Elongation % |
|
| YS7905-ESONE | Silicone PSA | 0.03(0.0012) | 0.05(0.0020) | 50(50) | 4 | 200 |
| YS7908-ESONE | Silicone PSA | 0.05(0.0020) | 0.08(0.0032) | 250(250) | 6.5 | 150 |
| YS7908B-ESONE | Silicone PSA | 0.05(0.0020) | 0.08(0.0032) | 250(250) | Anti-static | 150 |
| YS7908AJY-ESONE | Acrylic PSA | 0.05(0.0020) | 0.08(0.0032) | 250(250) | 6.5 | 150 |
| YS7910-ESONE | Silicone PSA | 0.050(0.0020) | 0.10(0.0040) | 270(270) | 8 | 150 |
| YS7913-ESONE | Silicone PSA | 0.09(0.0035) | 0.13(0.0050) | 300(300) | 13 | 150 |
| YS7913AJY-ESONE | Acrylic PSA | 0.09(0.0035) | 0.13(0.0050) | 300(300) | 13 | 150 |
| YS7918-ESONE | Silicone PSA | 0.13(0.0050) | 0.18(0.0070) | 250(250) | 13 | 350 |
| YS7913B-ESONE | Silicone PSA | 0.13(0.0050) | 0.18(0.0070) | 250(250) | Anti-static | 350 |
| YS7918AJY-ESONE | Acrylic PSA | 0.13(0.0050) | 0.18(0.0070) | 250(250) | 13 | 350 |
| YS7930-ESONE | Silicone PSA | 0.25(0.010) | 0.30(0.018) | 350(350) | 16 | 250 |
| YS7950-ESONE | Silicone PSA | 0.35(0.0138) | 0.50(0.020) | 420(420) | 25 | 250 |
Related Document
PTFE Film Adhesive Tapes with High Elongation (TDS)
ESONE PTFE film adhesive tape has high elongation rate makes it very flexible, enhancing its suitability for various applications.
PDF| 498kb
PTFE High Modulus Film Adhesive Tapes (TDS)
PTFE High Modulus Film Adhesive Tape is an electrical insulating tape made with a unidirectionally oriented PTFE orange film base.
PDF| 498kb
