UHMW Film
UHMW Film (ultra-high molecular weight polyethylene) is designed for general applications requiring release, non-stick properties, or enhanced robustness. These films offer superior abrasion resistance and durability under mechanical stress, along with self-lubricating characteristics similar to Skived PTFE Films. Their anti-stick surface and sound-deadening properties make them ideal for demanding applications.
Additionally, Skived UHMW-PE Films can be bonded without etching, using methods such as thermal activation or bonding agents. UHMW exhibits exceptional abrasion resistance, often surpassing that of steel. With broad chemical resistance and a low coefficient of friction, UHMW serves as a versatile engineering material suitable for severe duty applications.
Characterized by its slipperiness akin to PTFE, UHMW polymers possess a molecular weight average ten times greater than that of conventional high-density polyethylene resins, enhancing their performance in various applications.
Advantages of UHMW-PE Film
- High Abrasion Resistance and Durability
Exceptional resistance to wear and tear, ensuring long-lasting performance.
- Continuous Service Temperature
Capable of withstanding temperatures up to 90°C.
- Self-Lubricating Properties
Similar to PTFE, providing reduced friction in applications.
- Anti-Stick Surface:
Designed to minimize adhesion, making it ideal for release applications.
- Sound Deadening
Effective in reducing noise, enhancing user experience.
- Bondable Without Etching
Can be easily bonded using thermal activation or bonding agents.
Specification of skived UPE Film
Our UHMW-PE films can be produced in widths up to 2,000 mm (78.7in) and thicknesses from 25µm to 1,500µm. Additionally, we can accommodate special thicknesses, widths, or other specifications upon request.
Color: White or Semi-conductive Black
UHMW Film UPE Film
Applications of UHMW Film
Provide chemical resistance, pressure durability, and protection of identification markings, extending service life.
- Chemical, fuel, and hydraulic hoses
- Abrasion-resistant hose coverings
Reduce friction and wear, improve efficiency, and increase durability of conveying systems.
- Chute linings
- Rubber belting surfaces
Offer gas- and liquid-tight barriers, suitable for ambient and cryogenic conditions, enhancing sealing and durability.
- Tank liners
- Elastomer laminates
Withstand high wear environments, reduce friction and noise, and improve operational efficiency in automotive and industrial machinery.
- Release materials
- Low-friction & anti-squeak components
| UHMW Film | ||
|---|---|---|
| General Properties | Test Method | |
| Specific Gravity | ASTM D792 | 0.96 |
| Standard width mm(in) | Maximum 2,000(78.7) | |
| Thickness Available mm(mil) | 0.025 to 1.5 (1 to 60) | |
| Colors | White or Semi-conductive Black | |
| Mechanical Properties | ||
| Surface finish | DIN EN ISO 4288 | Rt ≤ 10 µm |
| Coefficient of friction | 0.1 | |
| Tensile Strength MPa(psi) | ASTM D882 | ≥30(4350) |
| Elongation at Break % | ASTM D882 | ≥180 |
| Thermal Properties | ||
| Continuous Use Temp ℃(℉) | UL-746B | -200 ~ +80 (-328 ~ 176) |
| Melt Point ℃(℉) | ASTM D3418 | 130(266) |
| Surface Treatments Available | ||
| Adhesive Bondable | Yes | |
Related Document
UHMW Film (TDS)
ESONE UHMW films are skived from ultra-high molecular weight polyethylene rods.
PDF| 314kb

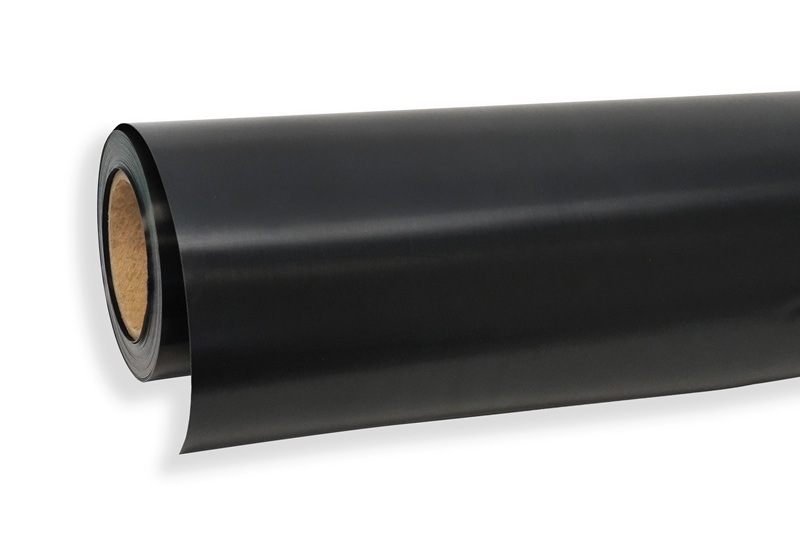

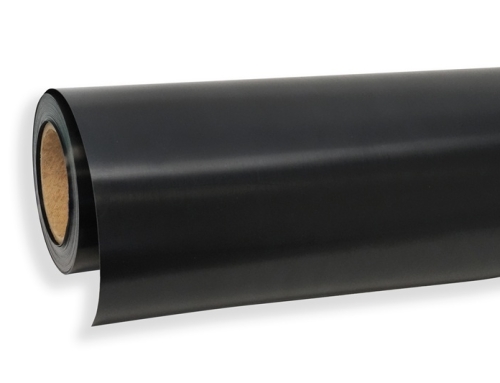

Semi-Conductive Black UHMW Film (TDS)
ESONE Semi-conductive black UHMW films are skived from ultra-high molecular weight polyethylene rods with carbon filler inside.
PDF| 335kb
