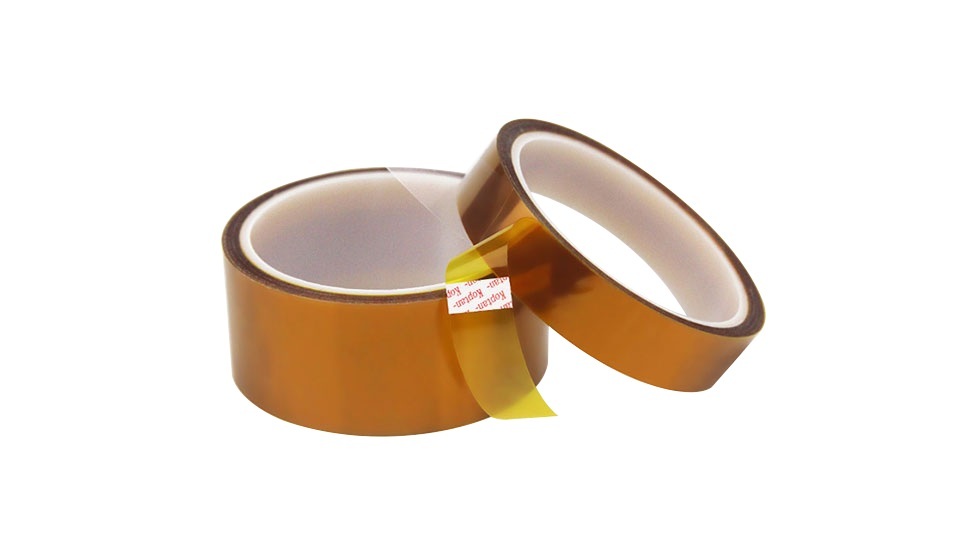

Double Sided Kapton Tape
Double sided Polyimide Film Adhesive Tape
Double sided Polyimide Film Adhesive Tape, also referred to as double-sided Kapton tape, is made from a 0.025mm(1mil) polyimide film substrate and is coated with imported silicone pressure sensitive adhesive on both sides. With a total thickness of 0.1mm, it features either a double-sided or single-sided composite PET fluorine release liner.
This high-temperature resistant tape offers excellent insulation, wear resistance, and resistance to acids and alkalis. It can withstand temperatures of up to 280℃(536℉) for 30 minutes and can be used continuously at 260℃(500℉).
Advantages of Double Sided Kapton Tape
- Strong Adhesion: Offers excellent sticking power with good serviceability, ensuring durability.
- Insulation & Wear Resistance: Provides excellent insulation, wear resistance, and acid and alkali resistance, usable at 280℃ for extended periods.
- High Temperature & Solvent Resistance: Capable of withstanding high temperatures and resistant to solvents, with no tin penetration and no residual glue left after removal.
- Electrical Properties: Exhibits excellent electrical properties, low voltage performance, and good mechanical strength, including friction and tear resistance.
- Customization: Available in a variety of specifications ranging from 5mm to 500mm, customizable according to specific requirements.
TDS of Double sided Polyimide Film Adhesive Tape
| Model Name | Adhesive Type | Total Thickness mm(mil) | Back Thickness mm(mil) | Adhesion to Steel N/cm(oz/in) | Tensile Strength N/cm(lb/in) | Elongation (% at break) | Dielectric Strength volts | Operating Temperature ℃(℉) |
|---|---|---|---|---|---|---|---|---|
| YS7710SB | Both sides with Silicone | 0.10(4) | 0.025(1) | 2.2/2.2 (20/20) | 53(30) | 50 | 7,500 | -73 to +260 (-100 to +500) |
