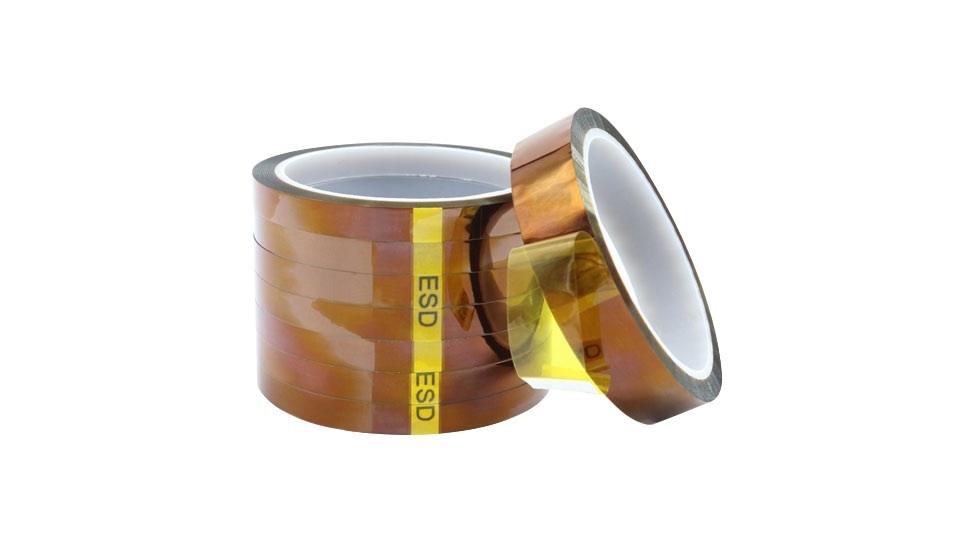

ESD Kapton Tape
Antistatic polyimide film adhesive tape
Antistatic polyimide film adhesive tape, also known as ESD Kapton Tape, ESD PI Tape, or ESD Polyimide Tape, is manufactured from a polyimide film treated for antistatic properties on both sides. This treatment utilizes proton bombardment technology in a plasma environment, achieving a static index of up to 10^5 without adding any additives or coatings, preserving the film’s original properties. The adhesive used has double the bonding strength compared to regular products.
The tape features a single-sided high-performance silicone pressure-sensitive adhesive. The surface resistance on the back is less than 10^7 ohms, while the coated surface is below 10^9 ohms. The stripping electrostatic voltage is under 50V, ensuring that electronic components remain safe from static discharge during application.
Advantages of ESD Kapton Tape
- Easy Peeling: Strong adhesion without leaving any residue upon removal, ensuring a clean surface.
- High-Temperature Resistance: Excellent heat insulation, ideal for protecting electronic and electrical components.
- Peeling Voltage: Very low peeling voltage (≤ 50 V), making it suitable for PCB processes that require effective anti-static measures.
- Anti-Static Properties: Excellent anti-static effect with resistance levels on the back (≤ 105 ~ 8Ω/sq) and on the silicone adhesive surface (≤ 109 ~ 10Ω/sq).
TDS of Anti-static Polyimide Film Adhesive Tape
| Model Name | Adhesive Type | Total Thickness mm(mil) | Back Thickness mm(mil) | Adhesion to Steel N/cm(oz/in) | Tensile Strength N/cm(lb/in) | Elongation (% at break) | Dielectric Strength volts | Operating Temperature ℃(℉) |
|---|---|---|---|---|---|---|---|---|
| YS7706SE | Silicone | 0.065(2.5) | 0.025(1) | 2.2(20) | 53(30) | 50 | 6,500 | -73 to +260 (-100 to +500) |
Related Document
Antistatic polyamide film adhesive tape (TDS)
Antistatic polyamide film adhesive tape is manufactured from a polyamide film treated for antistatic properties on both sides.
PDF| 369kb

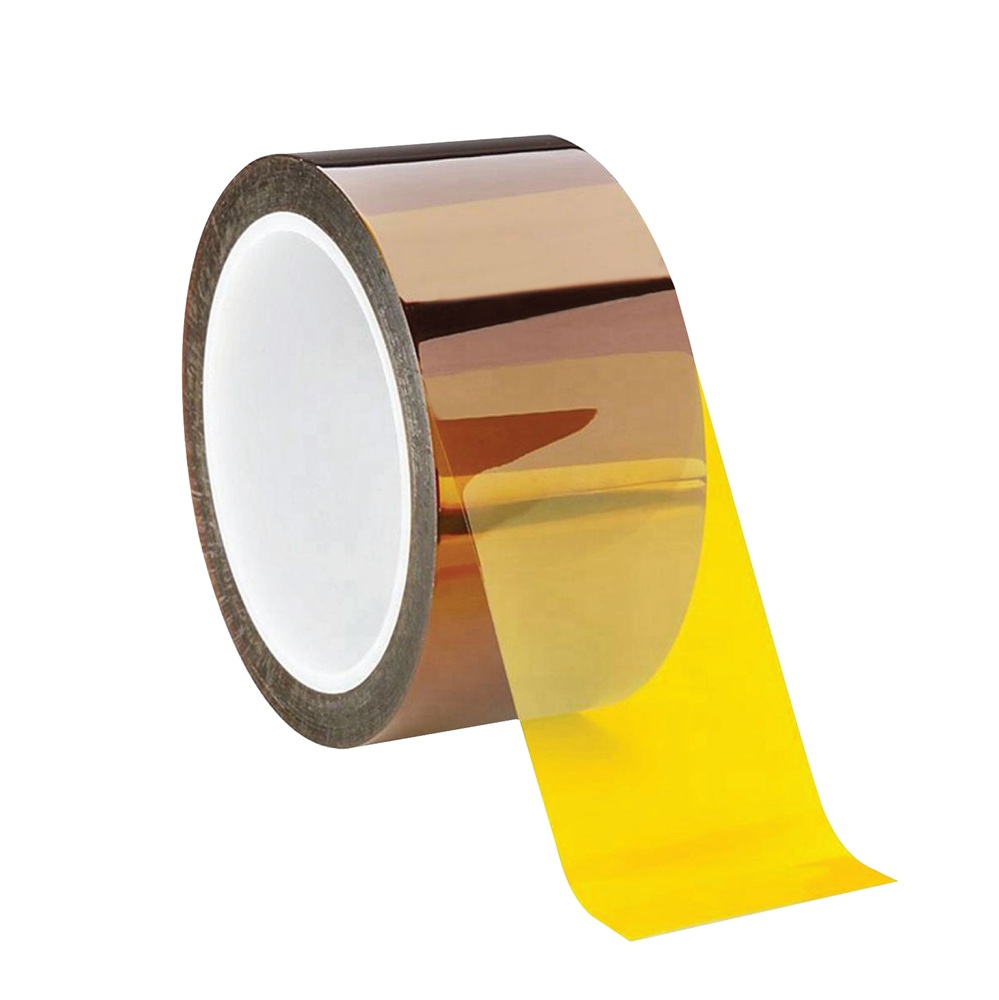

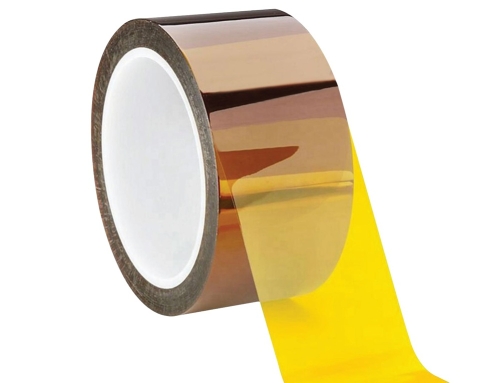

Polyimide Film Adhesive Tape (TDS)
Polyimide film adhesive tape is made from polyimide film, providing exceptional heat and chemical resistance.
PDF| 520kb
Double sided Polyimide Film Adhesive Tape (TDS)
Double sided Polyimide Film Adhesive Tape is made from polyimide film and coated with silicone pressure sensitive adhesive on both sides.
PDF| 373kb
