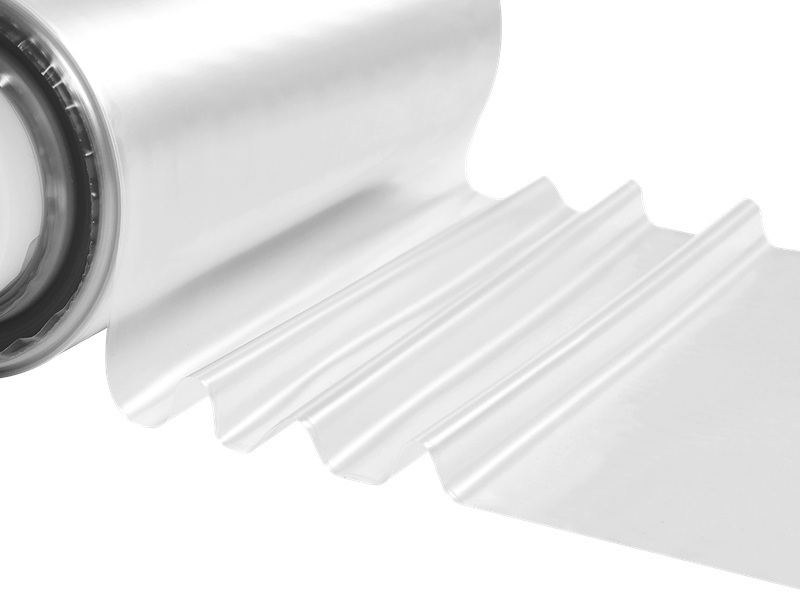

THV Film
THV Film
ESONE’s THV (Tetrafluoroethylene-Hexafluoropropylene-Vinylidene fluoride) Fluorothermoplastic, a polymer made from tetrafluoroethylene, hexafluoropropylene, and vinylidene fluoride, offers unique advantages such as bonding capabilities with elastomers and hydrocarbon-based plastics, along with flexibility and optical clarity. ESONE THV films, produced via melt extrusion casting from THV resin, exhibit exceptional performance characteristics, including low processing temperatures and excellent flexibility. These films can be heat-sealed, thermoformed, and laminated to various substrates, making them ideal for multilayer hoses, tubes, sheets, and films.
Advantages of THV Foil
- Very high optical clarity and light transmission
- Outstanding flexibility compared to other fluoroplastics
- Good weatherability and UV stability
- Flame retardant and good dielectric properties
- Excellent chemical and permeation resistance
- Bondable to itself and other substrates for multilayer constructions
- Low processing temperatures for co-processing with olefinic plastics and hydrocarbon elastomers
Specification of THV Film
- Standard Thicknesses: Available in 100um, 150um and 250um (0.004’’, 0.006’’ and 0.010’’), other thicknesses available upon request
- Standard Width: 300mm (11.8’’) and 1,600mm (63’’), custom slit widths available upon request
- Standard Color: Clear/natural, with custom colors available upon request
- Surface Treatment: Bondable, chemically etching, plasma-treated surfaces available upon request
Applications of THV Film
Clean POD devices in the semiconductor industry are made from advanced THV and ePTFE (modified Polytetrafluoroethylene) composites. These materials offer excellent chemical resistance, low permeability, and high thermal stability, making them ideal for protecting sensitive electronic components.
The combination enhances reliability and performance, ensuring effective sealing against contaminants. Customizable in various sizes, these composites meet diverse application needs within the semiconductor sector.
THV films are utilized in fuel and chemical tank linings, drop-in liners, and bag liners due to their exceptional chemical resistance to fuels across a wide temperature range and their low permeability to solvents and gases.
With excellent clarity (<1% haze) and outstanding mechanical and thermal properties, THV film is an ideal interlayer for lamination onto glass or for use between layers in multi-layer glass systems. It enhances fire safety and provides anti-shatter performance in various glass applications.
Thanks to their superior barrier properties, fire resistance, and high solar transmittance, THV films are well-suited for use as back sheets and front sheet glazing in photovoltaic (PV) panels.
| THV Film | ||
|---|---|---|
| General Properties | Test Method | |
| Specific Gravity | ASTM D792 | 1.98 |
| Area Yield m²/kg/um (ft²/lb/mil) | 782 (97) | |
| Flammability | UL-94 | V-0 |
| Water Absoption % | ＜0.01 | |
| Standard width mm(in) | Max 1,600mm (63 inches) Any slit width is available | |
| Thickness Available um(mil) | 100, 150 and 250 (4, 6 and 10) | |
| Colors | Clear | |
| Mechanical Properties | ||
| Tensile Strength MPa(psi) | ASTM D882 | 30(4,500) |
| Elongation at Break % | ASTM D882 | 600 |
| Tensile Modulus MPa(psi) | ASTM D882 | 210(30,000) |
| Folding Endurance (MIT) cycles | ASTM D2176 | ＞100,000 |
| Thermal Properties | ||
| Continuous Use Temp ℃(℉) | UL-746B | 120(250) |
| Melt Point ℃(℉) | ASTM D3418 | 165(330) |
| Electrical Properties | ||
| Dielectric Strength kv/mm(volts/mil) | ASTM D149 | 60(1,500) |
| Dielectric Contant 1kHz | ASTM D150 | 4.8 |
| Optical Properties | ||
| Refractive Index | ASTM D542 | 1.36 |
| Solar Transmission % | ASTM E424 | 95 |
| Haze (4 mil (100 µm) film) % | ASTM E424 | 1 |
| Surface Treatments Available | ||
| Chemical Etching | Available | |
| Plasma Treatment | Available | |
| Applications | ||
| Composite Molding Process: Release Films | x | |
| Chemical Process | √ | |
| Electrical / Electronics | √ | |
| Medical | √ | |
| Optical / Photovoltaics | √ | |
| Protective / Decorative | √ | |
Related Document
THV Film (TDS)
ESONE THV Fluoropolymer Film is produced from Tetrafluoroethylene-Hexafluoropropylene-Vinylidene fluoride resin.
PDF| 367kb
