Heat Resistant Cloth YS9020A-2

Heat Resistant Cloth YS9020A-2

Heat Resistant Cloth YS9020A-2, non stick PTFE release sheet

Heat Resistant Cloth YS9020A, weight is ranging from 320g – 430g, has less PTFE content than YS9023AJ or YS9025AJ, but the non stick property will be enough for some industry, like consumer goods BBQ Mat, Grinding Wheel Manufacture, luxury vinyl tile.

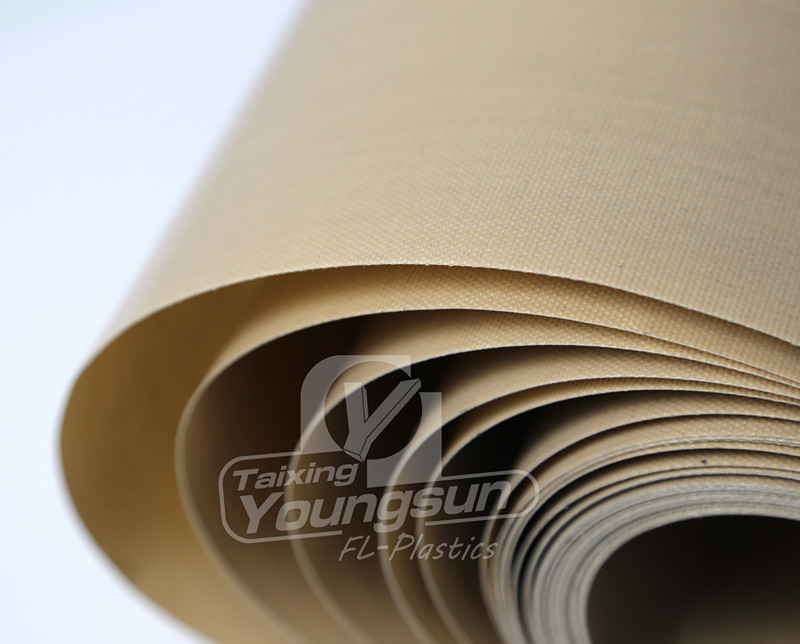

Heat Resistant Cloth

Heat Resistant Cloth



Difference between PTFE fabric YS9020A-1 and YS9020A-2

350 g/sqm Heat Resistant Cloth can use several fiberglass fabric as basic material, such as 7628 or 7638.

By using 7628 glass fiber fabric, the PTFE content will be higher than using 7638 fabric.

But for different industry, it doesn’t mean that high PTFE content will be better for customer’s applicatio



YS9020A-1 is using 7628, has higher PTFE content.

YS9020A-2 is using 7638, has lower PTFE content.



Technical data sheet of YS9020A-2

PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1250, 1500, 1900 mm39.5, 49.3, 59, 74.8 inches
Thickness0.20 mm0.0079 inches
Coated weight350 g/m² 10.32 oz/yd²
PTFE content28 %28 %
Tensile strength490 N/cm Warp281 lbs/inches Warp
445 N/cm Fill256 lbs/inches Fill
Temperature resistance-73 to +260 °C-100 to +500 °F



Click here to download the spec of YS9020A-2-ESONE



Applications of PTFE coated fiber fabric YS9020A



YS9020A is using in many different applications, such as consumers goods, release sheet for flooring.



★   BBQ Mat

BBQ grill mat is a consumer good, which is selling in supermarket, TV shopping or Amazon.

This mat is non stick, heat resistant, easy to clean and reusable, by using PTFE grill sheet, your BBQ grill will be always clean. It saves effort of cleaning and grilling.

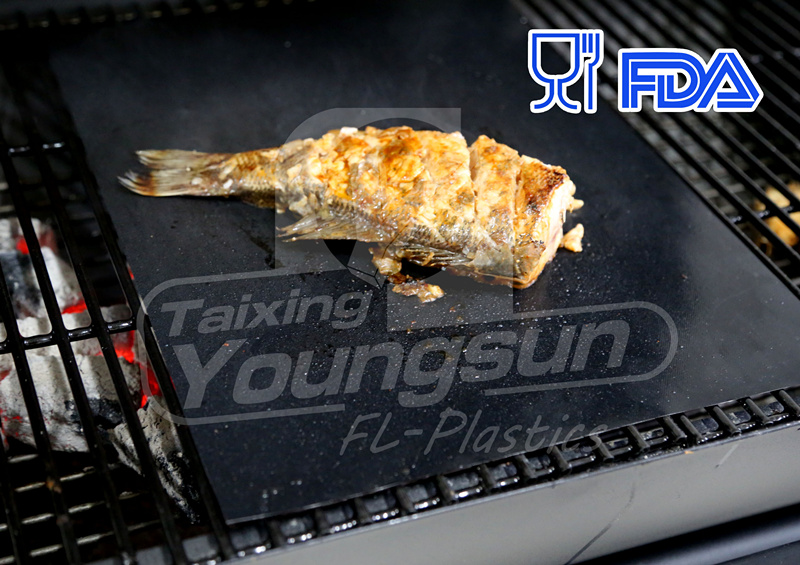

BBQ Grill Mat

BBQ Grill Mat



★   Grinding Wheel Manufacture

Teflon coating fabric YS9020A is a release sheet for grinding wheel manufacturing. Before production, YS9020A will be cut into different sizes to be same as grinding wheel.

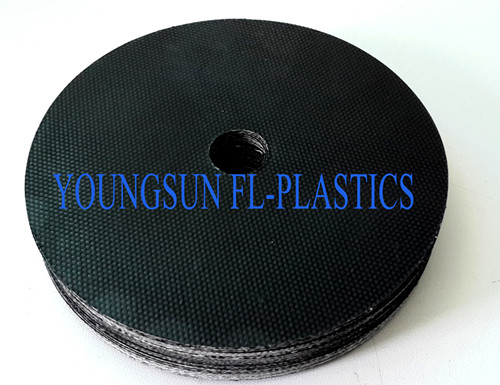

Glassfiber Reinforced Teflon Seperator

Glassfiber Reinforced Teflon Separator



And grinding wheels production begins with the formation of a mixture of abrasive grits and resin.

Each log or tube is separated with pieces of PTFE fabric separators.

After the log is cured in a high temperature oven, the individual grinding wheels can be separated from each other because of the Heat Resistant Cloth separators in between.

The clean release properties of the PTFE coating and the strength of the fibreglass substrate allow for clean, reliable separation. The diameters of the die cut separators vary depending on the size of the end product.

Porous Teflon Fabric

Porous Teflon Fabric



★   Luxury Vinyl Tile



Luxury Vinyl Tile is a fast growing market which is famous because of the durability and aesthetic appeal. It has many competitive properties than traditional flooring options such as ceramic tile and wooden flooring.

The LVT base layer is formed through a heat and high pressure lamination of PVC crumb and glass skrim. PTFE coated fiberglass fabric is a best release sheet for LVT industry, since Teflon fabric is heat and chemical resistant during PVC melting process.

PTFE fabric for luxury vinyl tile

PTFE fabric for luxury vinyl tile
