Stringer Belts

Stringer Belts, 2-layers PTFE belts for tabber stringer machine

Stringer Belts are laminated with 2 layers of PTFE coated fiberglass fabric, which is continuous running straightly, has higher dimensional stability, longer lifetime and better performance than normal PTFE belt.



This belt is designed for tabber and stringer machine, which can withstand high working temperature, has easy release surface, and the holes can be customized punched in order for a constant vacuum.

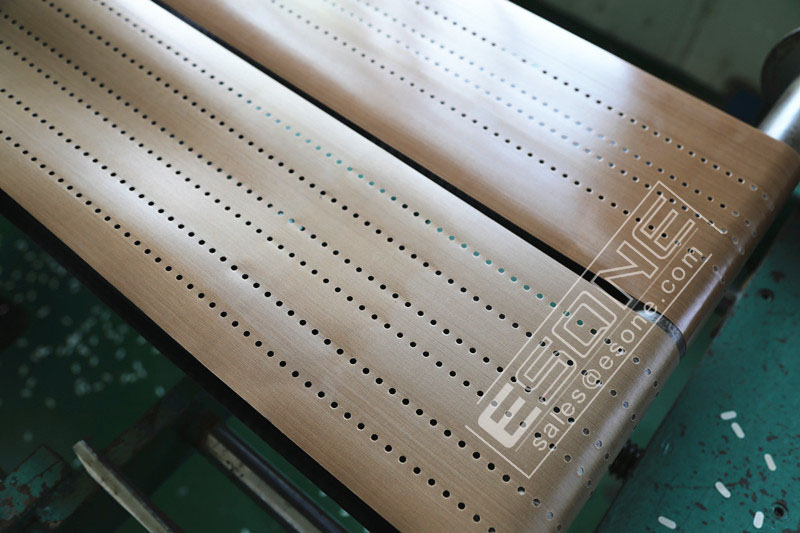

Stringer Belts

Stringer Belts



Advantages of Stringer Belts



 Dimensional stability



Stringer belt will continuous working in tabber and stringer machines 24 hours, and it is used to soldering strings by 12 ribbons on tested cells.

In this case, the dimensional stability of stringer belts will be very important, it will affect the straightness of the welding ribbon after processing.

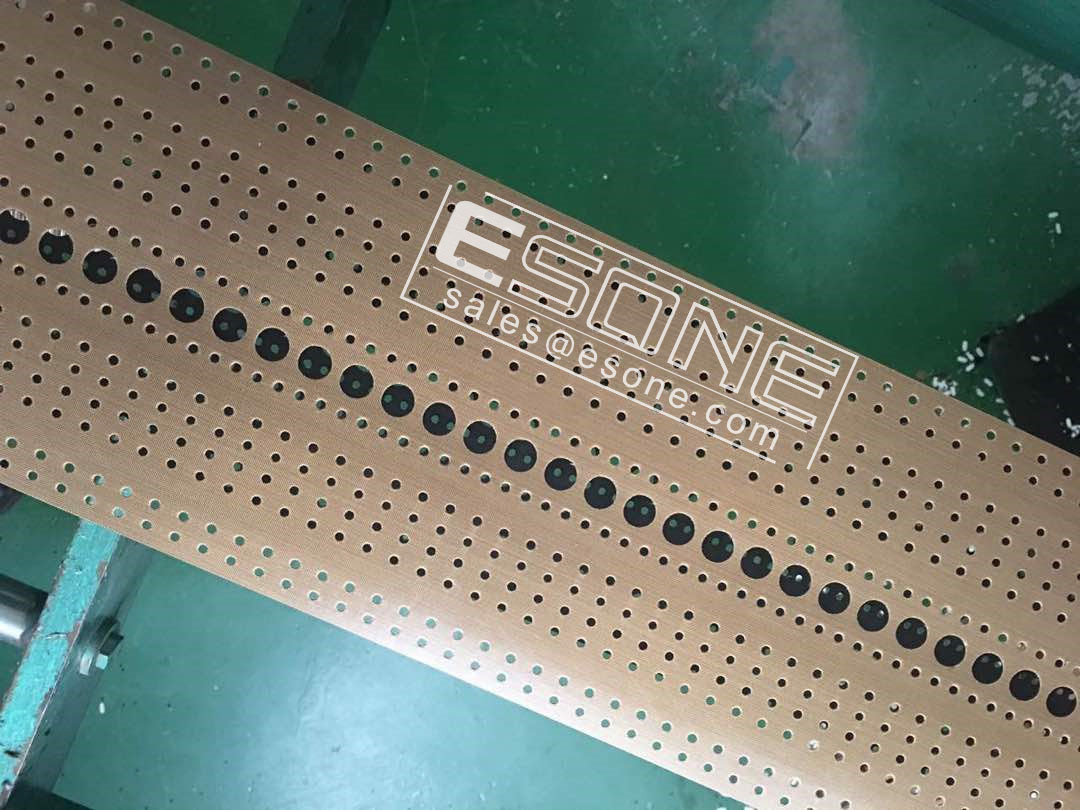

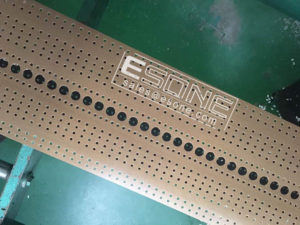

PTFE welding belt

PTFE welding belt



 Continuous running straightly



In order to enable precise overlay of main bus bar and welding ribbon, the stringer belt is requested to running straightly continuously.



 Heat resistant and non stick



PTFE coated fiberglass fabric can continuous working under 260°C (500°F).

The perfect non stick surface will make cell easily release from the belt.



 Anti-static surface



Stringer belts are laminated with one normal PTFE fabric and one black anti-static PTFE fabric, which will protect cell from static during processing.



 Customized punched holes for constant vacuum



PTFE stringer belt can be punched into 2 holes / 4 holes / 8 holes & etc per line, the hole size and position can be customized.

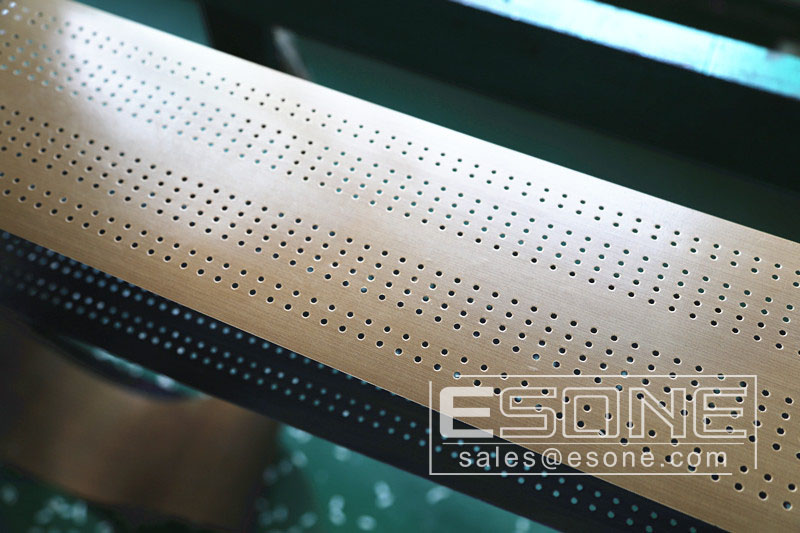

PTFE stringer belt

PTFE stringer belt

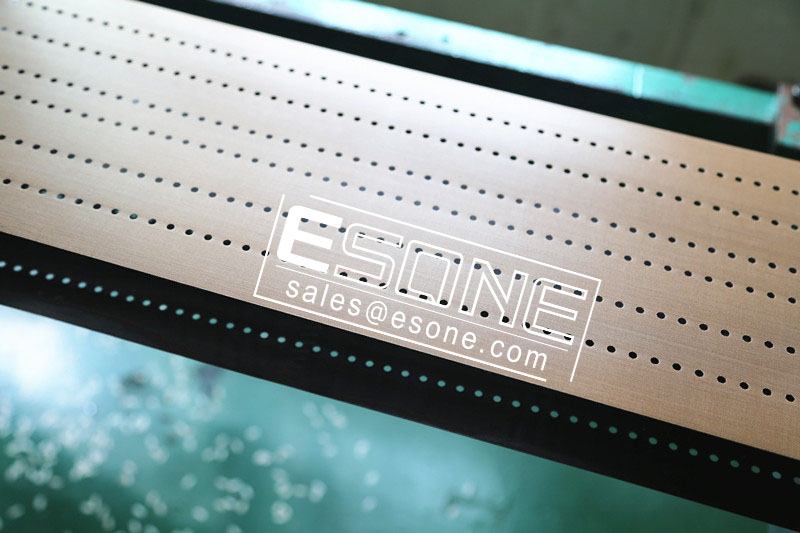

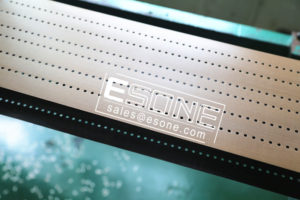

2 layer PTFE belt

2 layer PTFE belt

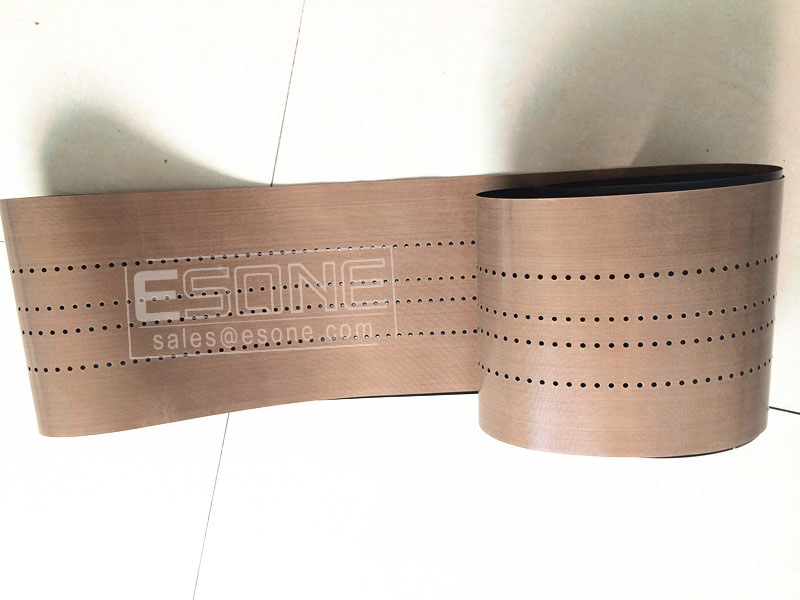

ptfe coated fiberglass belt

ptfe coated fiberglass belt

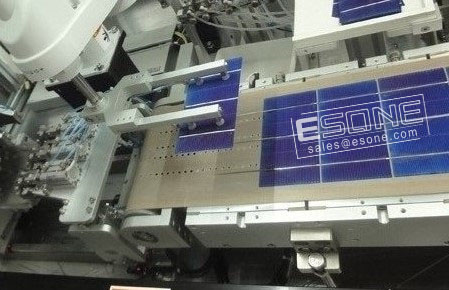

PTFE tabber and stringer belt

PTFE tabber and stringer belt



Specification of Tabber and Stringer belt



Thickness:  0.26mm, laminated with 2 layers of 0.13mm (5mil) PTFE coated fabric.



Standard size of Stringer Belts:

200mm x 3509mm

200mm x 4400mm

200mm x 6008mm



Click here to access PTFE Endless Belt for Tabber and Stringer machine
