Anti static Teflon coated fiberglass YS9008BJ

////Anti static Teflon coated fiberglass YS9008BJ

Anti static Teflon coated fiberglass YS9008BJ

Anti static Teflon coated fiberglass, eliminates static electricity during operation

Anti static Teflon coated fiberglass is specially formulated by adding carbon for conductive and Anti static property. Anti static PTFE fabric series combined with the easy release property, by coating high quality PTFE on the basic fiberglass.

The OHMS(surface resistant) per square meter of Anti static PTFE coated fabrics can be 10^7 to 10^5, which will show excellent conductive and non stick property.

YS9008BJ is 0.08mm thick, black color, standard width is 1m or 1.25m(1.5m can be offered, but price is different).

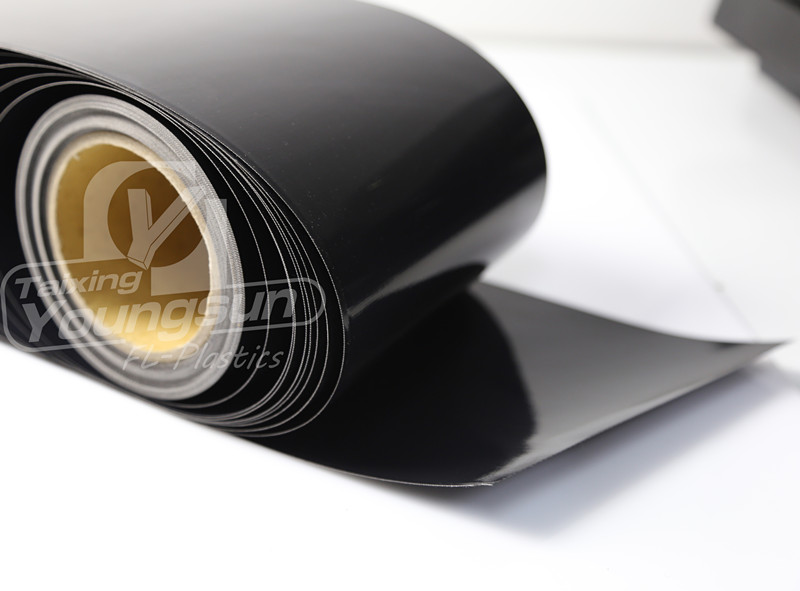

Anti static Teflon coated fiberglass (High Glossy)

Anti static Teflon coated fiberglass (High Glossy)



Property of Anti Static Teflon Coated Fiberglass



Anti static PTFE Coated Fiberglass Fabrics has an anti static (conductive) and Non stick properties.

The color of Anti static PTFE coated Glass Fabrics is black and available in all kinds of PTFE fabrics, like PTFE coated glass fabrics, Self adhesive PTFE Fabrics, PTFE open mesh fabrics.



The property of Anti static Teflon coated fiberglass fabric is almost same as PTFE coated fabric premium series.

  Non-stick surface and easy release

  Working continuous from -70°C – +260°C

  Chemical resistant and environmental resistant

  High tensile strength and dimensional stability

  Reusable and has long lifetime

★  Abrasion and UV resistant

★  Anti static (conductive)



Applications of Anti static PTFE coated glass fabrics



Anti static Teflon coated fiberglass is widely used in conveyor belts, release sheets, wire and cable production where static can be made.

Applications such as Automotive, Electronics like electrical insulation, LCD/FPC/PCB manufacturing, Energy like Solar cells panel production and module lamination, Packaging like heat sealing, release sheet for heat press machines, Textile like seamless fusing belts for fusing machine, release sheet in shoes industry, textile lamination and so on.





Conductive PTFE endless belt for fusing machine

Conductive PTFE endless belt for fusing machine

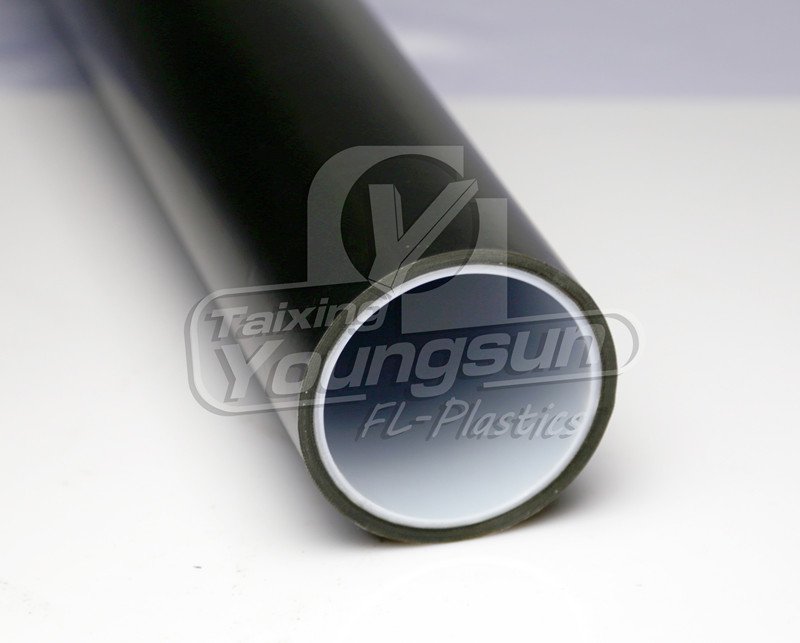

PTFE anti static adhesive tape

PTFE anti static adhesive tape



Anti static PTFE open mesh conveyor belts

Anti static PTFE open mesh conveyor belts



The Specification of Anti Static PTFE Coated Fabrics



ProductProduct CategoryCoating
PTFE GLASS FABRICANTI STATIC SERIESPTFE



PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1250 mm39.5, 49.3 inches
Thickness0.08 mm0.0031 inches
Coated weight155 g/m² 4.57 oz/yd²
PTFE content68 %68 %
Surface resistance10^7 to 10^5 OHMS/m²10^7 to 10^5 OHMS/m²
Tensile strength102 N/cm Warp58.3 lbs/inches Warp
98 N/cm Fill56 lbs/inches Fill
Temperature resistance-73 to +260 °C-100 to +500 °F



Click here to download the spec of YS9008BJ-ESONE

Click here to access Anti static Teflon Adhesive Tape



2 Comments

  1. Victoria Doncel 2018年7月19日 at am10:43 - Reply

    Please send us the full spec for anti-static PTFE fabric

    • Ms. PTFE 2018年7月19日 at am11:05 - Reply

      Hi Victoria Doncel, thanks for your comment!
      For Anti-static PTFE fabric without adhesive, we have YS9008BJ, YS9011BJ, YS9013BJ, YS9018BJ, YS9023BJ, YS9025BJ, YS9035BJ, YS9037BJ, YS9040BJ, YS9090BJ and so on.
      Our sales team will contact with you soon:)
