Porous Teflon Sheet YS9023P

/, Products/Porous Teflon Sheet YS9023P

Porous Teflon Sheet YS9023P

Porous Teflon Sheet, coating low level of PTFE

Porous Teflon Sheet balance the porosity and release property, it has a higher porosity than normal PTFE coated fabrics, and this Teflon coated fabric combines fiberglass with low content of PTFE coating.



This Porous Teflon fabric is used in applications which need airflow pass throw the fabric under pressure (air circulation for drying and curing processes), normal applications including casting sheets for uncured elastomers, vacuum bag bleeder cloth for composite molding, luxury Vinyl tile manufacturing, release sheet for grinding wheels and so on.

Unlike PTFE premium series, it is more flexible, much stronger and can be wrapped around curved shapes.



Porous Teflon Sheet



After many years development, Youngsun offering Porous series with balanced PTFE content and enough porosity.



With this high porosity surface, this Porous Teflon Sheet can allow air circulate the fabric in the production such as vacuum bag bleeder cloth, which allow products to cure and out gas through fabric.

At the same time, Teflon content will make sure the easy release surface and high tensile strength. Youngsun will balance these two properties.

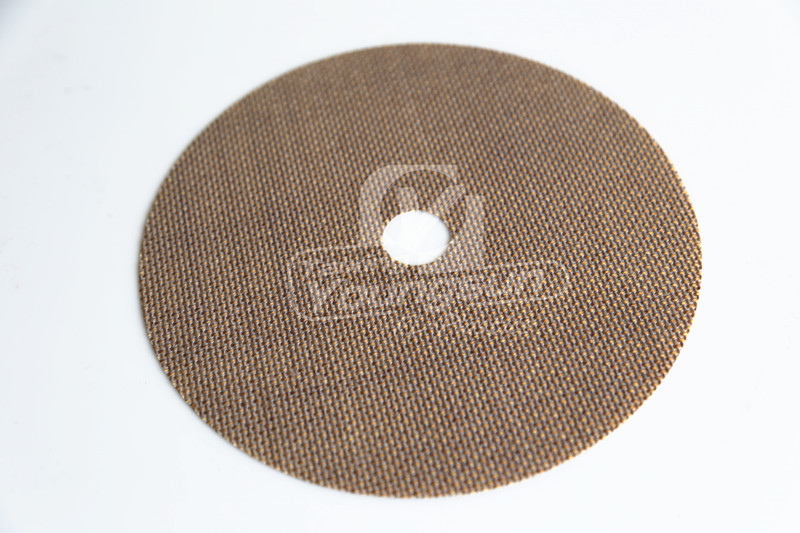

Porous Teflon Sheet

Porous Teflon Sheet



Applications of Porous PTFE coated fabrics



Because of these particular properties, this Porous PTFE fabric is excellent for using in a wide range of applications, from the manufacture of polymers to a release medium for composite molding process.



Applications of Porous Teflon Sheet:



  Aerospace, Communications & Milltary, Composite mold release in vacuum bag, or use as release sheets for fabricating glass-resin structures.

  Polymer Processing: Manufacture of silicone rubber sheets, Curing rubber and plastic foams and sponge.

  Insulation and protection.

  Release liner for grinding wheels.

  Drying painted or lacquered products.

  Release sheet for heat sealing machines

  Release sheet or belts for Luxury Vinyl tile, PVC flooring

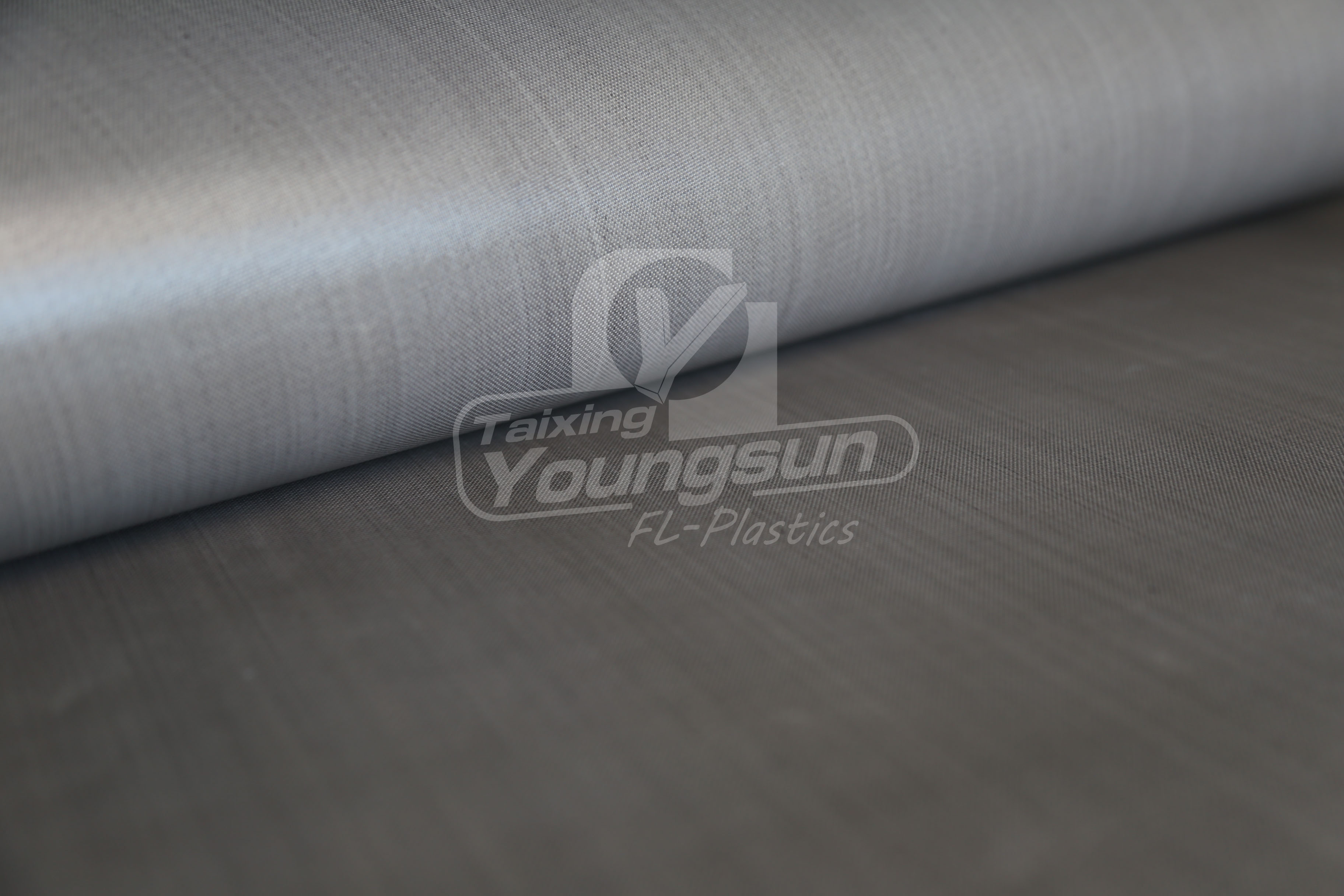

Porous Teflon Fabric

Porous Teflon Fabric



Specifications of Porosity Teflon fabric



ProductProduct CategoryCoating
PTFE GLASS FABRICPOROUS SERIESPTFE



PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 2600 mm39.5, 59.1, 102.4 inches
Thickness0.23 mm0.0091 inches
Coated weight278 g/m² 8.2 oz/yd²
PTFE content26 %26 %
Porosity30-60 cfm30-60 cfm
Tensile strength460 N/cm Warp263 lbs/inches Warp
430 N/cm Fill246 lbs/inches Fill
Temperature resistance-73 to +260 °C-100 to +500 °F

Click here to download technical data sheet of YS9023P-ESONE (Porous Teflon Sheet)
