Teflon coated Fiberglass Fabric Premium YS9020AJ

Teflon Coated Fiberglass Fabric, high performance Premium series

Teflon Coated Fiberglass Fabric using high quality and imported E-Glass fiber(alkali-free) as basic material, coated with high performance PTFE(Polytetrafluoroethylene) content to offer high glossy, extreme smooth coating.



In order to offer high performance, Premium series PTFE Fabric Premium Series , Youngsun will use special formula and add reliable material to modify PTFE property.

For example, like enhancing the PTFE coating strength, increase abrasion resistance or UV resistance, reduce the permeate property, strong the tensile strength & tear strength and so on.



YS9020AJ belongs to PTFE coated fabric Premium Series, the thickness is 0.20 mm(0.0079 inches).

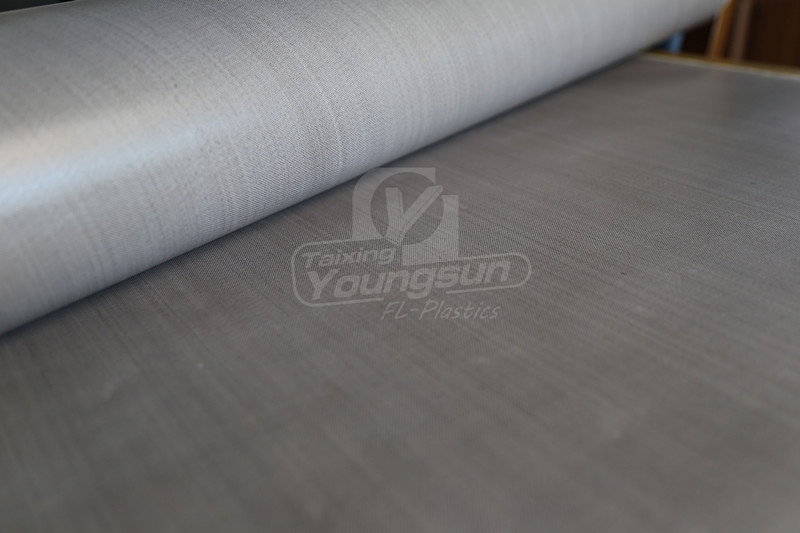

Teflon coated fiberglass fabric

Teflon coated fiberglass fabric



High quality E-Glass for Teflon coated Fiberglass fabric



  High tensile strength

Some applications have tough working environment, like high temperature,  continuous pressure and running, which need PTFE fabric or belt has long lifetime to minimize the downtime of the equipment.



 Smooth surface

The surface of the fiberglass will effect the final surface of Teflon coated Fiberglass Fabric directly, good fiberglass will result in a super smooth PTFE coated fiberglass.

More glossy, more smooth, the easy release and abrasion resistant property will be better.



High quality PTFE for PTFE Fabric



PTFE(Teflon)(Polytetrafluoroethylene) is the most important factor for the performance of PTFE coated fabric, it affect the final property directly.



  More glossy and smooth surface

It will also reduce the pin holes on the surface, make PTFE fabric easy release in the processing.



 Longer lifetime

Combine with fiberglass tightly. More abrasion resistant.



  High performance

Such as release property, UV resistant, chemical resistant



  PFOA free

Can touch food directly, making into belting for food, Non stick oven liner, baking liner or BBQ grill mat and so on.

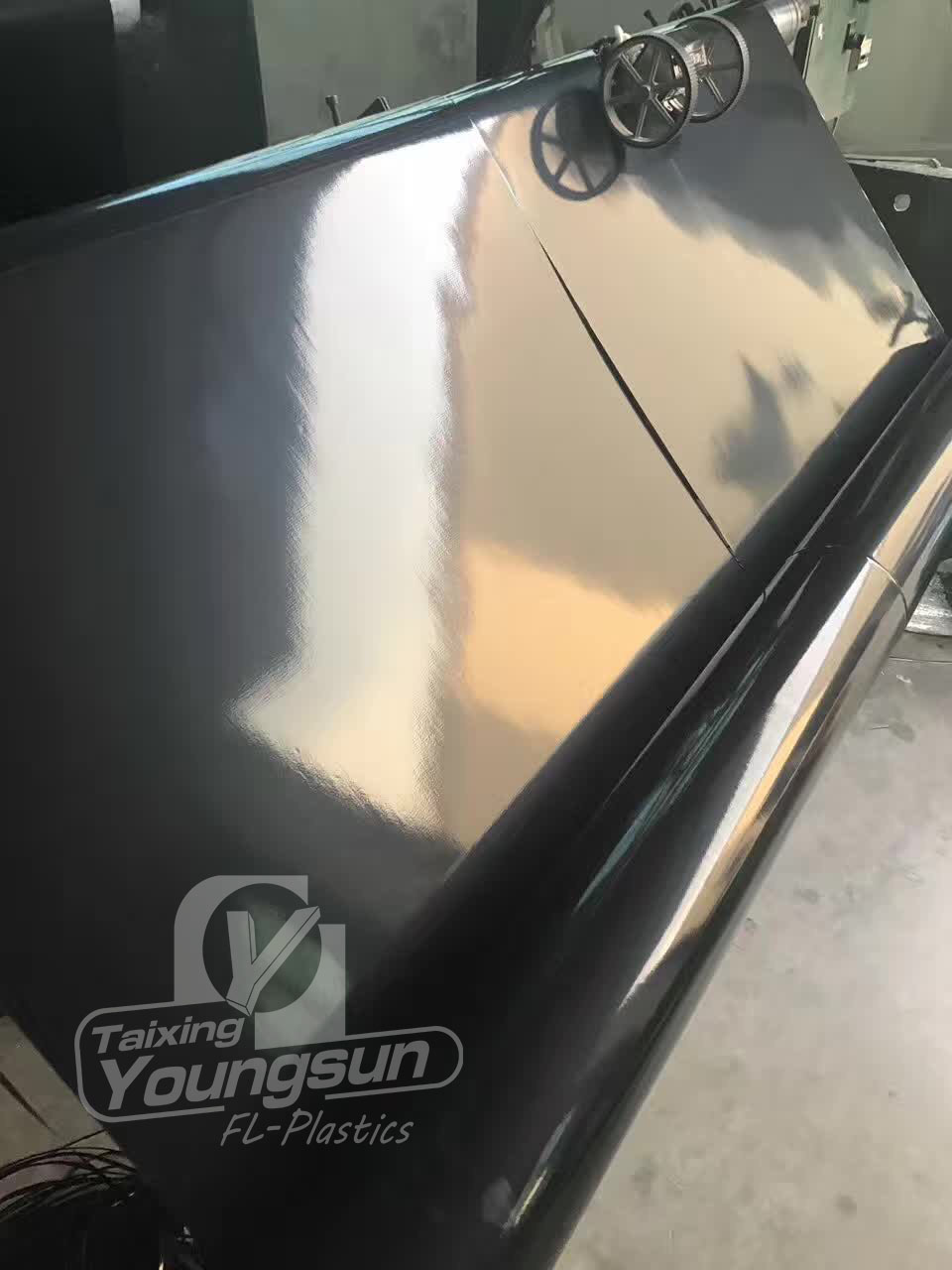

High glossy PTFE fiberglass fabric

High glossy PTFE fiberglass fabric



Properties of PTFE Fiberglass Fabric



  Non-stick surface, easy release, low friction

  Working continuous from -73°C – +260°C

  Chemical resistant and environmental resistant

  High tensile strength and dimensional stability

  Reusable and has long lifetime

★  Abrasion and UV resistant



Technical Data of Teflon coated Fiberglass Fabric

ProductProduct CategoryCoating
PTFE GLASS FABRICPREMIUM SERIESPTFE



PropertiesMetricImperial
Standard width
Please ask for other widths
1000 mm39.5 inches
Thickness0.20 mm0.0079 inches
Coated weight410 g/m² 12.1 oz/yd²
PTFE content60 %60 %
Tensile strength280 N/cm Warp160 lbs/inches Warp
256 N/cm Fill146 lbs/inches Fill
Temperature resistance-73 to +260 °C-100 to +500 °F


Click here to download Spec of  YS9020AJ-ESONE



For samples of Teflon Coated Fiberglass Fabric,  please feel free to contact us.

Note:
Weight Tolerance g/m² = ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constructed in any manner as warranties expressed.



Application of 0.20mm PTFE coated fabric



0.20mm Teflon Coated Fiberglass Fabric is using same basic material as YS9018AJ Premium series, by more PTFE content, YS9020AJ is suitable for applications in tough working environments.

And 0.20mm PTFE coated fiberglass Cloth can be made into Porous to meet the application’s request.



Now YS9020AJ is used in textile lamination both woven and non woven fabrics, garment fusing conveyor belts, curing and casting applications and so on.

The porous 0.20mm YS9020P is used as the release sheet for grinding wheel, peel ply in the composite molding industry and so on.



0.20mm Porous PTFE Fabric

0.20mm Porous PTFE Fabric



The selection of Teflon coated Fiberglass Fabric is because of the requirements of the user’s equipment and productivity. Esone® PTFE & Silicone coated fabrics and belts offer reliable, long-lasting and high performance and maximize equipment up time, increase the production capacity and product’s quality.
