PTFE Fabric Premium Series

/, PTFE Fabric Premium/PTFE Fabric Premium Series

PTFE Fabric Premium Series

PTFE Fabric Premium Series, high quality, easy release, super smooth surface

PTFE Fabric(release sheet) is also named as PTFE coated fiberglass fabric, the basic fabric is high quality E-Glass fiber, and coated with high quality PTFE content, result in a better smooth, easy release and Non stick surface.



PTFE coated Fabric Premium Series



High quality PTFE coating ensures PTFE Fabric has non stick (easy release) surface to almost all the chemicals, and heat resistant (continuous working under 260 degrees, maximum 327 degrees), high tensile strength as PTFE combined with fiberglass tightly, and E-glass has mechanical property, so Teflon fabric is widely used in many different application which need high performance PTFE Fabric.



Taixing Youngsun’s premium series PTFE coated Fabric, is unlike normal PTFE Coated Glass Fabrics.

Premium series PTFE glass fabric has smooth, high-gloss surface coating, which has great release, higher dielectric strength, and chemical-resistant characteristics.

This premium series are specially designed to meet most demanding applications such as laminate-release sheets, food conveyor belts, electrical insulation and industrial processing.

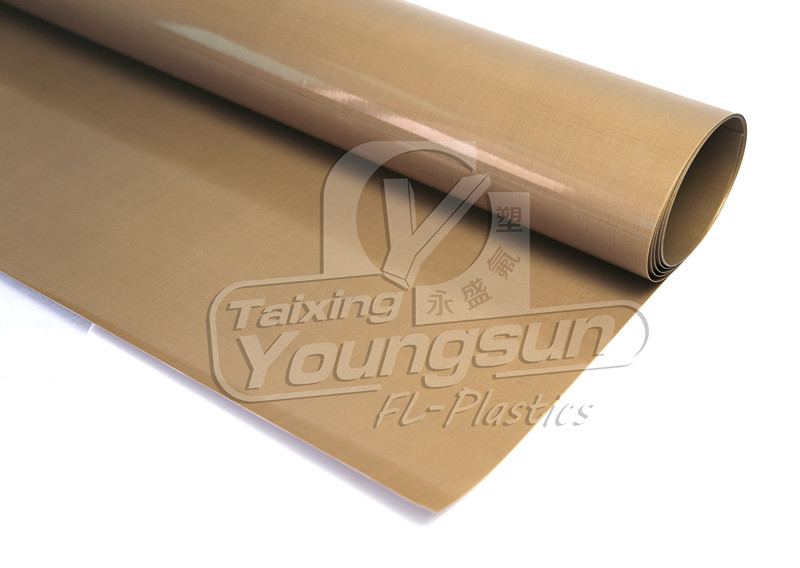

ptfe fabric

PTFE fabric



Properties of PTFE Fabric



  Non-stick surface, easy to release and clean
  Low coefficient of friction
  Outstanding temperature resistance (continuous working from -170°C to +260°C)
  Non-toxic and compliant for food applications, FDA & LFGB certificated
  Strong resistance to almost all chemicals
  Better dimensional stability and strong tensile strength
  Flexibility
  High electrical insulating power, strong resistance to electric arc
  Resistance to microwaves, UVs and IRs and HF.

Technical Data of Release Sheet




ProductProduct CategoryCoating
PTFE GLASS FABRICPREMIUM SERIESPTFE
PTFE Fabric Premium Series
StyleStandard Width(mm)
Please ask for other widths
Normal Thickness
(mm)
Weight
(g/m2)
PTFE Content(%)Tensile Strength Warp/Fill
(N/cm)
YS9004AJ-ESONE1000/12500.04mm806960/52
YS9005AJ-ESONE1000/12500.05mm836660/52
YS9008AJ-ESONE1000/12500.08mm15568104/98
YS9013AJ-ESONE1000/1250/15000.13mm27060240/200
YS9015AJ-ESONE10000.15mm31665250/210
YS9018AJ-ESONE1000/12500.18mm37055320/305
YS9020AJ-ESONE1000/1250/15000.20mm41060280/256
YS9025AJ-ESONE1000/1250/1500
/2000/2600
0.25mm53062460/400
YS9030AJ-ESONE1000/1500/2000/26000.30mm62553680/640
YS9035AJ-ESONE1000/1500/2000/26000.35mm68062540/508

Application of PTFE Fabric Premium Series



Applications of Teflon coated fiberglass fabric includes release sheet for heat press machine, solar cell laminating, belting for food or paper industry, Non stick baking liner or oven liner, electrical insulation and industrial processing.

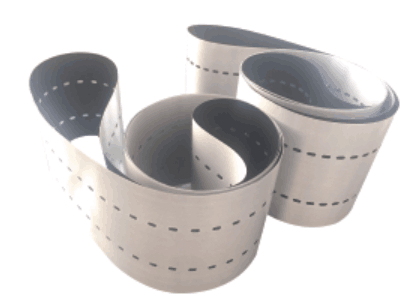

PTFE Premium fabric used for making belt with several layers

PTFE Premium fabric used for making belt with several layers

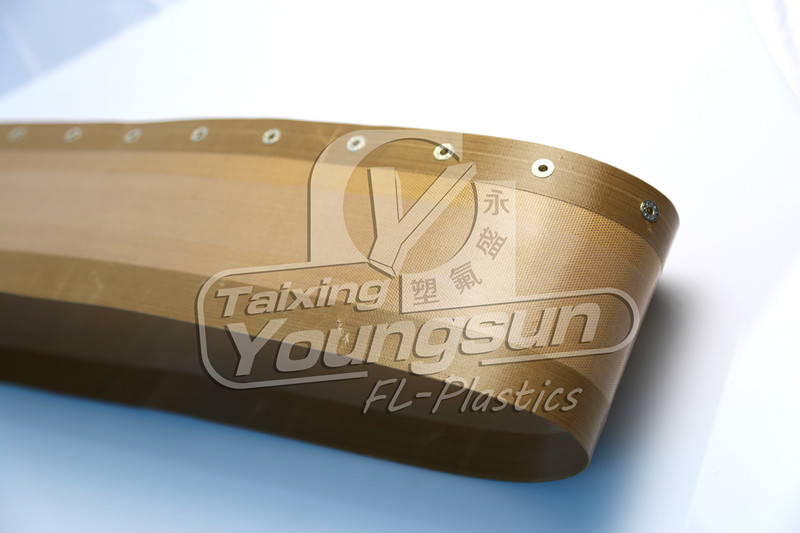

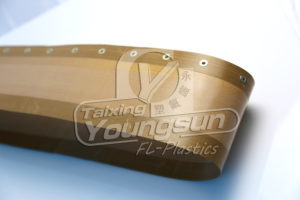

PTFE coated fabric Premier series for belting

PTFE coated fabric Premier series for belting



PTFE fabric Premier series is PFOA free, can touch food directly, is FDA & LFGB certificated.

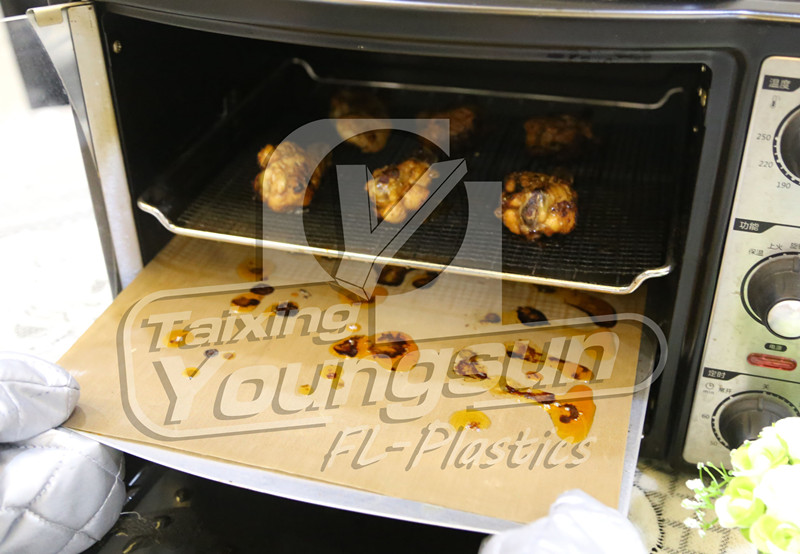

Nonstick Oven Liner

Teflon fabric making Nonstick Oven Liner



High quality PTFE fabric can also be coated with Silicone pressure adhesive or Acrylic adhesive, making into heat resistant PTFE adhesive tape.

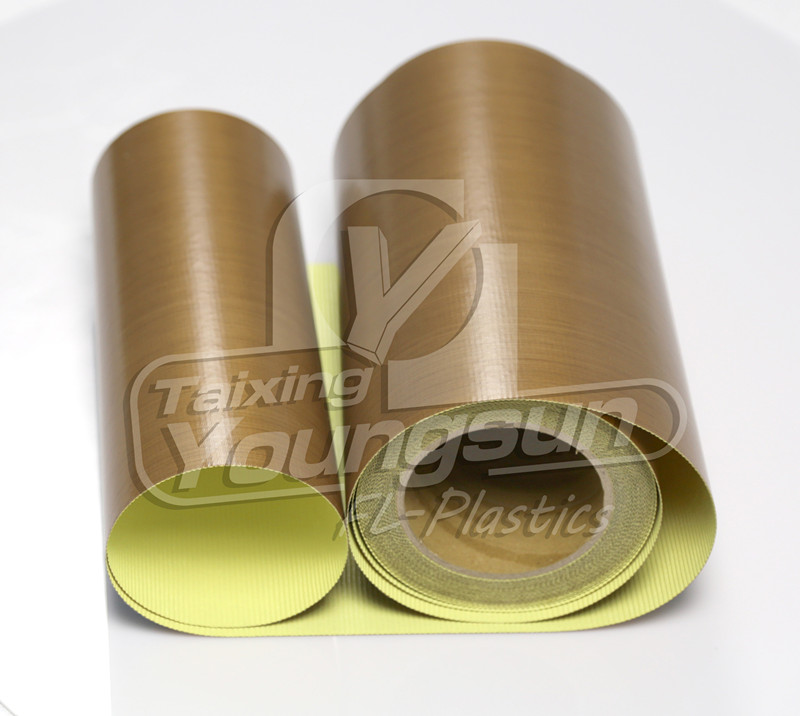

Self adhesive ptfe tape

Release sheet is made of PTFE coated fiberglass fabric with pressure sensitive silicone adhesive. This tape is used a lot in packing( heat sealing, shrink wrapping) as a heat resistant release surface.
