PTFE Mesh Conveyor Belt, long lasting screen printing belt

PTFE Mesh Conveyor Belt is widely used in applications of high heat, from screen print dryers used in textile industry to extruded rubber products used in the automobile industry. Belts are designed for top performance and durability in high-heat environments.

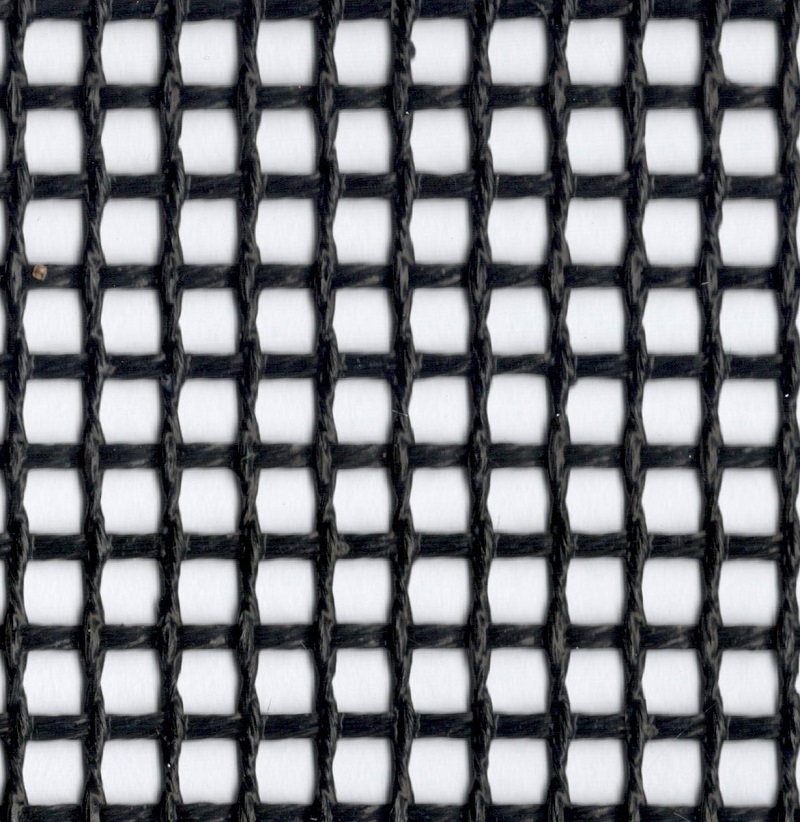

Teflon Belt YS6012 is 4×4 mm double weft mesh fabric, this mesh belt can be anti-static by adding special formula. And due to the construction, this belt has good mechanical strength and is widely used in the market.



ptfe mesh conveyor belt YS6012

ptfe mesh conveyor belt YS6012



Properties of PTFE mesh conveyor belt



  Controlled porosity, different mesh size from 1mm to 10mm could be made

  Resist almost all chemical, such as corrective agent and others

  Operating temperature range from -70 to 260 degrees

  Superior non-stick surface, easy to clean and release

  Any sizes could be made, the maximum width is 4m

  Exceptional strength and dimensional stability.

  Food grade, can touch food directly

  Light weight, easy to install

  Resist to UV, IR and HF

  High dielectric strength

  Could be Anti-static



Technical Data Sheet of Teflon mesh belt YS6012



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIEPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 1700, 2050,2500, 2700, 3200, 3400,3600, 3800, 4000 mm39.5, 59, 67, 81,98.4, 106, 126, 134,142, 150, 158 inches
Mesh Size4 x 4 mm0.1574 x 0.1574 inches
Weight580 g/m²17.1 oz/yd²
WeftDouble weftDouble weft
Tensile Strength360 N/cm Warp206 lbs/inches Warp
500 N/cm Fill286 lbs/inches Fill
ColorBlackBlack
Temperature Resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS6012-ESONE

For samples of PTFE Mesh Conveyor Belt, please feel free to contact us.

Other specification is also available, you can contact us for more information.

ptfe mesh conveyor belt

PTFE Mesh Conveyor Belt is widely used in applications of high heat, from screen print dryers used in textile industry to extruded rubber products used in the automobile industry. Belts are designed for top performance and durability in high-heat environments.

Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.



Different splices & joint & edge reinforcement



ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.

Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!



PTFE Mesh Belt
Belt MaterialPTFE glass fabricPTFE Kevlar fabric
Belt JointBullnoseAlligatorPlastic
Belt EdgePTFE glass edgePTFE film edgePTFE Kevlar edge
Belt GuidePTFE guideKevlar guideSilicone guide
Belt PinStainless Steel PinPTFE PinAlligator Pin
