Teflon mesh conveyor belt YS6011

Teflon mesh conveyor belt YS6011

Teflon mesh conveyor belt from ESONE, excellent conveyor belt for non woven manufacturing.

Teflon mesh conveyor belt YS6011 is coated with high quality PTFE resin, the basic material is woven fiberglass or aramid fabric (like Kevlar) or Nomax. Since Teflon conveyor belt is non stick & heat resistant, the main applications are screen printing, drying industry,packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.

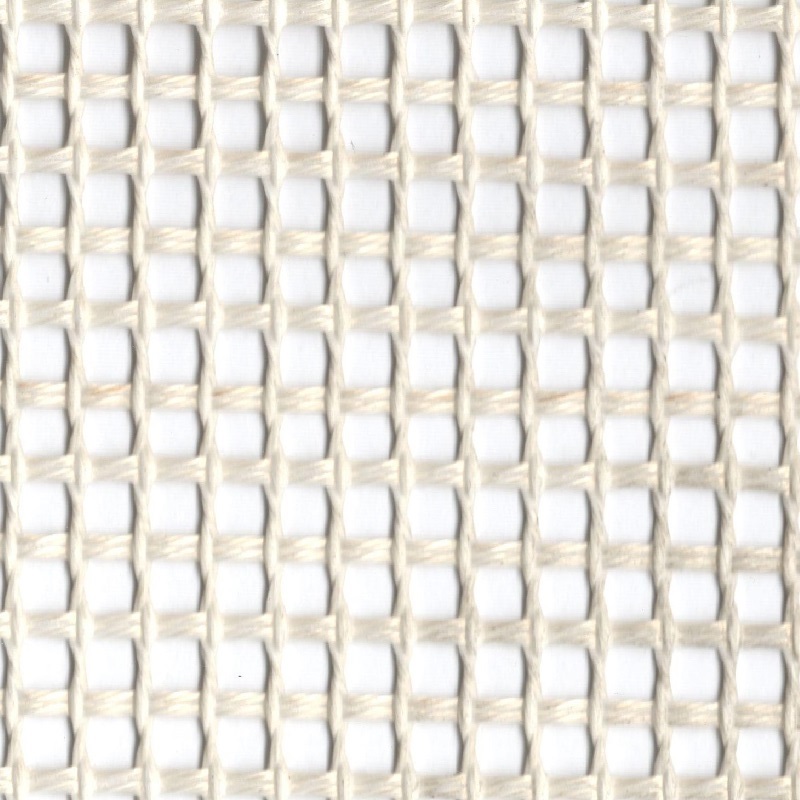

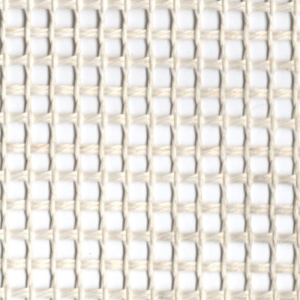

YS6011 is 4x4mm double weft, white color.

Teflon mesh conveyor belt YS6011

Teflon mesh conveyor belt YS6011



Property of Teflon mesh conveyor belt



1) The maximum width is 4000mm wide.

2) Teflon mesh conveyor belt is non stick and is easy to release & clean

3) Heat resistant PTFE conveyor belt can continuous working from -73°C to 260°C

4) Non stick Teflon open mesh belt is chemical resistant

5) Teflon conveyor belt has high dimensional stability.



Features of PTFE Belts



   PTFE open mesh conveyor belt is light weight and cost effective, which is much better than metal conveyor belt, as Teflon mesh conveyor belt is easy to replace and less expensive.

   Different mesh size is available according to the application request, from 1mm x 1mm, 2mm x 2.5mm, 2mm x 4mm, to 4mm x 4mm, 5mm x 5mm, 8mm x 8mm, 10mm x 10mm.

   ESONE can enhance the tensile strength for machines, which has small roller or has high speed or need high mechanical strength belt or transporting heavy items.

And the basic material can be fiberglass, Kevlar or Nomax.

   Teflon conveyor belt Workable for all heating systems, like electrical, RF or UV heating.



PTFE mesh belts

PTFE mesh belts



Applications of PTFE mesh belt



—Screen printing

Teflon belt is used to transport imprinted material though drying ovens and cooling oven, due to the non stick and heat resistant property.



—Packaging industry

Such as heat resistant conveyor belt for heat shrink packing, plastic bag sealing.

PTFE belt for Heat Shrink Packaging

PTFE belt for Heat Shrink Packaging



—Textile industry

Teflon conveyor belt is used for drying of polyester wadding and Without glue cotton, and textile lamination machines, non woven fabric manufacturing, textile printing industry etc.

Non woven fabric drying belt

Non woven fabric drying belt



—Wood processing industry

Drying the painting for the wood, or curing of plywood and so on will use Teflon conveyor belt.



—Drying industry

Teflon mesh conveyor belt is used for food processing, such as granola, flour, seafood and so on.

PTFE Conveyor belt for drying

PTFE Conveyor belt for drying



Technical Data Sheet of Teflon coated conveyor belt



Esone Teflon open mesh conveyor belt has a good performance during operation due to the good quality. We have a widely range of sizes for customers choosing. Special requirement for edge reinforcement and belt joint can be made according to request.



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIESPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 2500, 2700,3200, 3800, 4000 mm39.5, 59, 98.4, 106,126, 150, 158 inches
Mesh Size4 x 4 mm0.1574 x 0.1574 inches
Weight580 g/m²17.1 oz/yd²
WeftDouble weftDouble weft
Tensile Strength330 N/cm Warp189 lbs/inches Warp
470 N/cm Fill269 lbs/inches Fill
ColorWhiteWhite
Temperature Resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS6011-ESONE

Click here to access 4mm x4mm double weft brown PTFE mesh fabric YS6008



For samples of PTFE Belt, please feel free to contact us.

Other technical data sheet is also available, please contact us for more information.



Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. Though these values are based on test results we believes to be reliable, but they are not to be constructed in any manner as warranties expressed.
