PTFE Belts YS6008

ESONE PTFE Belts, your long lasting and high performance partner!

PTFE Belts are made of PTFE coated fiberglass that offer super release properties, outstanding temperature resistance and exceptional flexibility. We design the best belts possible, our customers can achieve both maximum value and high performance.

Teflon Belt YS6008 is the most common belting material for Textile manufacturing, Screen Printing, Food, Packaging, Electronic and other industries. The weft construction of YS6008 is double weft.

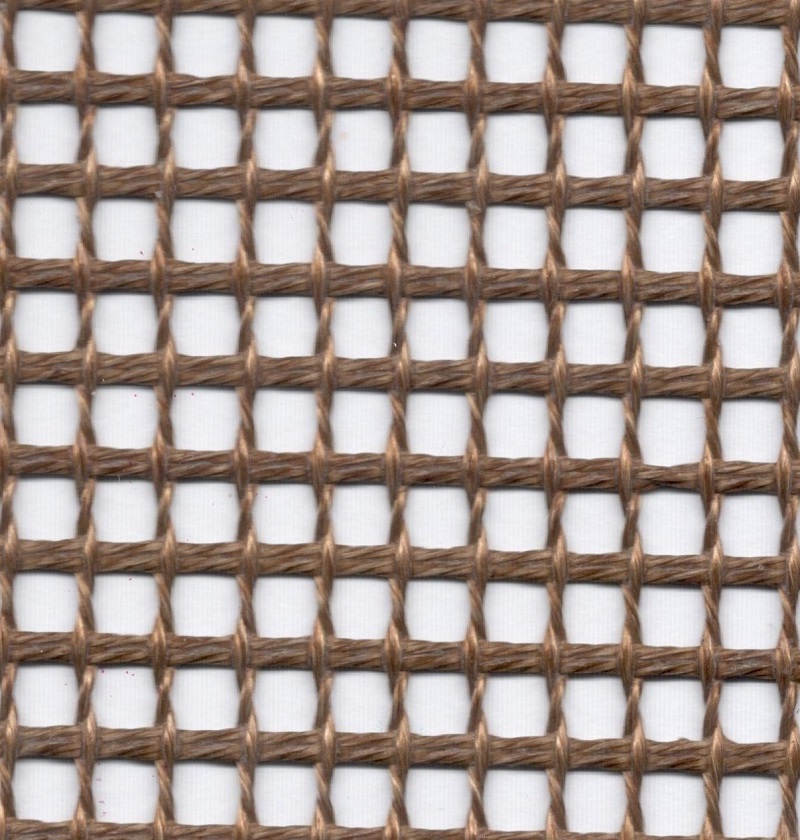

PTFE Belts YS6008

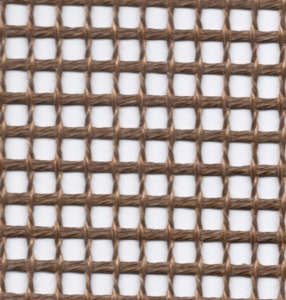

PTFE Belts YS6008



Properties of PTFE Belts



  Controlled porosity, different mesh size from 1mm to 10mm could be made

  Resist almost all chemical, such as corrective agent and others

  Operating temperature range from -70 to 260 degrees

  Superior non-stick surface, easy to clean and release

  Any sizes could be made, the maximum width is 4m

  Exceptional strength and dimensional stability.

  Food grade, can touch food directly

  Light weight, easy to install

  Resist to UV, IR and HF

  High dielectric strength

  Could be Anti-static

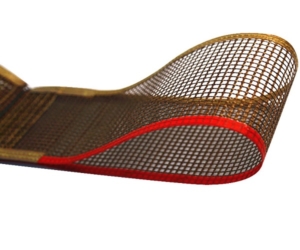

PTFE mesh belts

PTFE mesh belts



Technical Data Sheet of PTFE coated belt YS6008



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIEPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 1700, 2050,2500, 2700, 3200, 3400,3600, 3800, 4000 mm39.5, 59, 67, 81,98.4, 106, 126, 134,142, 150, 158 inches
Mesh Size4 x 4 mm0.1574 x 0.1574 inches
Weight580 g/m²17.1 oz/yd²
WeftDouble weftDouble weft
Tensile Strength360 N/cm Warp206 lbs/inches Warp
500 N/cm Fill286 lbs/inches Fill
ColorBrownBrown
Temperature Resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS6008-ESONE

Click here to find more spec of PTFE mesh belts.



For samples of PTFE Belts, please feel free to contact us.

Other specification is also available, you can contact us for more information.



PTFE Belts


PTFE Belts is made of PTFE coated fiberglass that offer super release properties, outstanding temperature resistance and exceptional flexibility. We design the best belts possible, our customers can achieve both maximum value and high performance.

Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.



Different splices & joint & edge reinforcement



ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.

Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!



  PTFE Mesh Belt
Belt MaterialPTFE glass fabricPTFE Kevlar fabric
Belt JointBullnoseAlligatorPlastic
Belt EdgePTFE glass edgePTFE film edgePTFE Kevlar edge
Belt GuidePTFE guideKevlar guideSilicone guide
Belt PinStainless Steel PinPTFE PinAlligator Pin

2 Comments

  1. Jatin 2018年7月19日 at pm12:16 - Reply

    Do you have any stronger type than YS6008?

    • Ms. PTFE 2018年7月19日 at pm1:34 - Reply

      Hi Jatin, thanks for your comment!
      We are offering PTFE mesh belt stronger type YS6008S and YS6008SS for high requirement industry.
      Our sales team will contact with you soon:)
