PTFE open mesh belt YS6018

PTFE open mesh belt YS6018

PTFE open mesh belt, excellent heat resistant belt for dyeing industry

PTFE open mesh belt YS6018 is made of PTFE coated fiberglass that offer super release properties, outstanding temperature resistance and exceptional flexibility. We design the best belts possible, our customers can achieve both maximum value and high performance.

Teflon Belt YS6018 is a 8x8mm belting material for Textile manufacturing, Screen Printing, Food, Packaging, Electronic and other industries.

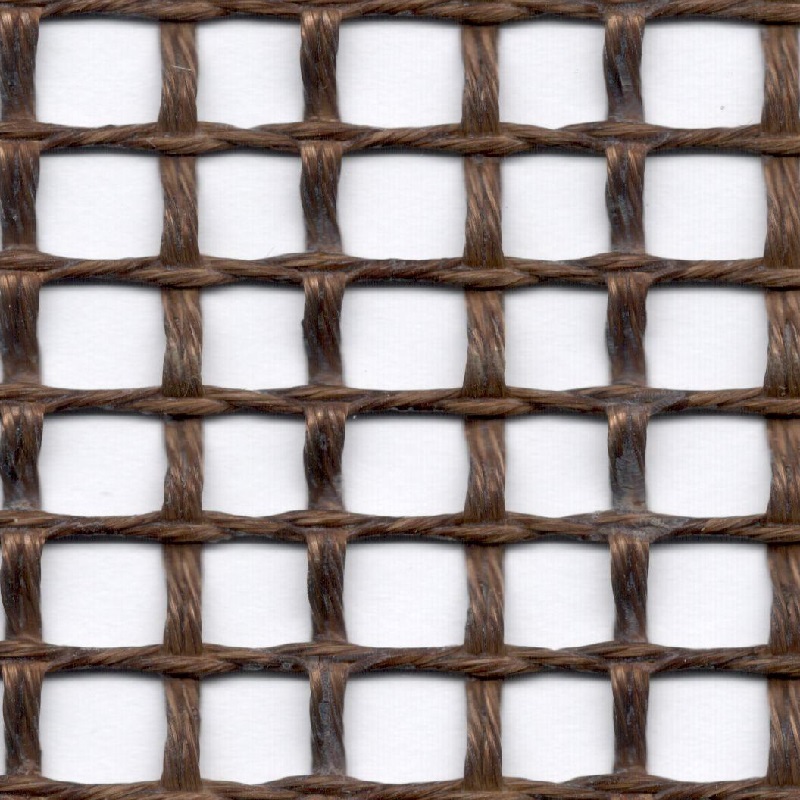

PTFE open mesh belt YS6018 8x8

PTFE open mesh belt YS6018 8×8



Properties of PTFE mesh Belts



  Controlled porosity, different mesh size from 1mm to 10mm could be made

  Resist almost all chemical, such as corrective agent and others

  Operating temperature range from -70 to 260 degrees

  Superior non-stick surface, easy to clean and release

  Any sizes could be made, the maximum width is 4m

  Exceptional strength and dimensional stability.

  Food grade, can touch food directly

  Light weight, easy to install

  Resist to UV, IR and HF

  High dielectric strength

  Could be Anti-static



ptfe(Teflon) coated open mesh conveyor belt

ptfe(Teflon) coated open mesh conveyor belt



Technical Data Sheet of PTFE open mesh belt YS6008



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIEPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1400, 2000, 2800 mm39.5, 55, 78.7, 110 inches
Mesh Size8 x 8 mm0.3150 x 0.3150 inches
Tensile Strength350 N/cm Warp200 lbs/inches Warp
480 N/cm Fill274 lbs/inches Fill
ColorBrownBrown
Temperature Resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS6018-ESONE

Click here to find more spec of PTFE mesh belts.



For samples of PTFE Belts, please feel free to contact us.

Other specification is also available, you can contact us for more information.

Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.



Different splices & joint & edge reinforcement



ESONE is not only offering the full range of PTFE open mesh belt, but also providing any kinds of splices & joints & edge reinforcement.

Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!



  PTFE Mesh Belt
Belt MaterialPTFE glass fabricPTFE Kevlar fabric
Belt JointBullnoseAlligatorPlastic
Belt EdgePTFE glass edgePTFE film edgePTFE Kevlar edge
Belt GuidePTFE guideKevlar guideSilicone guide
Belt PinStainless Steel PinPTFE PinAlligator Pin
