PTFE coated mesh belts YS6017

PTFE coated mesh belts YS6017

PTFE coated mesh belts, release sheet for laminated glass manufacturing

PTFE coated mesh belts YS6017 is using even weaved mesh fiberglass as basic material, and coated with Fluorocarbon(PTFE)(Teflon) resins used in the curing and chemically inert industry. It has exceptional strength and dimensional stability.

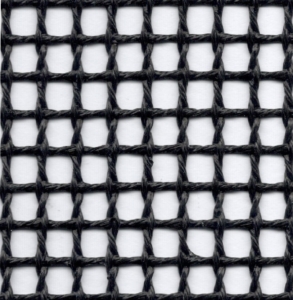

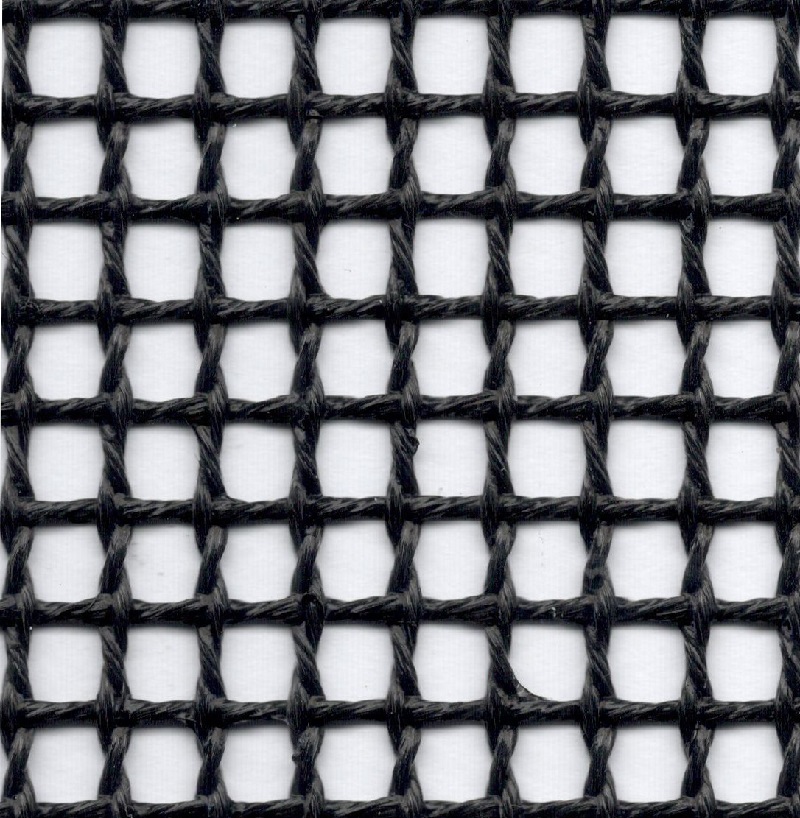

YS6017 is 5×5 mm mesh size and black color.

PTFE coated mesh belts YS6017

PTFE coated mesh belts YS6017



Properties of PTFE coated mesh belts

–  Exceptional strength and dimensional stability.

–  Operating temperature range from -70 to 260 degrees.

–  Superior non-stick surface.

– Cost effective

– Easy to install and repair

– Food grade, can touch food directly



ptfe(Teflon) coated open mesh conveyor belt

ptfe(Teflon) coated open mesh conveyor belt



Technical Data of PTFE mesh fabric YS6017



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIEPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 2000, 3600, 4000 mm39.5, 59, 78.7, 142, 158 inches
Mesh Size5 x 5 mm0.1969 x 0.1969 inches
Tensile Strength320 N/cm Warp183 lbs/inches Warp
434 N/cm Fill248 lbs/inches Fill
ColorBlackBlack
Temperature Resistance-73 to +260 °C-100 to +500 °F



Click here to download the data sheet of YS6017-ESONE

Click here to access PTFE mesh fabric full series



For samples of PTFE Mesh, please feel free to contact us.

Other specification is also available, you can contact us for more information.



ptfe mesh conveyor belt

PTFE Mesh Conveyor Belt is widely used in applications of high heat, from screen print dryers used in textile industry to extruded rubber products used in the automobile industry. Belts are designed for top performance and durability in high-heat environments.



Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.



Applications of PTFE coated mesh YS6017



  PTFE Grill Mesh

Due to the non stick property of PTFE coated mesh, YS6003 is widely used as grill mesh for home use or commercial use. By using ESONE YS6003, food will be crispy as heat air can pass through Teflon mesh.

And thanks to the non stick surface of Teflon net, this grill mesh is very easy to clean and dishwasher safe.

BBQ Grill Mesh

BBQ Grill Mesh



  Laminated glass manufacturing

ESONE high quality PTFE open mesh fabric is used as the release liner for laminated glass manufacturing.

The reason why use Teflon mesh is as follows.

1)  PTFE open mesh fabric is non stick

2)  Teflon net is porosity, the production can be vacuumized easily.

3)  Mesh PTFE fabric has high mechanical strength, has long lifetime.

Laminated glass vacuum bag



  Drying belt

Drying belt is the most common applications for PTFE mesh fabric, Teflon belt can be easily found in food packaging, seafood processing, screen printing, non woven manufacturing and many other applications.

ESONE Teflon mesh belt for drying

ESONE Teflon mesh belt for drying
