Teflon mesh sheet, outstanding drying belt for jerky pets food!

Teflon mesh sheet is made of PTFE coated fiberglass that offer super release properties, outstanding temperature resistance and exceptional flexibility. We design the best belts possible, our customers can achieve both maximum value and high performance.

Teflon Belts YS6016 is 2x4mm mesh size and brown color. It is widely used for Textile manufacturing, Screen Printing, Food, Packaging, Electronic, jerky pets food and other industries.

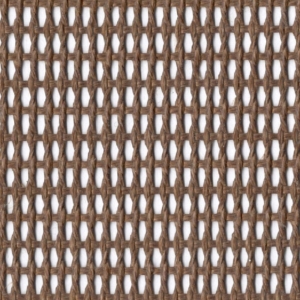

Teflon mesh sheet YS6016

Teflon mesh sheet YS6016



Properties of Teflon mesh sheet



  Controlled porosity, different mesh size from 1mm to 10mm could be made

  Resist almost all chemical, such as corrective agent and others

  Operating temperature range from -70 to 260 degrees

  Superior non-stick surface, easy to clean and release

  Any sizes could be made, the maximum width is 4m

  Exceptional strength and dimensional stability.

  Food grade, can touch food directly

  Light weight, easy to install

  Resist to UV, IR and HF

  High dielectric strength

  Could be Anti-static



Teflon conveyor belt

Teflon conveyor belt



Technical Data Sheet of PTFE coated belts YS6016



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIEPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1400, 2000, 2800 mm39.5, 55, 78.7, 110 inches

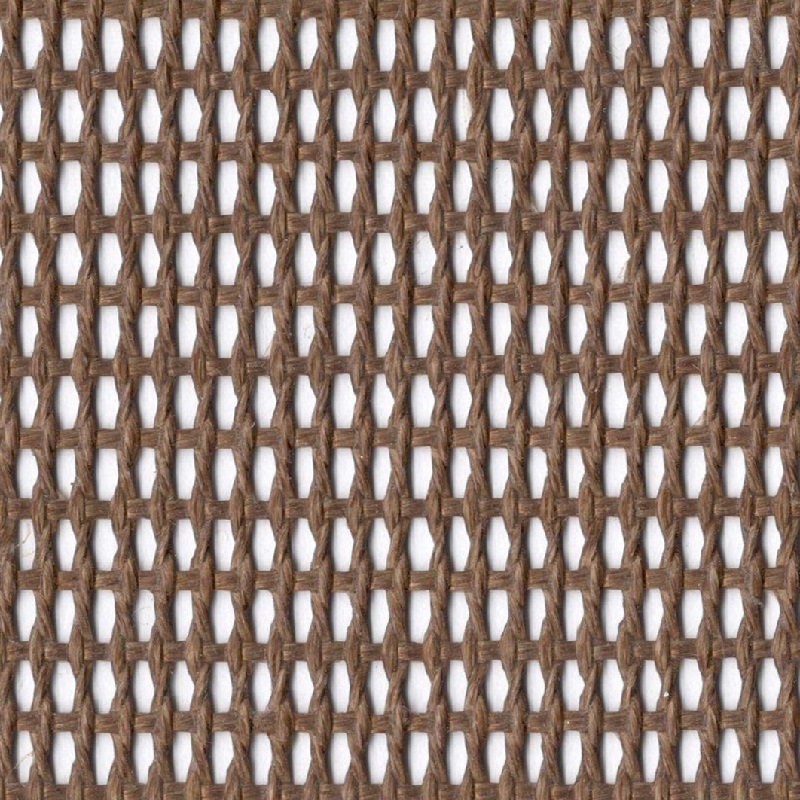

Mesh Size2 x 4 mm0.0787 x 0.1575 inches
Tensile Strength330 N/cm Warp189 lbs/inches Warp
470 N/cm Fill269 lbs/inches Fill
ColorBrownBrown
Temperature Resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS6016-ESONE

Click here to find more spec of PTFE mesh belts.



For samples of PTFE Belts, please feel free to contact us.

Other specification is also available, you can contact us for more information.

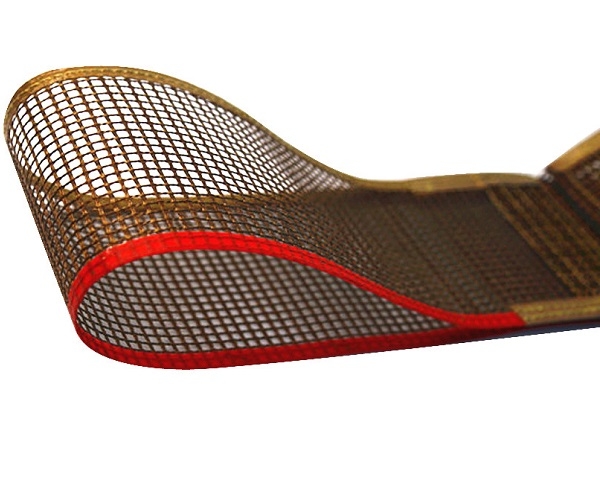

PTFE mesh belts

PTFE mesh belts

Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.



Different splices & joint & edge reinforcement



ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.

Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!



  PTFE Mesh Belt
Belt MaterialPTFE glass fabricPTFE Kevlar fabric
Belt JointBullnoseAlligatorPlastic
Belt EdgePTFE glass edgePTFE film edgePTFE Kevlar edge
Belt GuidePTFE guideKevlar guideSilicone guide
Belt PinStainless Steel PinPTFE PinAlligator Pin
