Self Adhesive Teflon Tape, Easy Release surface and Heat resistant adhesive.
Self Adhesive Teflon Tape, made of Woven fiberglass coated with Teflon (PTFE) (polytetrafluoroethylene), with one side coated with silicone pressure sensitive adhesive(PSA) or acrylic adhesive, has easy release(super non stick) property, which is the perfect solution for many industries that need high temperature resistant, heat insulation, easy to use and easy to release, reusable and cost effectiveness properties.
Self Adhesive Teflon Tape, with Silicone or Acrylic adhesive
The adhesive side can be coated with Silicone or Acrylic adhesive according to the applications.
The Silicone pressure adhesive(PSA) coated PTFE fabric can continuous operating between -70°C and +260°C, and Acrylic adhesive coated PTFE tape has better initial adhesion(tacky), enhanced solvent resistance and a continuous service temperature range from -40°C to +170°C.
Both of these two adhesive will have no residual adhesive on the product after using.
Self Adhesive Teflon Tape with Acrylic Adhesive
Specification of Self Adhesive Teflon Tape
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC SELF ADHESIVE | ACRYLIC SERIE | ACRYLIC |
| PTFE Glass Fabric Self Adhesive Acrylic Series | ||||||
|---|---|---|---|---|---|---|
| Style | Standard Width(mm) Please ask for other widths | Backing Thickness (mm) | Total Thickness (mm) | Weight (g/m2) | PTFE Content(%) | Adhesion (N/cm) |
| YS7008AJY | 1000, 1250 | 0.08mm | 0.13mm | 155 | 68 | 3.5 |
| YS7011AJY | 1000, 1250 | 0.11mm | 0.16mm | 220 | 48 | 4 |
| YS7012AJY | 1000 | 0.12mm | 0.17mm | 245 | 59 | 4 |
| YS7013AJY-ESONE | 1000, 1250 | 0.13mm | 0.18mm | 270 | 60 | 4 |
| YS7018AJY | 1000, 1250 | 0.18mm | 0.23mm | 370 | 55 | 4.8 |
| YS7023AJY | 1000 | 0.23mm | 0.28mm | 500 | 60 | 5 |
Youngsun’s PTFE adhesive tape can be supplied as log rolls or slitted tapes. Standard log length is 50 meters per roll, standard width is 1000mm or 1250mm.
Other log width like 1500mm can be offered, and 30 meters or 100 meters per roll is all available.
Youngsun can also slit self adhesive PTFE tapes for you, any width you need can be cut.
PTFE adhesive sheet provide superior release properties and non-stick surfaces to allow machinery and equipment to run smoothly and efficiently
Release liner for Self adhesive Teflon Tape
For PTFE adhesive tape coated with PSA(Pressure sensitive silicone adhesive), the release liner will be PVC liner.
For PTFE adhesive tape coated with Acrylic, the release liner will be blue or white PE liner.
Youngsun also offer PTFE tape without release liner.
Quality of PTFE adhesive fabric
Youngsun can offer different quality grade of adhesive fabric.
Premium series, Standard series, Industrial series, Anti-static series or Acrylic series.
Properties of Self Adhesive Teflon Tape
★ Excellent dimensional stability and durability in high temperature.
★ Superior mold release property
★ operating continuous from 70°C and +260°C
★ Easy release, excellent Non stick
★ Flame resistant
★ High dielectric constant
★ Self Adhesive Teflon Tape can be Anti-static
PTFE Adhesive Tape maintains durability at high speeds and high temperatures while maintaining a long service life.

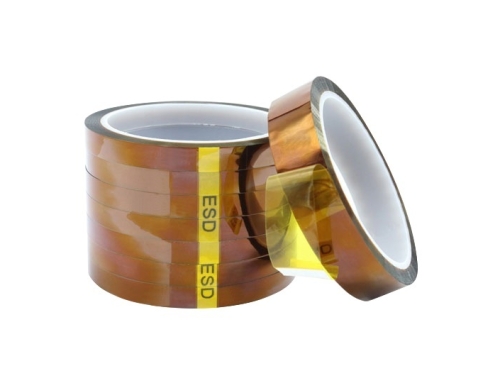

Click the word to access Anti-static Teflon Adhesive Tape.
