Teflon conveyor belt YS6002

Teflon conveyor belt YS6002

Teflon conveyor belt, long lasting jerky drying belt

Teflon conveyor belt is widely used in applications of high heat, from screen print dryers used in textile industry to extruded rubber products used in the automobile industry. Belts are designed for top performance and durability in high-heat environments.

Teflon Belt YS6002 is 1×1 mm black mesh fabric, this mesh belt can be anti-static by adding special formula. And due to the construction, this belt has good mechanical strength and is widely used in the drying industry, such as seafood honeysuckle, oat, cereal products, pet food, jerky and others.



Teflon conveyor belt YS6002

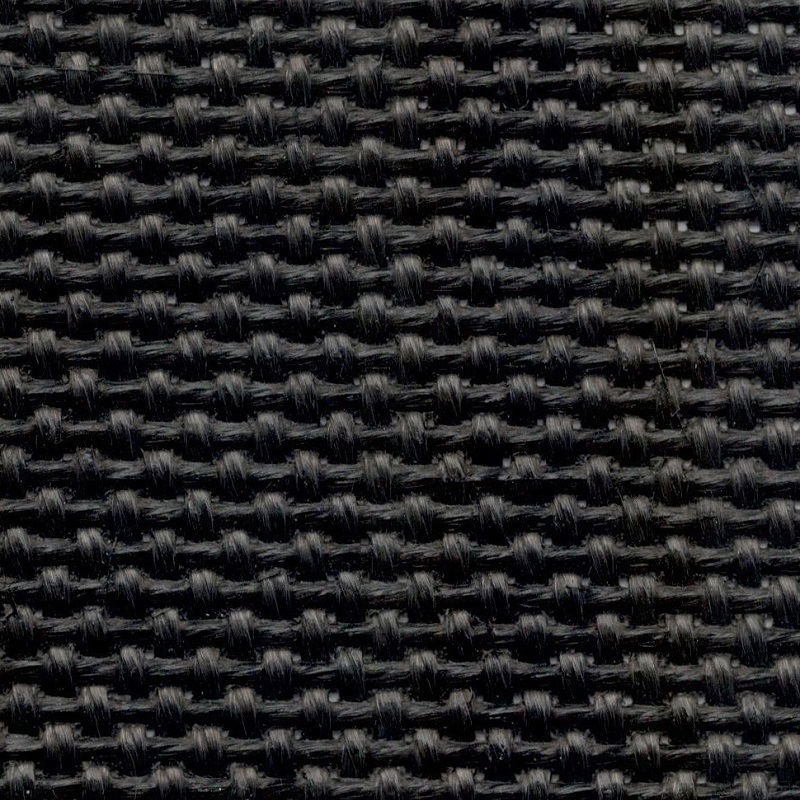

Teflon conveyor belt YS6002



Properties of PTFE mesh conveyor belt



  Controlled porosity, different mesh size from 1mm to 10mm could be made

  Resist almost all chemical, such as corrective agent and others

  Operating temperature range from -70 to 260 degrees

  Superior non-stick surface, easy to clean and release

  Any sizes could be made, the maximum width is 4m

  Exceptional strength and dimensional stability.

  Food grade, can touch food directly

  Light weight, easy to install

  Resist to UV, IR and HF

  High dielectric strength

  Could be Anti-static



Technical Data Sheet of Teflon conveyor belt YS6002



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIEPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 2050, 2600,2800, 3200,3650, 4000 mm39.5, 59, 81, 102.5, 110, 126,144, 158 inches
Mesh Size1 x 1 mm0.0393 x 0.0393 inches
Tensile Strength446 N/cm Warp255 lbs/inches Warp
330 N/cm Fill189 lbs/inches Fill
ColorBlackBlack
Temperature Resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS6002-ESONE

Click here to access YS6001 with 1x1mm brown color



For samples of Teflon conveyor belt, please feel free to contact us.

Other specification is also available, you can contact us for more information.



PTFE Mesh

PTFE Mesh is coated with Fluorocarbon resins used in the curing and chemically inert industry. It has exceptional strength and dimensional stability.



Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.



Different splices & joint & edge reinforcement



ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.

Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!



  PTFE Mesh Belt
Belt MaterialPTFE glass fabricPTFE Kevlar fabric
Belt JointBullnoseAlligatorPlastic
Belt EdgePTFE glass edgePTFE film edgePTFE Kevlar edge
Belt GuidePTFE guideKevlar guideSilicone guide
Belt PinStainless Steel PinPTFE PinAlligator Pin

2 Comments

  1. Colin Oloman 2020年9月5日 at am12:38 - Reply

    Hello,
    Your excellent website has introduced me to your open mesh PTFE/glass products YS6002 and YS6001.

    Please tell me the size of your samples and how I can obtain samples in Vancouver, Canada.

    Thanks

    • Ms. PTFE 2020年9月5日 at am10:56 - Reply

      Dear Colin, Thanks for your message 🙂
      The standard size of sample is A4 size, please inform us your delivery address and express account if A4 size is good for you. We can also offer larger size sample if needed.
