PTFE Conveyor Belt, perfect heat resistant solution for Drying

PTFE Conveyor Belt YS6001, with 1x1mm mesh size, it is perfect heat resistant solution for drying, printing, non-woven, apparel industry and others.

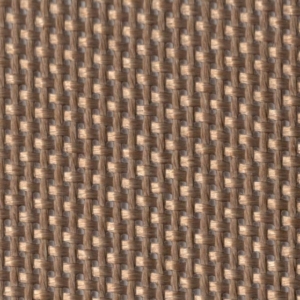

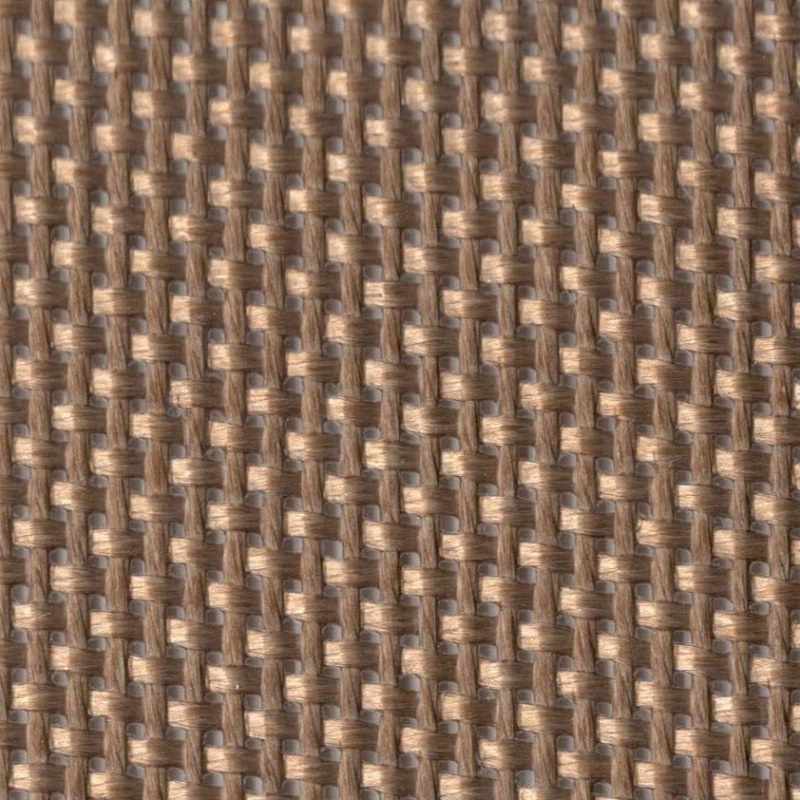

PTFE conveyor belts YS6001 1x1mm

PTFE conveyor belts YS6001 1x1mm



What is PTFE Mesh Belt?



PTFE Conveyor Belts is made of PTFE coated Fiberglass Fabrics, it is perfect for many drying application, screen print dryers, shrink tunnels and many other industries need high temperature.

For example, like T-shirts, Paper industry, Glass industry, Shoe or Apparel industry, Non-woven fabric, Print Dryers, Vinyl carpet, printed circuit boards and so on.



PTFE conveyor belt

PTFE conveyor belt



Properties of PTFE mesh belt:



  Controlled porosity, different mesh size from 1mm to 10mm could be made

  Resist almost all chemical, such as corrective agent and others

  Operating temperature range from -70 to 260 degrees

  Superior non-stick surface, easy to clean and release

  Any sizes could be made, the maximum width is 4m

  Exceptional strength and dimensional stability.

  Food grade, can touch food directly

  Light weight, easy to install

  Resist to UV, IR and HF

  High dielectric strength

  Could be Anti-static

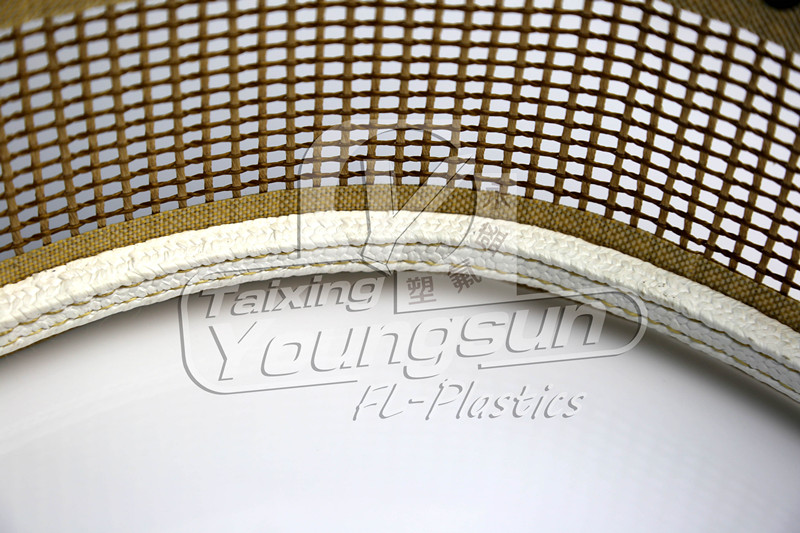

ptfe(Teflon) coated open mesh conveyor belt

ptfe(Teflon) coated open mesh conveyor belt



Technical Data of PTFE conveyor belt YS6001:



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIEPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 2050, 2600,2800, 3200,3650, 4000 mm39.5, 59, 81, 102.5, 110, 126,144, 158 inches
Mesh Size1 x 1 mm0.0393 x 0.0393 inches
Tensile Strength446 N/cm Warp255 lbs/inches Warp
330 N/cm Fill189 lbs/inches Fill
ColorBrownBrown
Temperature Resistance-73 to +260 °C-100 to +500 °F



Click here to download the spec of YS6001-ESONE



For samples of PTFE Conveyor Belt, please feel free to contact us.

Other specification is also available, you can contact us for more information.



Note:
Weight Tolerance mm= ±%5
All technical data of PTFE Conveyor Belt is based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.



Different splices & joint & edge reinforcement



ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.

Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!



  PTFE Mesh Belt
Belt MaterialPTFE glass fabricPTFE Kevlar fabric
Belt JointBullnoseAlligatorPlastic
Belt EdgePTFE glass edgePTFE film edgePTFE Kevlar edge
Belt GuidePTFE guideKevlar guideSilicone guide
Belt PinStainless Steel PinPTFE PinAlligator Pin
