ptfe belt YS6015

PTFE Belt, heat resistant and non stick PTFE open mesh conveyor belt

PTFE Belt YS6015 is coated with high quality PTFE resin, the basic material is woven fiberglass or aramid fabric (like Kevlar) or Nomax. Since Teflon conveyor belt is non stick & heat resistant, the main applications are screen printing, drying industry,packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.

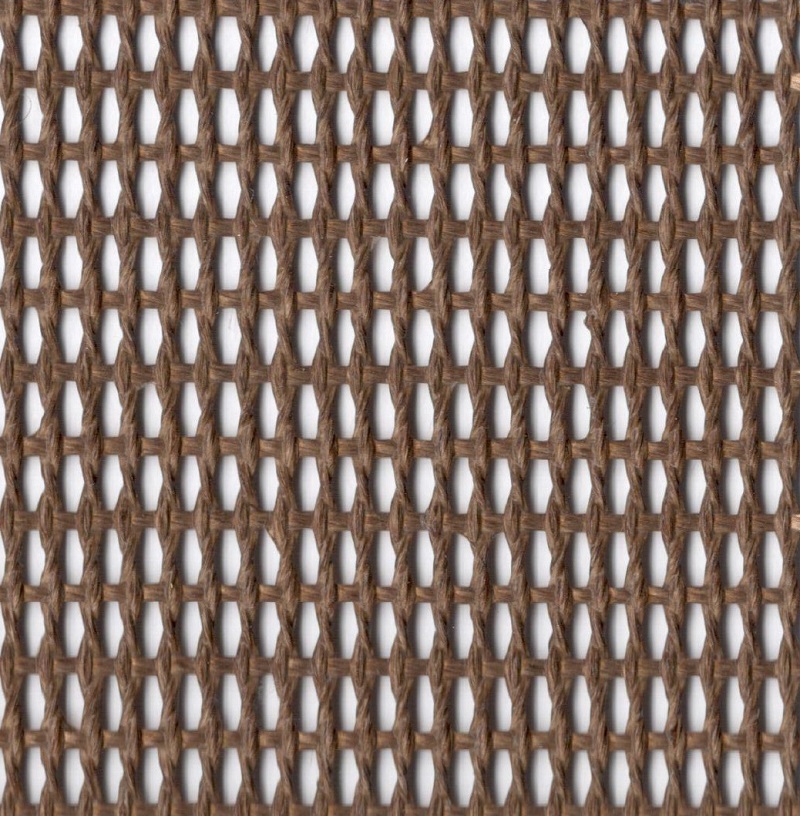

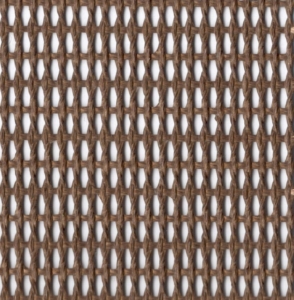

ptfe belt YS6015

ptfe belt YS6015



Property of PTFE coated fiberglass fabric



1) The maximum width is 4000mm wide.

2) PTFE Belt is non stick and is easy to release & clean

3) Heat resistant PTFE conveyor belt can continuous working from -73°C to 260°C

4) Non stick Teflon open mesh belt is chemical resistant

5) Teflon conveyor belt has high dimensional stability.



Features of PTFE Belt



   PTFE open mesh conveyor belt is light weight and cost effective, which is much better than metal conveyor belt, as PTFE belt is easy to replace and less expensive.

   Different mesh size is available according to the application request, from 1mm x 1mm, 2mm x 2.5mm, 2mm x 4mm, to 4mm x 4mm, 8mm x 8mm, 10mm x 10mm.

   ESONE can enhance the tensile strength for machines, which has small roller or has high speed or need high mechanical strength belt or transporting heavy items.

And the basic material can be fiberglass, Kevlar or Nomax.

   Teflon conveyor belt Workable for all heating systems, like electrical, RF or UV heating.



PTFE Belt

PTFE Belt



Applications of PTFE mesh belt



—Screen printing

Teflon belt is used to transport imprinted material though drying ovens and cooling oven, due to the non stick and heat resistant property.



—Packaging industry

Such as heat resistant conveyor belt for heat shrink packing, plastic bag sealing.



—Textile industry

Teflon conveyor belt is used for drying of polyester wadding and Without glue cotton, and textile lamination machines, textile printing industry etc.



—Wood processing industry

Drying the painting for the wood, or curing of plywood and so on will use Teflon conveyor belt.



—Drying industry

PTFE Belt is used for food processing, such as granola, flour, seafood and so on.



Teflon coated conveyor belt

Teflon coated conveyor belt



Technical Data Sheet of Teflon coated conveyor belt

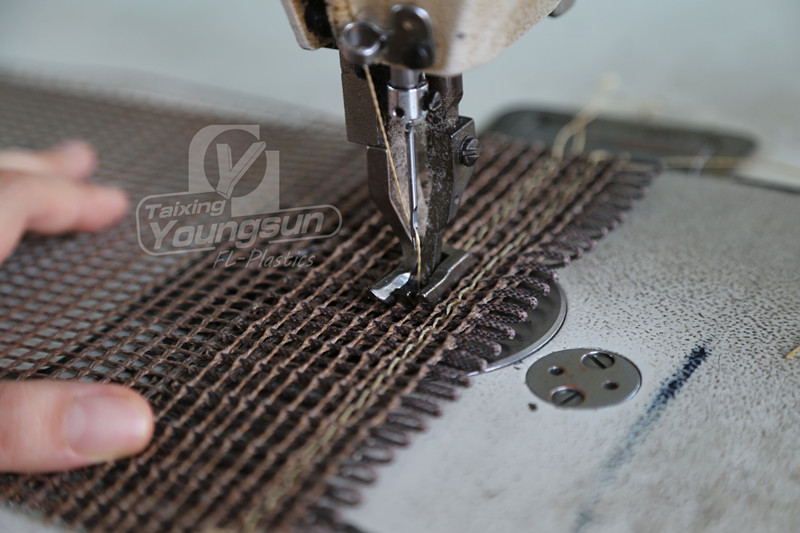

Esone Teflon open mesh conveyor belt has a good performance during operation due to the good quality. We have a widely range of sizes for customers choosing. Special requirement for edge reinforcement and belt joint can be made according to request.



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIESPTFE



PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 2050, 2600, 2800,
3200,3650, 4000 mm
39.5, 59, 81, 102.5, 110,
126, 144, 158 inches
Mesh Size2x2.5 mm2x2.5 mm
Tensile strength290 N/cm Warp166 lbs/inches Warp
400 N/cm Fill229 lbs/inches Fill
ColorBrownBrown
Temperature resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS6015-ESONE



For samples of PTFE Belt, please feel free to contact us.

Other technical data sheet is also available, please contact us for more information.



Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. Though these values are based on test results we believes to be reliable, but they are not to be constructed in any manner as warranties expressed.
