Teflon coated mesh belt YS6014

Teflon coated mesh belt YS6014

Teflon coated mesh belt from ESONE, great belt for UV drying machine.

Teflon coated mesh belt YS6014 is coated with high quality PTFE resin, the basic material is woven fiberglass or aramid fabric (like Kevlar or Nomax). Since Teflon conveyor belt is non stick & heat resistant, the main applications are screen printing, drying industry,packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.

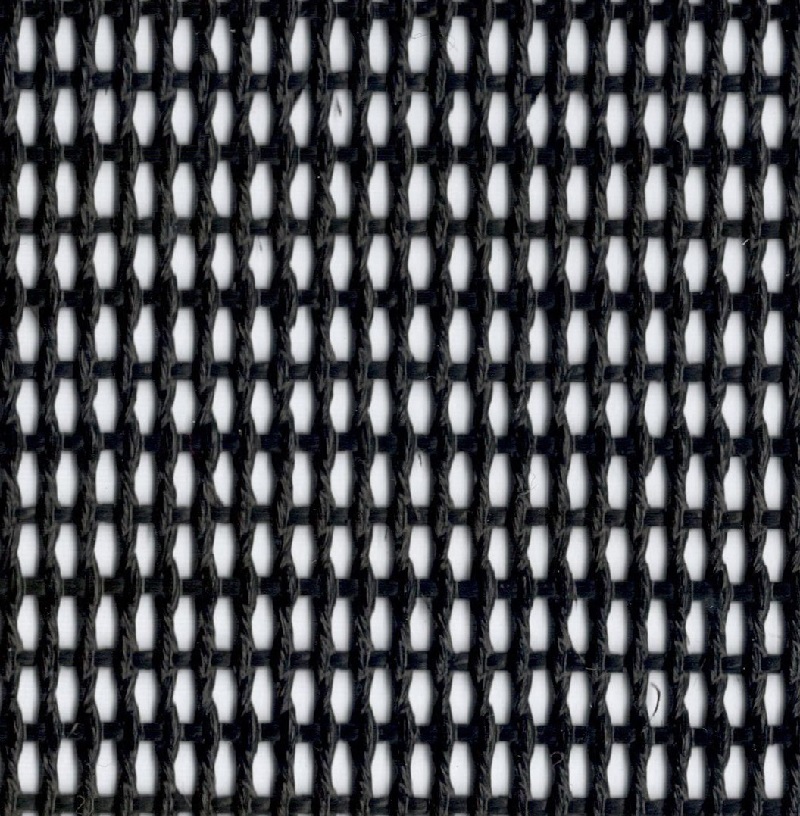

YS6014 is 2×2.5mm double weft, black color, is widely used for seafood processing, oat, oatmeal and other cereal product, jerky and other pets food, IR, HF or UV drying machines, non woven manufacturing industry and so on.

Teflon coated mesh belt YS6014

Teflon coated mesh belt YS6014

Property of Teflon coated mesh belt



1) The maximum width is 4000mm wide.

2) Teflon coated mesh belt is non stick and is easy to release & clean

3) Heat resistant PTFE conveyor belt can continuous working from -73°C to 260°C

4) Non stick Teflon open mesh belt is chemical resistant

5) Teflon conveyor belt has high dimensional stability.



Teflon coated fiberglass cloth

Teflon coated fiberglass cloth



Features of PTFE mesh Belts



   PTFE open mesh conveyor belt is light weight and cost effective, which is much better than metal conveyor belt, as Teflon mesh conveyor belt is easy to replace and less expensive.

   Different mesh size is available according to the application request, from 1mm x 1mm, 2mm x 2.5mm, 2mm x 4mm, to 4mm x 4mm, 5mm x 5mm, 8mm x 8mm, 10mm x 10mm.

   ESONE can enhance the tensile strength for machines, which has small roller or has high speed or need high mechanical strength belt or transporting heavy items.

And the basic material can be fiberglass, Kevlar or Nomax.

   Teflon conveyor belt Workable for all heating systems, like electrical, RF or UV heating.



Applications of PTFE mesh belt



—Screen printing

Teflon belt is used to transport imprinted material though drying ovens and cooling oven, due to the non stick and heat resistant property.



Teflon conveyor belt

Teflon conveyor belt



—Packaging industry

Such as heat resistant conveyor belt for heat shrink packing, plastic bag sealing.



PTFE belt for Heat Shrink Packaging

PTFE belt for Heat Shrink Packaging



—Textile industry

Teflon conveyor belt is used for drying of polyester wadding and Without glue cotton, and textile lamination machines, non woven fabric manufacturing, textile printing industry etc.

Non woven fabric drying belt

Non woven fabric drying belt





—Wood processing industry

Drying the painting for the wood, or curing of plywood and so on will use Teflon conveyor belt.



—Drying industry

Teflon coated mesh belt is used for food processing, such as granola, jerky, flour, seafood and so on.

ESONE mesh belt is available for UV, IR, HF drying system.



PTFE Conveyor belt for drying

PTFE Conveyor belt for drying



–Laminated glass manufacturing

PTFE mesh is used as release sheet for laminated glass manufacturing due to the non stick property and high porosity.

Laminated glass vacuum bag



Technical Data Sheet of Teflon coated belt



Esone Teflon open mesh conveyor belt has a good performance during operation due to the good quality. We have a widely range of sizes for customers choosing. Special requirement for edge reinforcement and belt joint can be made according to request.



ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIESPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 1800, 2000, 3000, 3600 mm39.5, 59, 71, 78.7, 118, 142 inches
Mesh Size2 x 2.5 mm0.0787 x 0.0984 inches
Tensile Strength290 N/cm Warp166 lbs/inches Warp
400 N/cm Fill229 lbs/inches Fill
ColorBlackBlack
Temperature Resistance-73 to +260 °C-100 to +500 °F



Click here to download the TDS of YS6014-ESONE

Click here to access 2mm x2.5mm brown PTFE mesh fabric YS6015



For samples of PTFE Belt, please feel free to contact us.

Other technical data sheet is also available, please contact us for more information.



Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. Though these values are based on test results we believes to be reliable, but they are not to be constructed in any manner as warranties expressed.
