PTFE Coated Open Mesh Conveyor Belt

PTFE Coated Open Mesh Conveyor Belt

PTFE Coated Open Mesh Conveyor Belt, replacing steel conveyor belt

PTFE Coated Open Mesh Conveyor Belt, with a full range of open mesh belting products specifically for textile dryers. Our open mesh Belts are widely used for drying of screen Printed and dyed textiles at higher speed and higher temperature.

Teflon belt mesh sizes of 4X4 mm, 8×8 mm and 10×10 mm provide a high percentage of open surface area, creating maximum airflow and sufficient operation with minimum heat loss. Width and length stability of the belts are retain over full range of operating temperature.

PTFE Coated Open Mesh Conveyor Belt

PTFE Coated Open Mesh Conveyor Belt



Properties of Open mesh Teflon belt



  Controlled porosity, different mesh size from 1mm to 10mm could be made

  Resist almost all chemical, such as corrective agent and others

  Operating temperature range from -70 to 260 degrees

  Superior non-stick surface, easy to clean and release

  Any sizes could be made, the maximum width is 4m

  Exceptional strength and dimensional stability.

  Food grade, can touch food directly

  Light weight, easy to install

  Resist to UV, IR and HF

  High dielectric strength

  Could be Anti-static



Full range of mesh sizes of PTFE belt



PTFE Glass - open mesh fabric series
StyleStandard Width(mm)
Please ask for other widths
Mesh Size
(mm)
Weight
(g/m2)
WeftColorTensile Strength Warp/Fill (N/cm)
YS6001-ESONE1000, 1500, 2050, 2600,2800, 3200,3650, 40001 x 1//Brown446/330
YS6002-ESONE1000, 1500, 2050, 2600,2800, 3200,3650, 40001 x 1//Black446/330
YS6003-ESONE1000, 1500, 2050, 2500,2750, 3200, 3350,3600, 40004 x 4460Single weftBlack320/434
YS6004-ESONE1000, 1500, 2050, 2500,2750, 3200, 3350,3600, 40004 x 4460Single weftBrown320/434
YS6008-ESONE1000, 1500, 1700, 2050,2500, 2700, 3200, 3400,3600, 3800, 40004 x 4580Double weftBrown360/500
YS6011-ESONE1000, 1500, 2500, 2700,3200, 3800, 40004 x 4580Double weftWhite330/470
YS6012-ESONE1000, 1500, 1700, 2050,2500, 2700, 3200, 3400,3600, 3800, 40004 x 4580Double weftBlack360/500
YS6013-ESONE1000, 1500, 2000, 300010 x 10//Brown220/360
YS6014-ESONE1000, 1500, 1800, 2000,3000, 36002 x 2.5//Black290/400
YS6015-ESONE1000, 1500, 1800, 2000,3000, 36002 x 2.5//Brown290/400
YS6016-ESONE1000, 1400, 2000, 28002 x 4//Brown330/470
YS6017-ESONE1000, 1500, 2000,
3600, 4000
5 x 5//Black320/434
YS6018-ESONE1000, 1400, 2000,28008 x 8//Brown350/480
PTFE Glass - Stronger fiberglass series
StyleStandard Width(mm)
Please ask for other widths
Mesh Size
(mm)
Weight
(g/m2)
FiberglassWeftColorTensile Strength Warp/Fill (N/cm)
YS6001S-ESONE1000, 1500, 2000, 30001 x 1/Stronger fiberglass/Brown536/410
YS6008S-ESONE1000, 1400, 2500, 2600,2700, 3300, 3400, 3700,3800, 40004 x 4720Stronger fiberglassDouble weftBrown390/580
YS6008S-S-ESONE1000, 1350, 27004 x 41180Stronger fiberglassDouble weftBrown480/940
YS6016S-ESONE1000, 1700, 1800, 1900, 2400, 2600, 2800, 3400, 3600, 38002 x 4/Stronger fiberglass/Brown410/590
YS6030-ESONE1000, 1500, 1700, 2050,2700, 3200, 3400,3600,3800, 40002 x 2660Stronger fiberglassTriple weftBrown680/620
YS6031-ESONE1000, 1500, 2050, 2700,3200, 3600, 3800, 40002 x 2660Stronger fiberglassTriple weftBlack680/620
YS6032-ESONE1000, 1500, 2050, 2700,3200, 40002 x 2660Stronger fiberglassTriple weftRed680/620
PTFE Kevlar/Glass - Kevlar/Glass series
StyleStandard Width(mm)
Please ask for other widths
Mesh Size
(mm)
Warp/WeftColorTensile Strength Warp/Fill (N/cm)
YS6007 Kevlar-ESONE1000, 1700, 2000, 2700,3400, 40004 x 4Kevlar/GlassBrown380/900
YS6200Bullnose Joint-ESONE120, 150, 170, 190, 210,250, 3004 x 4Kevlar/GlassBrown/
YS6201Bullnose Joint-ESONE120, 150, 170, 190, 210,250, 3004 x 4Kevlar/GlassBlack/



Applications of PTFE Coated Open Mesh Conveyor Belt



-Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.

-Shrinking machine for garment fabric, high-frequency and UV dryer.

-Conveyor belt for hot-air dryer, various of food baking, quick-frozen machines.

-Oiling machine for paper glazing and waxing, plant engineering. -Separating sheet for hardboard production etc.

-Release mesh for laminated glass vacuum bag

-Grill mesh for non stick and easy clean BBQ grilling



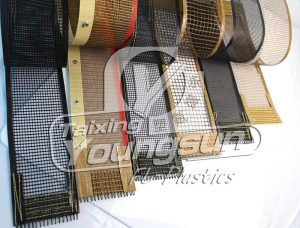

ptfe(Teflon) coated open mesh conveyor belt

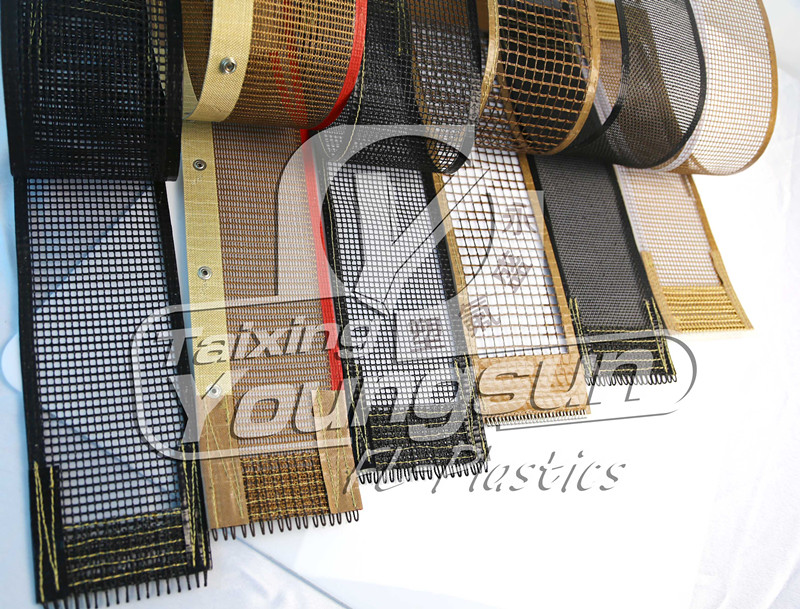

ptfe(Teflon) coated open mesh conveyor belt



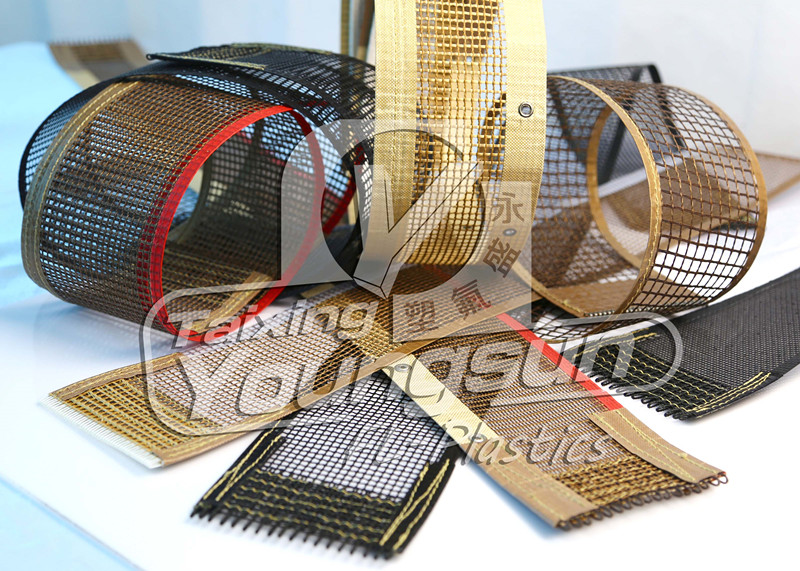

Different splices & joint & edge reinforcement



ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.



To enhance the tracking and belt life, ESONE offers various styles of edging:

PTFE film Edge Reinforcement (Heat-Sealed)

PTFE-Glass Edge Reinforcement (Heat-Sealed)

PTFE-Kevlar Edge Reinforcement (Heat-Sealed)

To assure the best performance and accurate tracking, we recommend that wherever possible, conveyor belts be ordered with splices.

We offer all the standard splices. Please call our technical service department to discuss which splice would be best for your specific application.

Overlap splice  Butt splice  Alligator/Clipping splice Castellated Splice Bullnose Splice



  PTFE Mesh Belt
Belt MaterialPTFE glass fabricPTFE Kevlar fabric
Belt JointBullnoseAlligatorPlastic
Belt EdgePTFE glass edgePTFE film edgePTFE Kevlar edge
Belt GuidePTFE guideKevlar guideSilicone guide
Belt PinStainless Steel PinPTFE PinAlligator Pin
