PTFE Removable Insulation Jackets

PTFE Removable Insulation Jackets

Removable Insulation Jackets, insulated protection for pipeline.

Removable Insulation Jackets, made of PTFE or Silicone impregnated fiberglass fabric, coated on both sides or one side. It’s used as the outer protection for the insulation blanket, as this fabric is anti-aging, anti-environment, anti-corrosion, non stick and heat resistant. The working temperature of PTFE coated fabric is up to 600F, but the maximum temperature of silicone impregnated fabric is 500F.



What is Thermal Insulation Jacket?



Youngsun YS9038HD is PTFE impregnate(coated) fiberglass fabric, which is made into Removable Insulation Blankets for environmental and chemical resistant.

The basic fabric is satin weaving, which ensure the high tensile strength of the jacket, and PTFE coating is flexible in order for making jackets with different shapes and sizes.



Removable insulation jackets

Removable insulation jackets



Why use Removable Insulation Jackets?



This Insulation jacket will lower the thermal energy waste greatly, and also protect the equipment from any chemical corrosion.

This Insulation blanket is cost-effective, energy-save, safe, and reusable solution for all thermal purposes, such as pipeline, valves, filters, exchange, pump systems and so on.



This PTFE impregnated fabric is different from normal PTFE fabric, it is much more flexible and get a better dimensional stability and durability.

The fabrics can be single side or double side coated as required. Color can be red, yellow grey, white…etc.



The advantages of PTFE coated fabric for Insulation Blankets.



– flame resistant

– Environmental resistant

– Chemical resistant

– UV resistant

– Almost smokeless

– Non-stick

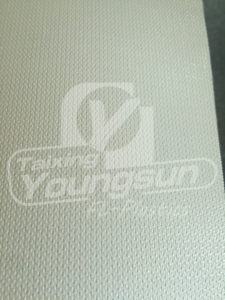

Insulation Jacket

Insulation Jacket



The Data sheet of removable insulation jacket



Youngsun could make the thermal insulation blankets into Gray, White, Yellow, Black or any other colors.

And the PTFE fabric could be coated on one side or both side.

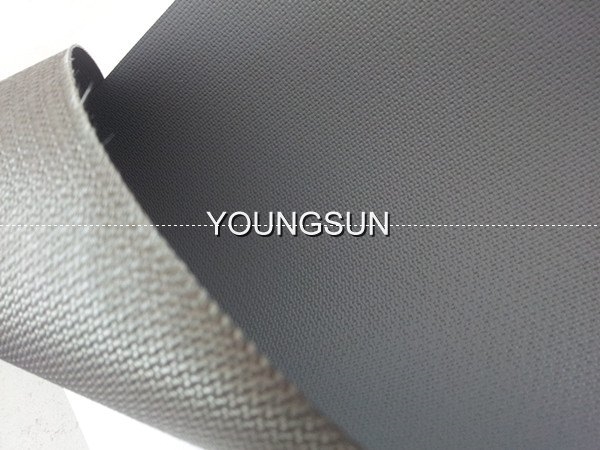

For One side PTFE impregnated Fabric, the weight would be 16.5 oz/sy ± 10%(560 g/m2), and thickness is 0.016″  ± 10% (0.38mm)

For Both side PTFE impregnated Fabric, the weight would be 18 oz/sy ± 10%(650 g/m2), and thickness is 0.018″ ± .001″ (0.40mm)

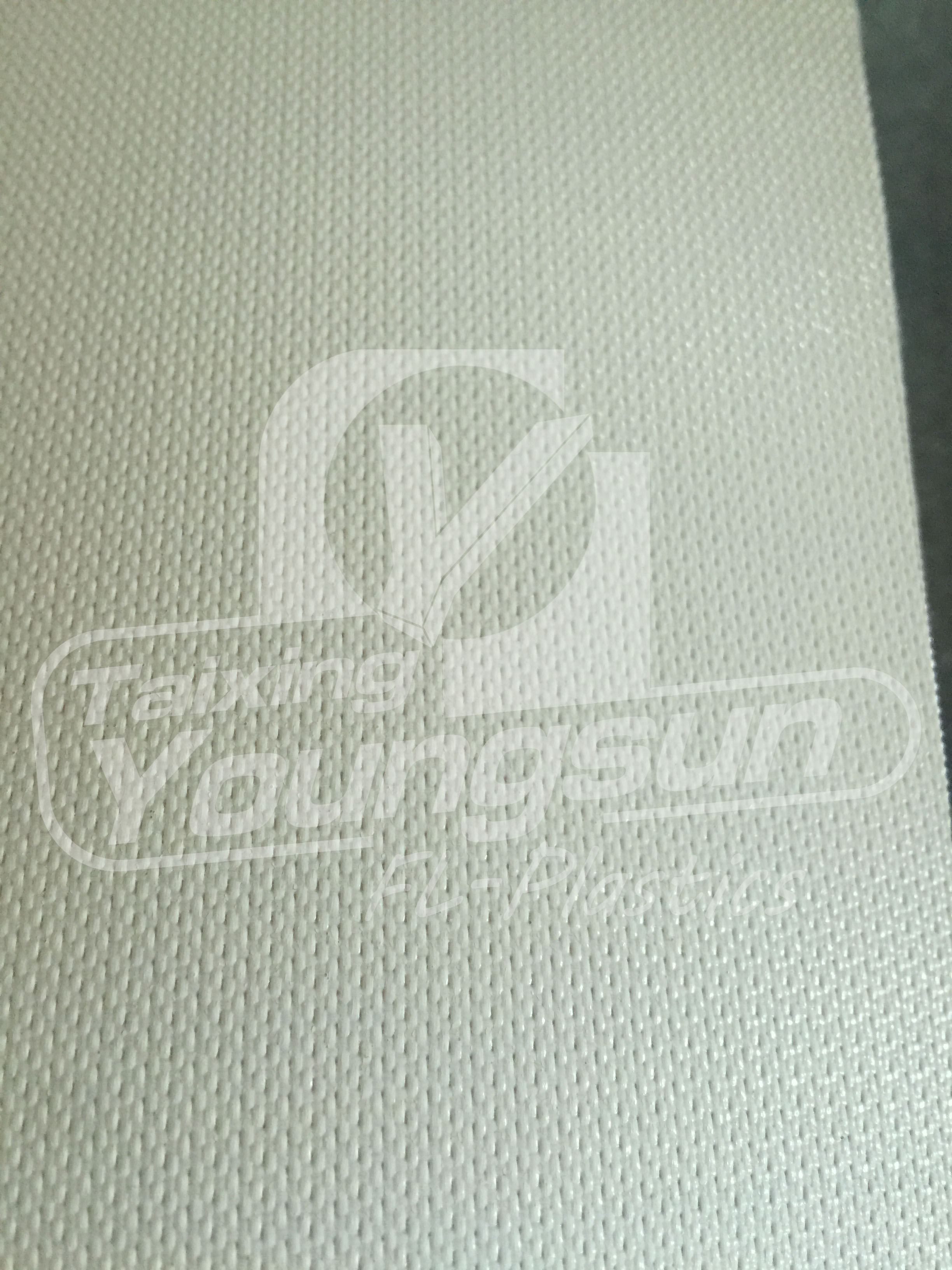

thermal blanket insulation

thermal blanket insulation



Application for Thermal insulation jacket



Removable Insulation Jackets are designed for Pumps, pipeline, valves, freeze protection and so on.
