PTFE Adhesive Sheet YS7018AJ

PTFE Adhesive Sheet YS7018AJ

PTFE Adhesive Sheet, high PTFE content Premium Series

PTFE Adhesive Sheet Premium series, is using high PTFE content Teflon coated fabric as basic material, and chemical treated on one side for coating Silicone pressure sensitive adhesive on the back. This PTFE self adhesive fabric has better property in release, dielectric strength and lifetime.





Self Adhesive PTFE coated fabric has a yellow PVC liner on the back, which can protect the adhesive surface and to ease distinction and use.

Any width or length can be cut according to the applications,  such as heat sealer machines, covering elements, impulse wires, L-Bar sealers, Wire wrap insulation and harness protection.



ptfe adhesive sheet

PTFE adhesive sheet with pressure sensitive silicone adhesive tapes provide superior release properties and non-stick surfaces to allow machinery and equipment to run smoothly and efficiently



Property of Teflon coated fiberglass tape



Adhesive Backed Teflon Sheet has a non stick Teflon coated surface and heat resistant adhesive, like silicone PSA or acrylic adhesive, which allows for easy release, superior mechanical strength, long lifetime and dimensional stability.



PTFE coated tape with silicone PSA is the best solution for high request applications, which has requirement for continuous and efficient processing, excellent bonding strength and long lasting performance at high temperatures (up to 500˚F / 260˚C).



The properties of PTFE coated tapes with silicone PSA is as follows.



  Excellent dimensional stability and durability in heat.

  Superior easy mold release property, excellent Non stick

  operating continuous from 70°C and +260°C

  Flame resistant

  High dielectric constant

  Good mechanical strength



Customized PTFE coated fiberglass tape

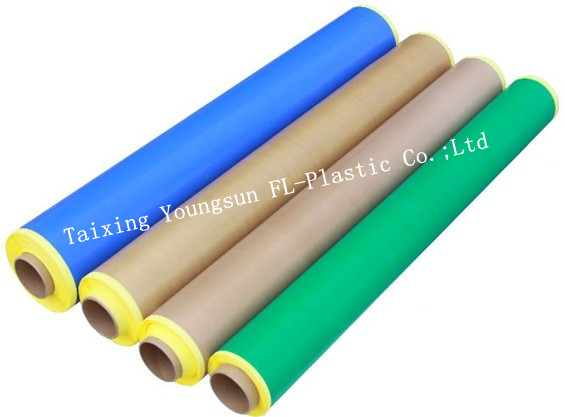

  Custom color of Teflon coated tape

PTFE coated tape can be made into many colors, like Dark brown, light brown, green, red, blue and so on.

This will not affect the quality of PTFE coated fabric. Color is used to distinguish PTFE fabric.

High temperature Teflon tape

High temperature Teflon tape



  Custom adhesive

The backed adhesive can be Silicone PSA or Acrylic adhesive, according to the application request or purchase budget.



Self Adhesive Teflon Tape with Acrylic Adhesive

Self Adhesive Teflon Tape with Acrylic Adhesive



  Custom tensile strength

Tensile strength of PTFE Adhesive Sheet can be enhanced for high request applications like wind turbine blades or manufacturing of composite aircraft components



PTFE Mold release tape

PTFE Mold release tape

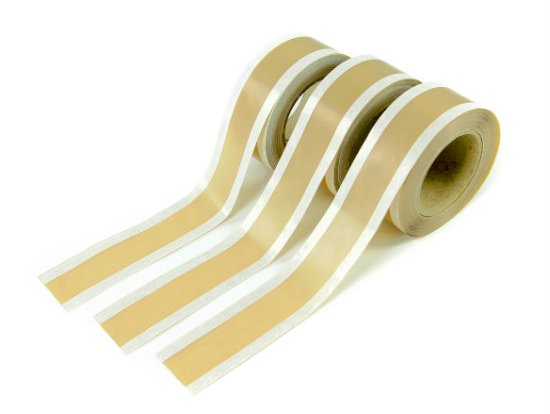

 Made into PTFE zone tapes

Esone can offer PTFE Zone Tapes, which has custom sized adhesive strip on both edges, and the center is non adhesive as Free Zone.



PTFE Zone Tape

PTFE Zone Tapes are available for applications where it is not desirable for adhesive to come in contact with a heating element.

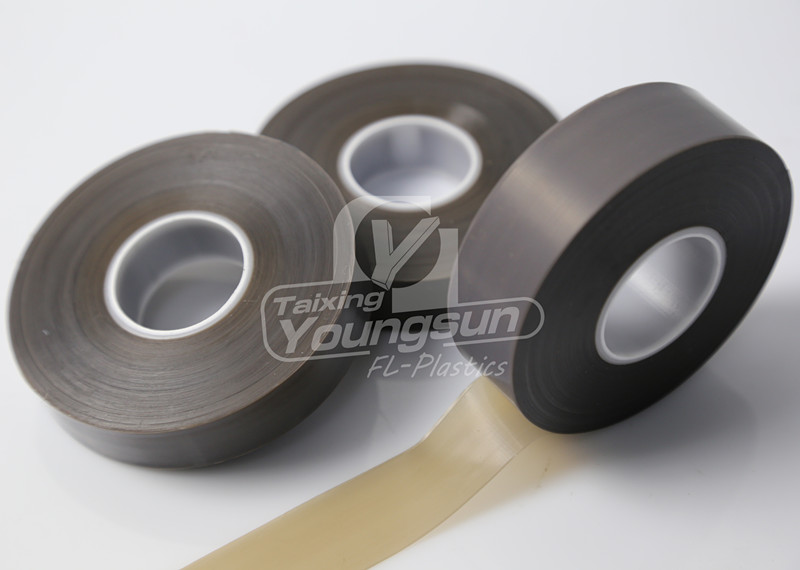

Offering Skived PTFE Film adhesive tapes — Esone also produce Teflon skived film with Silicone adhesive, which is pure PTFE film has excellent elongation.



PTFE Skived Adhesive Tape

PTFE Skived Adhesive Tape



Technical data sheet of PTFE Adhesive Sheet



ProductProduct CategoryCoating
PTFE GLASS FABRIC SELF ADHESIVEPREMIUM SERIESILICONE PSA



PropertiesMetricImperial
Standard width
Please ask for other widths
1000 mm39.5 inches
Backing Thickness
PTFE glass
0.18 mm0.0071 inches
Total Thickness
PTFE glass and Silicone PSA
0.23 mm0.0091 inches
Baking weight
PTFE glass
370 g/m² 10.9 oz/yd²
Tensile Strength
PTFE glass
320 N/cm Warp183 lbs/inches Warp
302 N/cm Fill172.5 lbs/inches Fill
Adhesion5.6 N/cm51 oz/inches
Temperature resistance-73 to +260 °C-94 to +500 °F



Click here to download the TDS of YS7018AJ-ESONE

For samples of PTFE adhesive sheet,  please feel free to contact us.
Other Width is also available, you can contact us for more information

Note:
Thickness Tolerance mm= ±%5
