Teflon coated Fiberglass Tape For FPCB Manufacturing

////Teflon coated Fiberglass Tape For FPCB Manufacturing

Teflon coated Fiberglass Tape For FPCB Manufacturing

Teflon coated Fiberglass Tape, heat resistant tape for FPCB CVL Lamination

Teflon coated Fiberglass Tape is using PTFE coated fiberglass fabric as basic material, and coated with Silicone pressure sensitive adhesive (PSA) on the back. The PTFE(Teflon)(Polytetrafluoroethylene) coating surface provides excellent release property, and the adhesive side will make sure the stable adhesion in high temperature below 260 degrees.

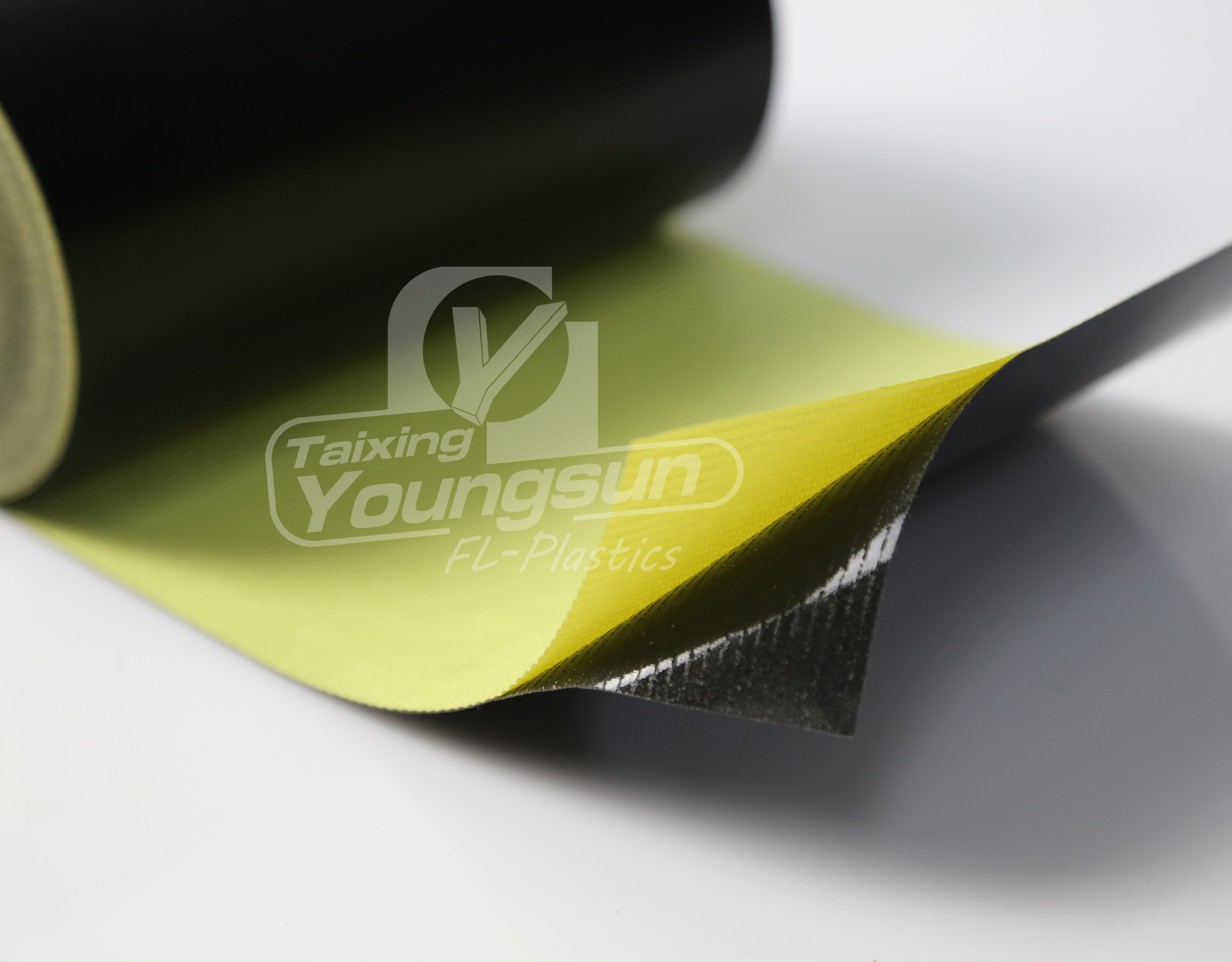

Teflon coated Fiberglass Tape has a yellow PVC liner on the back, which can protect the adhesive surface and to ease distinction and use.

ESONE can also cut the adhesive tape into any width, making small adhesive tapes for PCB manufacturing(CVL Lamination), heat sealer machines, covering elements, impulse wires and L-Bar sealers.



Teflon coated Fiberglass Tape

Teflon coated Fiberglass Tape



Property of PTFE Coated Heat Resistant Tape



Silicone pressure adhesive tape contain non stick PTFE surface and heat resistant adhesive that allow for easy release, superior mechanical strength, long lifetime and dimensional stability.



PTFE coated tape with silicone PSA is the best solution for applications, which has requirement for continuous and efficient processing, excellent bonding strength and long lasting performance at high temperatures (up to 500˚F / 260˚C).



The properties of PTFE coated tape with silicone PSA is as follows.



  Excellent dimensional stability and durability in heat.

  Superior easy mold release property, excellent Non stick

  operating continuous from -73°C and +260°C

  Flame resistant

  High dielectric constant

  Good mechanical strength



Why use Teflon coated Fiberglass Tape for FPCB manufacturing

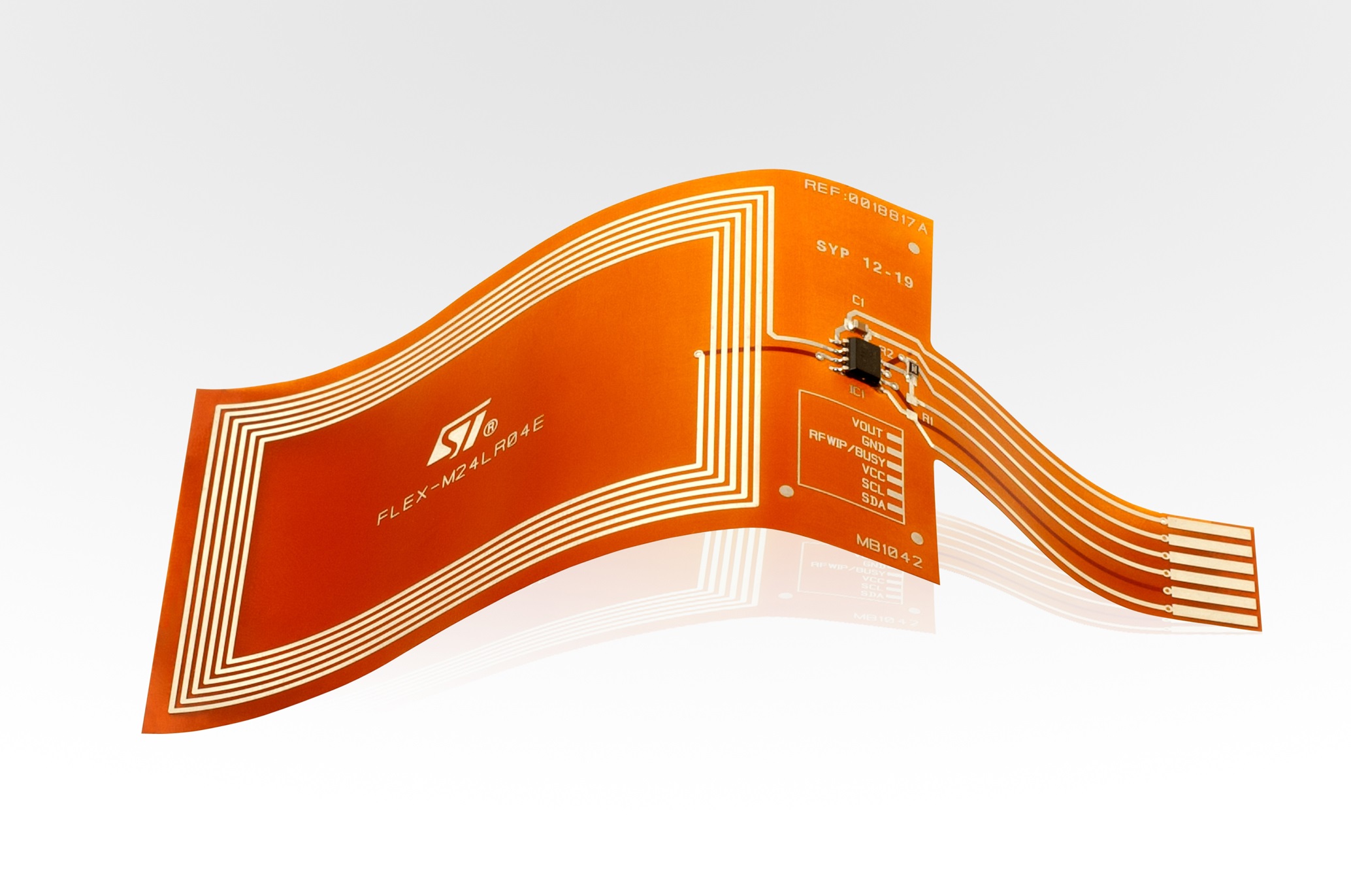

FPCB is Flexible printed circuit boards, which is a modern flexible electronic equipment types, using in printer, phones, cameras and home devices. Flex circuit is more smaller, reliable and dynamic than rigid circuit boards



Teflon Adhesive Tape for FPCB manufacturing

Teflon Adhesive Tape for FPCB manufacturing



ESONE PTFE coated fabrics with or without adhesive is the product of choice for CVL (coverlay) lamination, due to the excellent release property, high dielectric strength and mechanical strength.

Our very smooth, easy release and defect-free PTFE coated fabric, is designed to enable maximum output in highly automatic process and can be also used as releasing layer and in quick lamination.



Product choice of Teflon Adhesive Sheet



1)  PTFE coated fabric with adhesive, original brown

Brown PTFE fabric is the most common tape for Electrical industry, this fabric has high Teflon content for easy release property, with back side coated with Silicone pressure sensitive adhesive or Acrylic adhesive.



Tear Resistant Teflon coated Tape

Tear Resistant Teflon coated Tape



2) Conductive (Anti-static) Teflon coated Fiberglass Tape

Black PTFE adhesive tape is made into anti-static by adding carbon into PTFE coating, which is designed for insulating PCB from breakdown.



Anti static heat resistant adhesive tape

Anti static heat resistant adhesive tape



3) Custom color Adhesive Backed Teflon Sheet

Teflon Adhesive Sheet can be coated into blue/green/white/red and any other colors, aim to offer a fool-proofing design during the CVL lamination of PCB manufacturing.

In this case, PTFE coated fabric with adhesive will be easily distinguished during production.



Blue PTFE Tape

Blue PTFE Tape



Specification of high temperature Teflon tape



Teflon coated Fiberglass Tape maintains durability at high speeds and high temperatures while maintaining a long service life. Frequently used in heat sealers, blister formation and form-fill-seal equipment as well as lining of guide rails, chutes and slides. Acrylic adhesive is also available, although silicone adhesive is our standard.



Related TDS of PTFE tape Premium series YS7008AJ-ESONEYS7013AJ-ESONEYS7015AJ-ESONE

Related TDS of PTFE tape Industrial series YS7011AJ-ESONE

Related TDS of PTFE tape Anti-static series YS7008BJ-ESONEYS7011BJ-ESONE



Click here to access Self adhesive Teflon tape Premium Series
